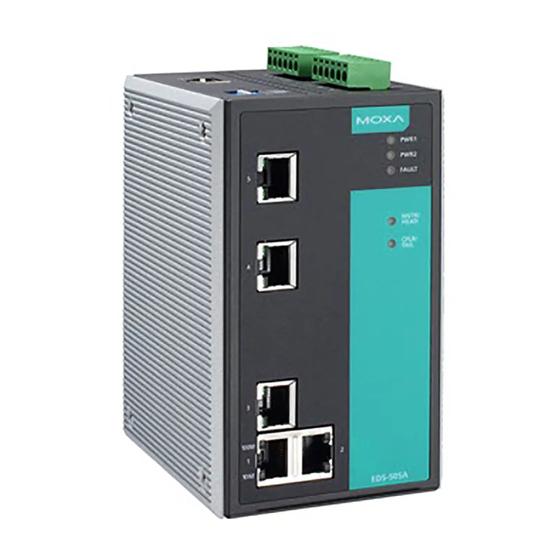

- Page 1 EDS-505A/508A Hardware Installation Guide Moxa EtherDevice™ Switch Ninth Edition, April 2014 2014 Moxa Inc. All rights reserved. P/N: 1802005000018...
-
Page 2: Package Checklist
Package Checklist The Moxa EDS-505A/508A is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. • 1 Moxa EtherDevice Switch (EDS-505A or EDS-508A) • Hardware Installation Guide •... - Page 3 Panel Layout of EDS-505A/508A (Standard) 1. Grounding screw 2. Terminal block for power input PWR1/PWR2 and relay output 3. Heat dissipation orifices 4. Console port 5. DIP switches 6. Power input PWR1 LED 7. Power input PWR2 LED 8. Fault LED 9.
- Page 4 Panel Layout of EDS-505A/508A (SC-type) NOTE: The appearance of EDS-505A-SS-SC is identical to that of EDS-505A-MM-SC. The appearance of EDS-508A-SS-SC is identical to that of EDS-508A-MM-SC. 1. Grounding screw 2. Terminal block for power input PWR1/PWR2 and relay output 3. Heat dissipation orifices 4.
- Page 5 Panel Layout of EDS-505A/508A (ST-type) 1. Grounding screw 2. Terminal block for power input PWR1/PWR2 and relay output 3. Heat dissipation orifices 4. Console port 5. DIP switches 6. Power input PWR1 LED 7. Power input PWR2 LED 8. Fault LED 9.
-
Page 6: Mounting Dimensions
Mounting Dimensions Unit = mm (inch) - 6 -... -
Page 7: Din-Rail Mounting
DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the EDS-505A/508A when you take it out of the box. STEP 1: STEP 2: Insert the top of the DIN-Rail into The DIN-Rail attachment unit will the slot just below the stiff metal snap into place as shown. -
Page 8: Atex Information
ATEX Information 1. Certificate number DEMKO 08 ATEX 0712961X 2. Ambient range (-40°C ≤ Tamb ≤ 75°C) 3. Certification string (Ex nA nC IIC T4 Gc) 4. Standards covered ( EN60079-0:2012, EN60079-15:2010) 5. The conditions of safe usage: • These products must be mounted in an IP54 enclosure. •... -
Page 9: Grounding The Etherdevice Switch
Grounding the EtherDevice Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. -
Page 10: Wiring The Digital Inputs
ATTENTION Before connecting the EDS to the DC power inputs, make sure the DC power source voltage is stable. Wiring the Digital Inputs The EDS-505A/508A unit has two sets of digital inputs, DI 1 and DI 2. Each DI consists of two contacts of the 6-pin terminal block connector on the EDS’s top panel. -
Page 11: 100Basefx Ethernet Port Connection
RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring 100BaseFX Ethernet Port Connection Remember to connect the Tx (transmit) port of device I to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II. -
Page 12: Turbo Ring Dip Switch Settings
ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the Laser Beam. Turbo Ring DIP Switch Settings EDS-505A/508A series are plug-and-play managed redundant Ethernet switches. The proprietary Turbo Ring protocol was developed by Moxa to provide better network reliability and faster recovery time. -
Page 13: Led Indicators
NOTE You must enable the Turbo Ring function first before using the DIP switch to active the Master and Coupler functions. NOTE If you do not enable any of the EDS-505A/508A switches to be the Ring Master, the Turbo Ring protocol will automatically choose the EDS-505A/508A with the smallest MAC address range to be the Ring Master. -
Page 14: Auto Mdi/Mdi-X Connection
Color State Description TP port’s 100 Mbps link is active. 100M GREEN Blinking Data is being transmitted at 100 Mbps. (TP) TP Port’s 100 Mbps link is inactive. FX port’s 100 Mbps is active. 100M GREEN Blinking Data is being transmitted at 100 Mbps. (FX) FX port’s 100 Mbps is inactive. - Page 15 Flow Control IEEE802.3x flow control, back pressure flow control Interface RJ45 Ports 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection Fiber Ports 100BaseFX ports (SC/ST connector) Console RS-232 (RJ45) LED Indicators PWR1, PWR2, FAULT, 10/100M (TP port), 100M (Fiber Port), MSTR/HEAD and CPLR/TAIL Relay Contact...
- Page 16 Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) Regulatory Approvals Safety UL60950-1, UL 508, CSA C22.2 No. 60950-1, EN60950-1 Hazardous Location UL/cUL Class I, Division 2, Groups A, B, C, and D. ATEX Zone 2, Ex nA nC IIC T4 Gc FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), Level 2 EN61000-4-3 (RS), Level 3...
