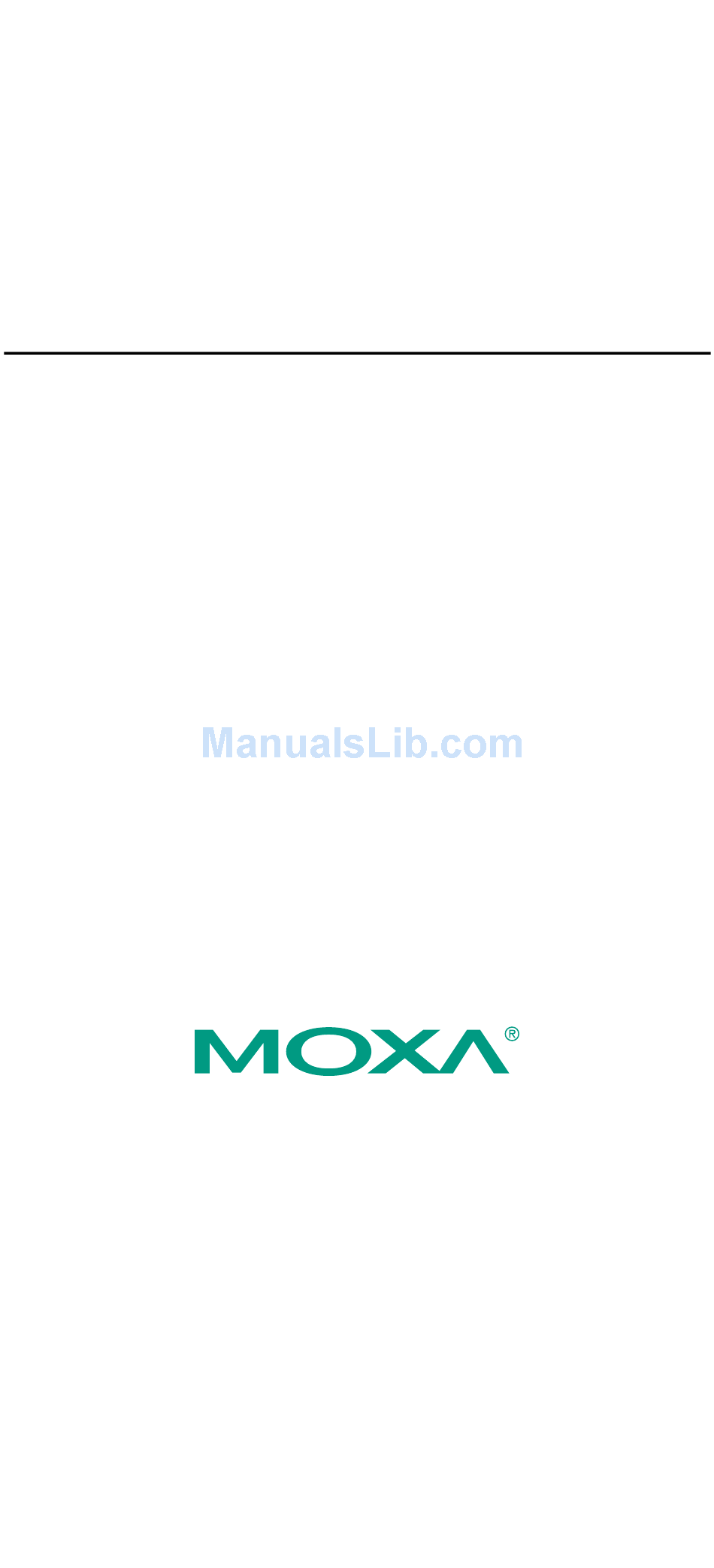

- Page 1 Moxa EtherDevice™ Switch EDS-600 Series Hardware Installation Guide First Edition, August 2009 © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City, Taipei, Taiwan, R.O.C. TEL: +886-2-8919-1230 P/N: 1802006000010...
-
Page 2: Package Checklist
Package Checklist The Moxa EDS-600 series is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. 1 EDS-600 EtherDevice Switch Hardware Installation Guide CD-ROM with User’s Manual and Windows utility... -
Page 3: Front View
Panel Views of the EDS-608 FRONT VIEW REAR VIEW Front Panel: System Status LEDs Fast Ethernet Interface Module port LEDs Fast Ethernet Interface Module Terminal block for 2 power inputs, 1 DI/DO, and 1 relay output Grounding screw DIP switches for Ring Master, Ring Coupler, and Turbo Ring RS-232 Console port Screw to attach Fast Ethernet Interface Module Rear Panel:... - Page 4 Panel Views of the EDS-611 FRONT VIEW REAR VIEW Front Panel: System Status LEDs Fast Ethernet Interface Module port LEDs Fast Ethernet Interface Module Terminal block for 2 power inputs, 1 DI/DO, and 1 Relay output Grounding screw DIP switches for Ring Master, Ring Coupler, and Turbo Ring RS-232 Console port G1 to G3: 10/100/1000 BaseT(X) or 100/1000Base SFP slot combo ports...
- Page 5 Panel Views of the EDS-616 FRONT VIEW REAR VIEW Front Panel: System Status LEDs Fast Ethernet Interface Module port LEDs Fast Ethernet Interface Module Terminal block for 2 power inputs, 1 DI/DO, and 1 relay output Grounding screw DIP switches for Ring Master, Ring Coupler, and Turbo Ring RS-232 Console port Screw to attach Fast Ethernet Interface Module Rear Panel:...
- Page 6 Panel Views of the EDS-619 FRONT VIEW REAR VIEW Front Panel: System Status LEDs Fast Ethernet Interface Module port LEDs Fast Ethernet Interface Module Terminal block for 2 power inputs, 1 DI/DO, and 1 relay output Grounding screw DIP switches for Ring Master, Ring Coupler, and Turbo Ring RS-232 Console port G1 to G3: 10/100/1000 BaseT(X) or 100/1000Base SFP slot combo ports...
-
Page 7: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) EDS-608/EDS-611 Front View Side View Rear View Panel Mounting Kit Panel Mounting Kit Rear View DIN-Rail Attachment Plate - 7 -... -
Page 8: Din-Rail Mounting
EDS-616/EDS-619 Front View Side View Rear View Panel Mounting Kit Panel Mounting Kit DIN-Rail Attachment Plate Rear View DIN-Rail Attachment Plate DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the EDS-600 when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the EDS-600, be sure the spring-loaded bracket is situated towards the bottom, as shown in the following figures. -
Page 9: Wall Mounting (Optional)
DIN-Rail DIN-Rail To remove the Moxa EDS-600 switch from the DIN-Rail, use a screwdriver to push down the spring-loaded bracket until it locks in place, as shown in the following diagram. Next, rotate the bottom of the switch upwards and then remove the switch from the DIN-Rail. -
Page 10: Wiring Requirements
ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa EtherDevice Switch. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. - Page 11 You should separate input wiring from output wiring We advise that you label the wiring to all devices in the system. Grounding the Moxa EDS-600 EDS switches are designed to enhance EMS performance by grounding. EDS switches come with metal DIN-Rail brackets for grounding the switches. For optimal EMS performance, connect the chassis ground nut on the switch to the grounding point.
-
Page 12: Wiring The Relay Contact
Wiring the Relay Contact The EDS-600 has a set of relay outputs. The relay contact uses two of the terminal block’s contacts located on the EDS-600’s front panel. Refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. -
Page 13: Wiring The Digital Inputs
Use either an RJ45-to-DB9 (see the following cable wiring diagrams) to connect the EDS-600’s console port to your PC’s COM port. You may then use a console terminal program, such as Moxa PComm Terminal Emulator, to access the EDS-600’s console configuration utility. - Page 14 RJ45 (10-pin) to DB9 (F) Cable Wiring Moxa COM Port EtherDevice Server RJ45 Plug Pin 1 RJ45 Female DB9 Connector Cable Wiring Connector 10/100/1000BaseT(X) Ethernet Port Connection The 10/100/1000BaseT(X) ports located on switch’s front panel are used to connect to Ethernet-enabled devices. Most users will choose to configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are...
- Page 15 (DD-) (DC-) 100BaseFX or 1000BaseSFP Fiber Port The Gigabit Ethernet ports on the EDS-600 series are SFP slots, which require 100BaseFX SFP or Gigabit mini-GBIC fiber transceivers to work properly. Moxa provides complete transceiver models for various distance requirements. The concept behind the LC port and cable is quite straightforward. Suppose you are connecting devices I and II.
-
Page 16: Turbo Ring Dip Switch Settings
Turbo Ring DIP Switch Settings EDS-600 series switches are managed redundant plug-and-play Ethernet switches. The proprietary Turbo Ring protocol was developed by Moxa to provide better network reliability and faster recovery time. Moxa Turbo Ring’s recovery time is less than 300 ms (Turbo Ring) or 20 ms (Turbo Ring V2) —compared to a 3- to 5-minute recovery time for commercial... -
Page 17: Led Indicators
“Turbo Ring V2” DIP Switch Settings DIP 1 DIP 2 DIP 3 DIP 4 ON: Enables the ON: Enables this ON: Enables the ON: Activates default “Ring EDS as the Ring default “Ring DIP switches 1, Coupling Master. Coupling” port. 2, 3 to configure (backup)”... -
Page 18: Specifications
When the EDS-600 is set as the Ring Master of the Turbo Ring or as the Head Blinking of the Turbo Chain and the Turbo Ring or Turbo Chain is down. When the EDS-600 coupling function is enabled to form a back-up path or if it is set as the Tail of the Turbo Chain. - Page 19 Interface RJ45 Ports 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection Fiber Ports Optional 100/1000Base SFP modules Console Port RS-232 (10-pin RJ45) System LED Indicators PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, G1, G2, G3 Module LED Indicators 10/100M for TP port, 100M for Fiber port Alarm Contact Two relay outputs with current carrying capacity of 1 A @ 24 VDC...
- Page 20 LR (Pending), NKK (Pending) Shock IEC60068-2-27 Free Fall IEC60068-2-32 Vibration IEC60068-2-6 WARRANTY 5 years Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: +1-714-528-6777 Tel: +86-21-5258-9955 Fax: +1-714-528-6778 Fax: +86-10-6872-3958 Moxa Europe: Moxa Asia-Pacific:...
