Rosslare DR-12C User Manual

DR-12C
EM Card Desktop Reader
User Manual
1. Introduction
The DR-12C is an advanced EM Card Desktop Reader. It reads the EM
card identification number and transmits it to connected access control
software, such as Rosslare's AxTraxNG™.
It has a slim and attractive design and is built for convenience and
portability. With its USB computer interface, it is quick and easy to
install and runs without any additional power source. Designed to sit
safely on any desktop, the DR-12C is sturdily built, with surface-
gripping rubber feet.
1.1 Features
Reads EM Card ID

 Bi-Colored LED
 Supports USB 2.0 Standard (compatible with USB 1.1), meets the
EIA Standard
 Driver supports the following Operating Systems:
 Windows 7 32- and 64-Bit, Windows Vista, and Vista 64-Bit,
Windows XP and XP 64-Bit, Server 2003, XP and Server 2008,
Windows XP Embedded, Windows CE 4.2, 5.0 and 6.0, Mac
OS-X
2. Technical Specifications
2.1 Electrical Characteristics
Operating Voltage Range 5 VDC (USB powered)
Standby Current 70 mA
Max. Operation Current 90 mA
Supported Transponders EM Cards
Read Card Distance Up to 5 cm
RF Modulation ASK
Operation Frequency 125 kHz
Output Format Wiegand 26-Bit
3. Installing the USB Driver
To download the driver, please refer to
http://www.rosslaresecurity.com
To install the driv er for all cables:
1. Go to http://www.rosslaresecurity.com.
Downloads
2. Click in the Quick Links section.
3. In Document Types , select Driver and click Search.
4. Click the Download icon.
5. Double-click the installation file: CDM20824_Setup.
After a few moments, a completion message appears and the
window closes.
4. Enrolling Cards using AxTraxNG
You must use the AxTraxNG software to enroll cards.
Please refer to Appendix J in the AxTraxNG™ Software Installation and
User Manual
.
2.2 Environmental Characteristics
Operating Environment
Operating Temperature Range
Storage Temperature Range
Relative Humidity Range
2.3 Physical Characteristics
Weight
Dimensions (L x W x H)
1

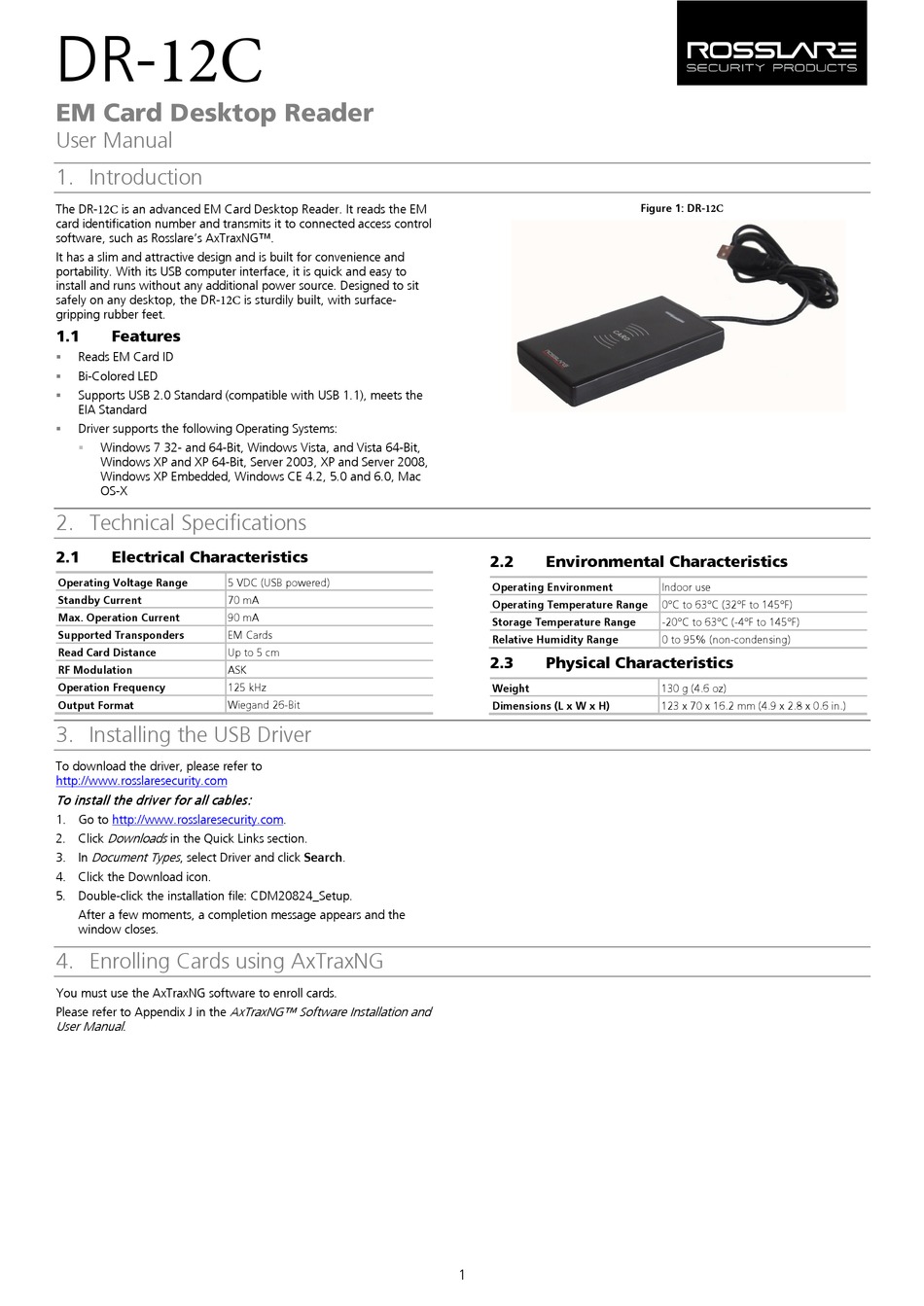

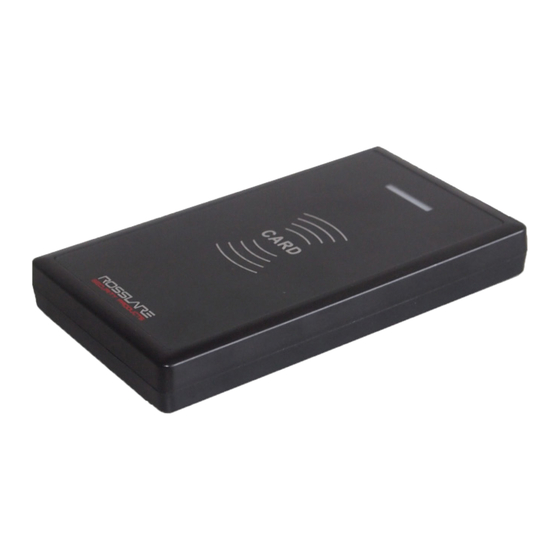

Figure 1: DR-12C
Indoor use
0°C to 63°C (32°F to 145°F)
-20°C to 63°C (-4°F to 145°F)
0 to 95% (non-condensing)
130 g (4.6 oz)
123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.)
