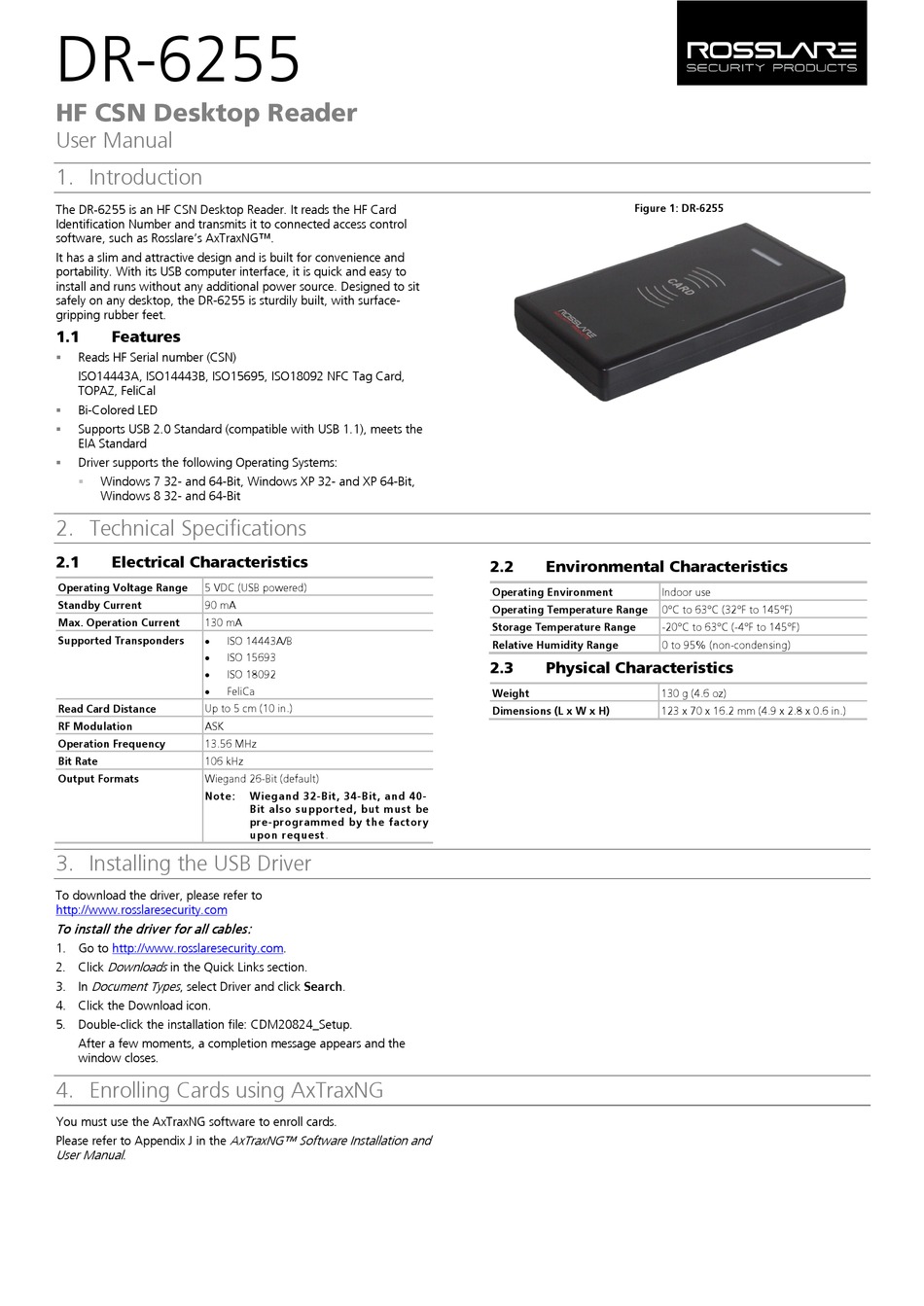

Rosslare DR-6255 User Manual

DR-6255
HF CSN Desktop Reader
User Manual
1. Introduction
The DR‐6255 is an HF CSN Desktop Reader. It reads the HF Card
Identification Number and transmits it to connected access control
software, such as Rosslare's AxTraxNG™.
It has a slim and attractive design and is built for convenience and
portability. With its USB computer interface, it is quick and easy to
install and runs without any additional power source. Designed to sit
safely on any desktop, the DR-6255 is sturdily built, with surface-
gripping rubber feet.
1.1 Features
 Reads HF Serial number (CSN)
ISO14443A, ISO14443B, ISO15695, ISO18092 NFC Tag Card,
TOPAZ, FeliCal
 Bi-Colored LED
 Supports USB 2.0 Standard (compatible with USB 1.1), meets the
EIA Standard
 Driver supports the following Operating Systems:
 Windows 7 32- and 64-Bit, Windows XP 32- and XP 64-Bit,
Windows 8 32- and 64-Bit
2. Technical Specifications
2.1 Electrical Characteristics
Operating Voltage Range 5 VDC (USB powered)
Standby Current 90 mA
Max. Operation Current 130 mA
Supported Transponders •
ISO 14443A/B
•
ISO 15693
•
ISO 18092
•
FeliCa
Read Card Distance Up to 5 cm (10 in.)
RF Modulation ASK
Operation Frequency 13.56 MHz
Bit Rate 106 kHz
Output Formats Wiegand 26-Bit (default)
Note:
3. I nstalling the USB Driver
2 B
To download the driver, please refer to
http://www.rosslaresecurity.com
To install the driv er for all cables:
1. Go to http://www.rosslaresecurity.com.
Downloads
2. Click in the Quick Links section.
Document Types
3. In , select Driver and click Search.
4. Click the Download icon.
5. Double-click the installation file: CDM20824_Setup.
After a few moments, a completion message appears and the
window closes.
4. E nrolling Cards using AxTraxNG
3 B
You must use the AxTraxNG software to enroll cards.
AxTraxNG™ Software Installation and
Please refer to Appendix J in the
User Manual
.
Wiegand 32-Bit, 34-Bit, and 40-
Bit also supported, but must be
pre-programmed by the factory
upon request.

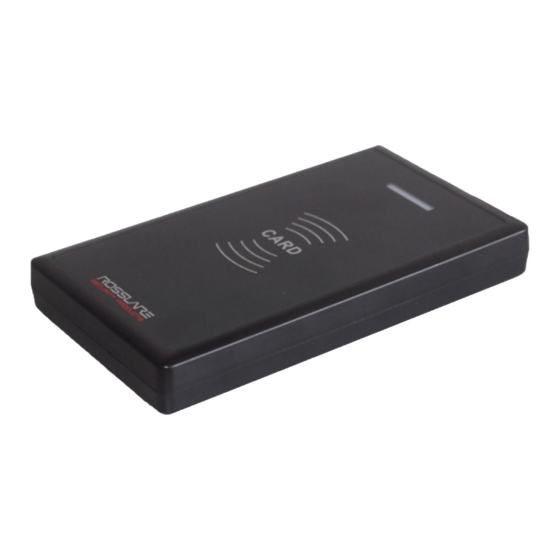

Figure 1: DR-6255
2.2 E nvironmental Characteristics
6 B
Operating Environment Indoor use
Operating Temperature Range 0°C to 63°C (32°F to 145°F)
Storage Temperature Range -20°C to 63°C (-4°F to 145°F)
Relative Humidity Range 0 to 95% (non-condensing)
2.3 P hysical Characteristics
7 B
Weight
130 g (4.6 oz)
Dimensions (L x W x H)
123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.)
