GA-01/02/12
DigiTool
®
iButton and Event Wallets

Installation Manual

1. Introduction
®
The DigiTool
family of adaptable guard patrol products are built to
meet the needs of any guard patrol area and facilitate the guard
touring administration of guards, tours, location tags, users, and events
tags.
1.1
GA-01 Location Tags
®
DigiTool GA-01 iButton
location tags should be left at registration
locations around the guards' tour path. Guards use a GC-01 DigiTool
Reader to record when they reached each point along their path.
GA-01 location tags are housed in a protected mounting bracket for
reliable deployment and strong performance. They are highly resistant
to environmental hazards such as dirt, moisture, and shock.
1.2
Event Wallets
Any event that occurs during a patrol (for example, a fire or a break-in)
can be recorded by the guard using an event wallet. The event wallet

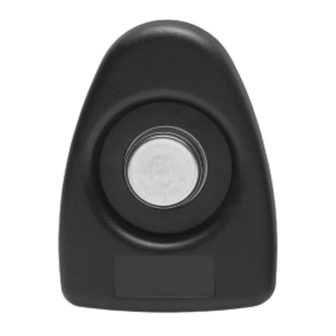

Figure 1: GA-01
2.
T echnical Specifications
1 B
2.1
G A-01 Location Tag
5 B
Operating Temperature Range
-32°C to 30°C (0°F to 100°F)
ID Code
Randomly set with 12 Hex digits (highly
secure)
Position Code
16 byte ID with open or custom Facility
code
Color Range
Available in black, orange, purple, red,
white, and yellow
Dimensions
53 x 36 x 8 mm (2.1 x 1.4 x 0.3)
Weight
15 g (0.5 oz)
3.
I nstalling Location Tags
2 B
Mount GA-01 Location Tags at chosen points along a patrol tour
route. The tags can be mounted with glue or can be screwed to a
surface using the four mounting holes (see Figure 4).
The area at the front bottom of each tag is left empty so that the tag
can be labeled. The tags are also available in a range of colors to make
them easily identified and distinguished.
All location tags and event wallet iButtons (or iButton codes) must be
registered in the GS-01 DigiTool Reports Lite software or the GS-02
DigiTool Call Center software system. Refer to your software manual
for more information
contains a number of iButtons. Every iButton, or combination of
iButtons, is assigned to a user-defined event.
Guards use their GC-01 DigiTool readers to select the appropriate
event button. The information is then recorded on the reader and can
be uploaded to a central computer running the GS-01 DigiTool Reports
Lite software or the GS-02 DigiTool Call Center software system.
The GA-02 Event Wallet contains 10 event iButtons. Each iButton can
be assigned to a different event.
The GA-12 is a digital event wallet with 10 event iButtons, a start
button, and a stop button. Different combinations of iButtons
correspond to different user-defined events.
Both event wallets are hard wearing, conveniently compact, and
lightweight.
GA-12 Event Wallets are not supported by the GS-01 DigiTool
Reports Lite software
Figure 2: GA-02
2.2
G A-02 Event Wallet
6 B
Event Buttons
Number of Events Available
Materials
2.3
G A-12 Event Wallet
7 B
Event Buttons
Number of Events Available
Materials
1
Figure 3: GA-012
10
10
ABS plastic inside of a soft leather wallet
12 iButtons:
Digits 0–9, START, and END buttons
Unlimited (10 pre-defined)
ABS plastic inside of a soft leather wallet
Figure 4: GA-01 Mounting Holes
