Rosslare DR-U955BT User Manual

DR-U955BT
Multi-format Desktop Reader
User Manual
1. Introduction
The DR-U955BT is an advanced desktop reader for MIFARE Classic
® ®
EV1, MIFARE DESFire EV1, UHF, and BLE. It reads the ID data of the
credential and transmits the relevant ID data to any connected access
control software, such as Rosslare's AxTraxNG™.
It has a slim and attractive design and is built for convenience and
portability. With its USB computer interface, it is quick and easy to install
and runs without any additional power source.
Using the BLE-Admin™ or My BLE-ID™ apps, the reader can function
like other Rosslare BLE readers and can transmit the BLE ID to the reader.
The Hardware Configuration Tool (HCT) can be used to configure the
reader's specifications, such as the Wiegand format used.
The reader reads the CSN ID of each credential (MIFARE, UHF, BLE) and
transmits it to the software with the bit length pre-configured by the user.
2. Technical Specifications
2.1 Electrical Characteristics
Operating Voltage Range
Standby Current
Max. Operation Current
Supported Transponders
Read Card Distance
Operation Frequency
Output Formats
3. Operation
The DR-U955BT appears as a COM port device when plugged in to a PC and can be used for any application. When a card is presented to the reader, the reader
outputs the Wiegand ID data on the COM port only once until a new card is presented.
You must use the AxTraxNG software to enroll cards. Please refer to the relevant appendix in the AxTraxNG™ Software Installation and User Manual.
For the enrollment reader to function in AxTraxNG, you must know the COM port being used. The COM port can be found in Microsoft Device Management's
driver details under 'Ports (COM & LPT)'. The port being used appears as "USB serial Port (COMx)", where x is the number of the port used.
4. Configuration with the BLE-Admin App
1. Download the BLE-Admin application from Google Play or App Store
using the following QR code.
2. Open the application, select the required reader from the list displayed.
3. Enter the password.
NOTES:
•
Use the default password (12345678) when you log in to the
BLE-Admin application for the first time.
•
It is highly recommended that you change the password (see step 4).
5 VDC (USB powered)
250 mA
300 mA
MIFARE, UHF, BLE
UHF and MIFARE: Up to 5 cm (2 in.)
BLE: Up to 6 m (19.7 ft)
•
RFID: 13.56 MHz
•
DR-U955BT US: 902–928 MHz
(America) RFID
•
DR-U955BT EU: 865–868 MHz
(Europe) RFID
•
Bluetooth: 2.402-2.480 GHz
Supports Wiegand 26-Bit to 64-Bit
S M A R T
®
2.2 Environmental Characteristics
Operating Environment
Operating Temperature Range
Storage Temperature Range
Relative Humidity Range
2.3 Physical Characteristics
Weight
Dimensions (L x W x H)
4. On the main screen, configure the following:
Options
Desktop Reader Name
Password
5. Tap Set Configuration and configure the following
Parameters
Power
Transmission Protocol Wiegand
Transmission Protocol
Type
NOTE: The My BLE-ID application allows a mobile device to be used as a
credential. Download the application from Google Play or App Store using
the following QR code.
1

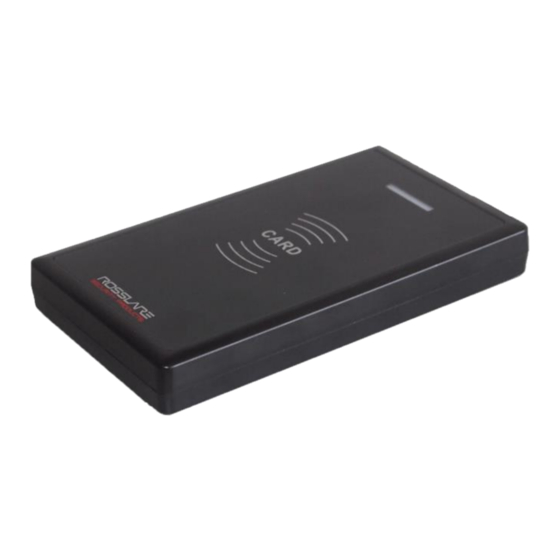

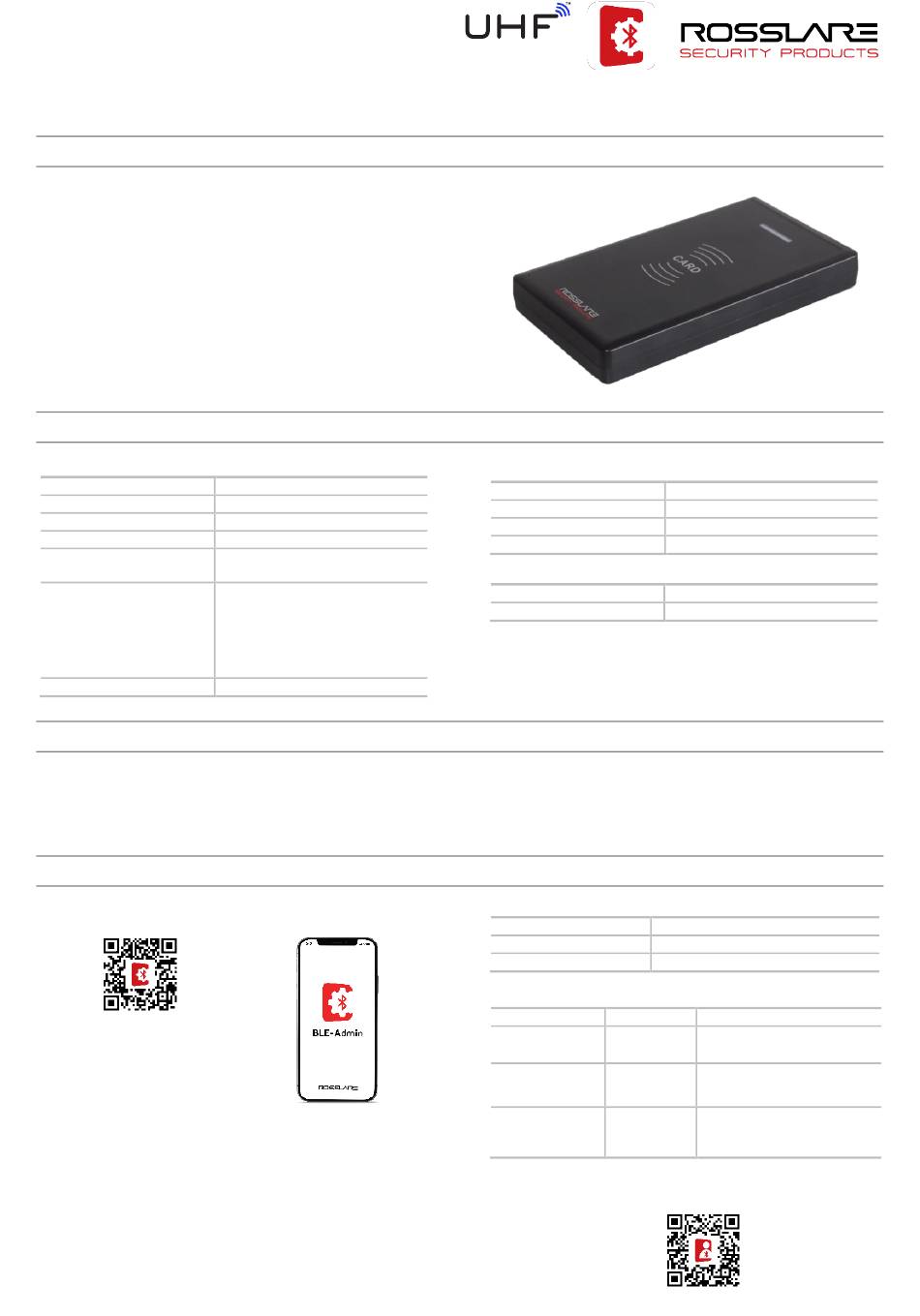

Figure 1: DR-U955BT
Indoor use
0°C to 63°C (32°F to 145°F)
-20°C to 63°C (-4°F to 145°F)
0 to 95% (non-condensing)
130 g (4.6 oz)
123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.)
Remarks
Assign name to select the Desktop Reader Name
Change password
Options Remarks
Power = 1 – 10
Slide to select the signal power effect
of UHF reading range credentials.
Default = 10
This is a proprietary protocol that the
reader uses to send the tag information
to the AxTraxNG software.
Select number of bits.
26, 32, 32R, 34,
40, 56, 64 bits
Default = 26 bits
