brel-motors MS55-60 Manual

Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
warning:
Children cannot recognize the dangers of electrical equipment and may therefore not work with it.
It is important to follow this instruction for your own safety.
1. Do not operate the motor in humid surroundings.
2. The motor must be installed correctly.
3. The motor must be protected from direct moisture influences.
4. The motor should be installed with the motor cable down in order to prevent moisture via the motor cable is running in the
motor . See Figure 1
5. It is prohibited to connect two motors on a switch without using a relay control.
_________________________________________________________________________

Technical data of the motor

•
Motor Voltage:
•
Power:
• Torque:
• Speed:
• Ampèrage:
•
Moisture and dust:
•
Working temperature of the motor:
o Normal use:
o Heavy use:
BREL motors is part of:

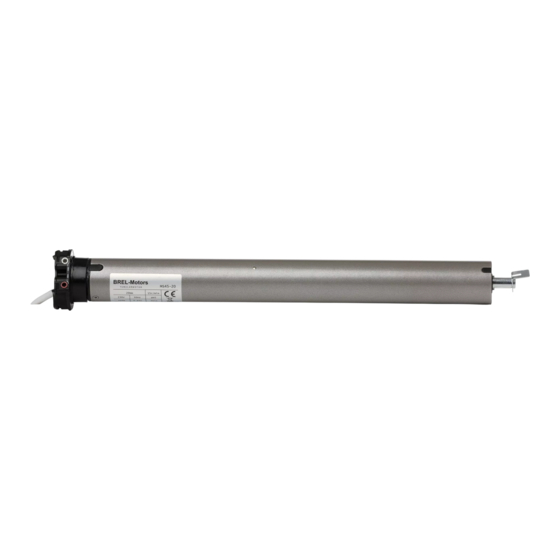

Manual Brel 55mm standard motor
Type MS55
Type MS55-60
AC 230V
320Watt
60Nm
12rpm
1.39A
IP44
-10℃ tot +40℃
-20℃ tot +70℃
Type MS55-80 Type MS55-120
AC 230V AC 230V
385Watt 393Watt
80Nm 120Nm
12rpm 7rpm
1.65A 1.68A
IP44 IP44
Page 1
Figure 1
