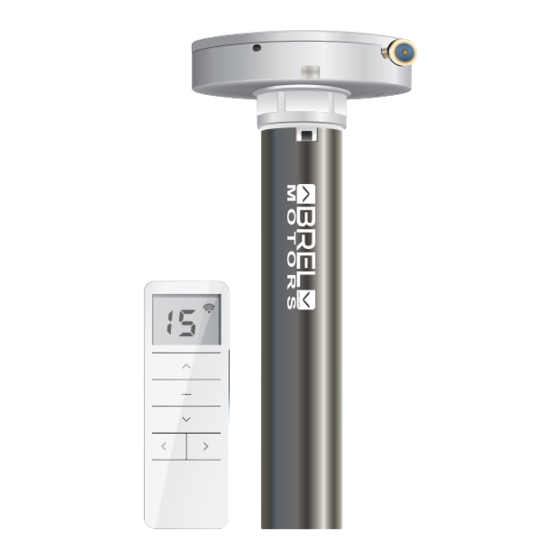

Manual Brel Bi-Directional Rollerblind motor
BLE15
Read the manual before you begin the
installation. If these instructions are
not followed, this may lead to defects
and injury in which warranty can't be
claimed.
www.brel-home.com
Visit our website for more manuals and information
BLE15-0.3
Scan the QR code here for the manual to
download & view instructional videos
M O T O R S
EN NL DE FR
Advertisement
Table of Contents
Related Manuals for brel-motors BLE15
Summary of Contents for brel-motors BLE15
- Page 1 M O T O R S INSTALLATION MANUAL Manual Brel Bi-Directional Rollerblind motor BLE15 Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be claimed.
- Page 2 Technical data of the motor/Reach/Charging the motor Functions remote control Settings Warning Do not operate the motor BREL-Motors declares that this in humid surroundings. motor has been manufactured according to the guidelines of the CE standard 1999/5/EC The motor must be protected from direct moisture influences.
-
Page 3: Installing The Motor
Page 3 Wiring Antenna Micro-USB BLE 15 LED Light LED Light Micro-USB BLE 15 Antenna Magnet Plug (Optional) Installing the Motor These assemblies are usually already done in the factory Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the wheel is fixed to the motor. - Page 4 = 25 meter Charging the motor If charging the BLE15 only use a charger with Micro-USB plug (5V) The battery is empty when the motor light flashes red. The light flashes green while charging. The battery is fully charged when the light stops blinking and lights-up continuously.
- Page 5 There are 2x P2 buttons, no matter which one you press. Scan the QR code here for the manual to download & view instructional videos BLE15-0.3 Step 1 Setting up the first remote/channel The remote control can transmit 15 channels and therefore control multiple blinds.
- Page 6 Page 6 Step 3 Adjusting the direction of rotation (Only if the direction of rotation is not correct) Only possible if no end positions are set. until Press UP and DOWN button The direction of rotation of simultaneously, until the product moves. the motor is OK.
-
Page 7: Additional Settings
Page 7 Additional settings Adjusting the top position Option A If adjustment is not possible, go to Resetting factory settings. STOP until 2x STOP until Press at the same time STOP Press at the same time STOP and UP Go to the new and UP until the motor moves top position. -
Page 8: Changing The Direction Of Rotation
Page 8 Option D Speed Control 1x P2 The motor speed Press 1x up. Press 1x up. has been increased Press P2. The product Press 1x down. Press 1x down. The motor speed moves 1x up and down has been reduced. If the motor does NOT react after this action, it is already at the highest or lowest speed.
