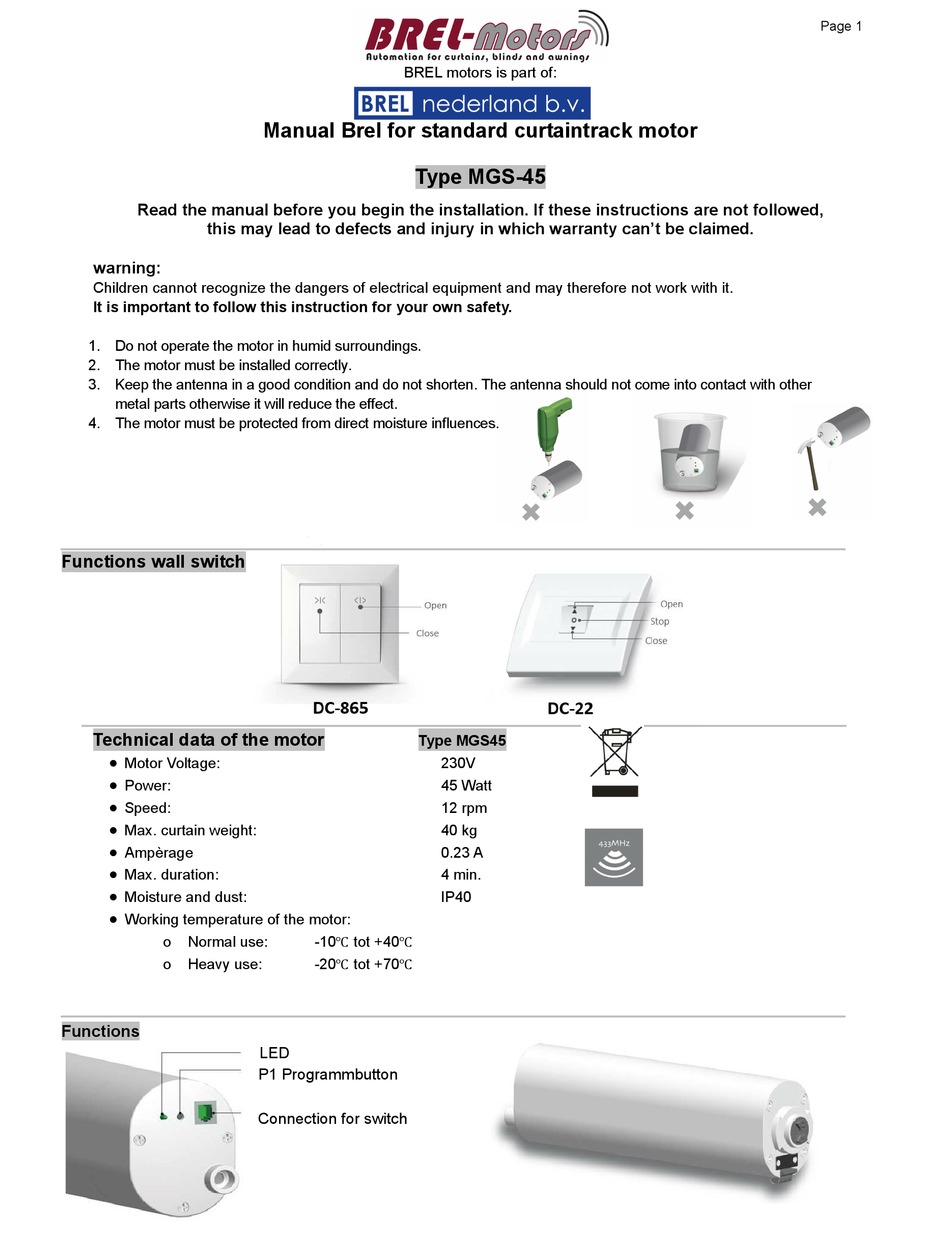

brel-motors MGS-45 Manual

Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
warning:
Children cannot recognize the dangers of electrical equipment and may therefore not work with it.
It is important to follow this instruction for your own safety.
1. Do not operate the motor in humid surroundings.
2. The motor must be installed correctly.
3. Keep the antenna in a good condition and do not shorten. The antenna should not come into contact with other
metal parts otherwise it will reduce the effect.
4. The motor must be protected from direct moisture influences.
_______________________________________________________________________________
Functions wall switch
_____________________________________________________________________________
Technical data of the motor
 Motor Voltage:

Power:
 Speed:
 Max. curtain weight:

Ampèrage
 Max. duration:
 Moisture and dust:

Working temperature of the motor:
o Normal use:
o Heavy use:
_______________________________________________________________________________
Functions
BREL motors is part of:
Manual Brel for standard curtaintrack motor

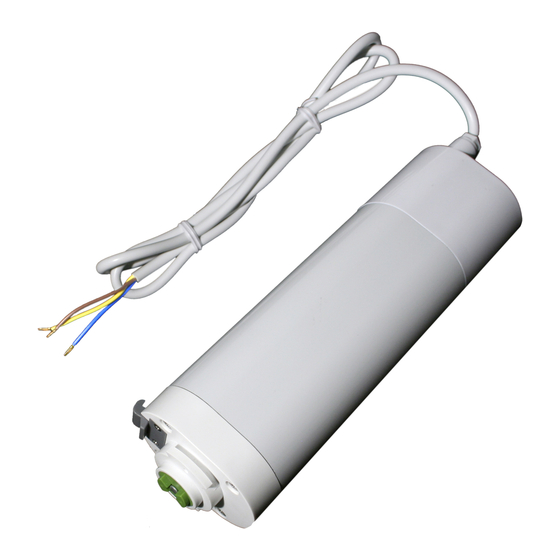

Type MGS-45
Type MGS45
-10℃ tot +40℃
-20℃ tot +70℃
LED
P1 Programmbutton
Connection for switch
230V
45 Watt
12 rpm
40 kg
0.23 A
4 min.
IP40
