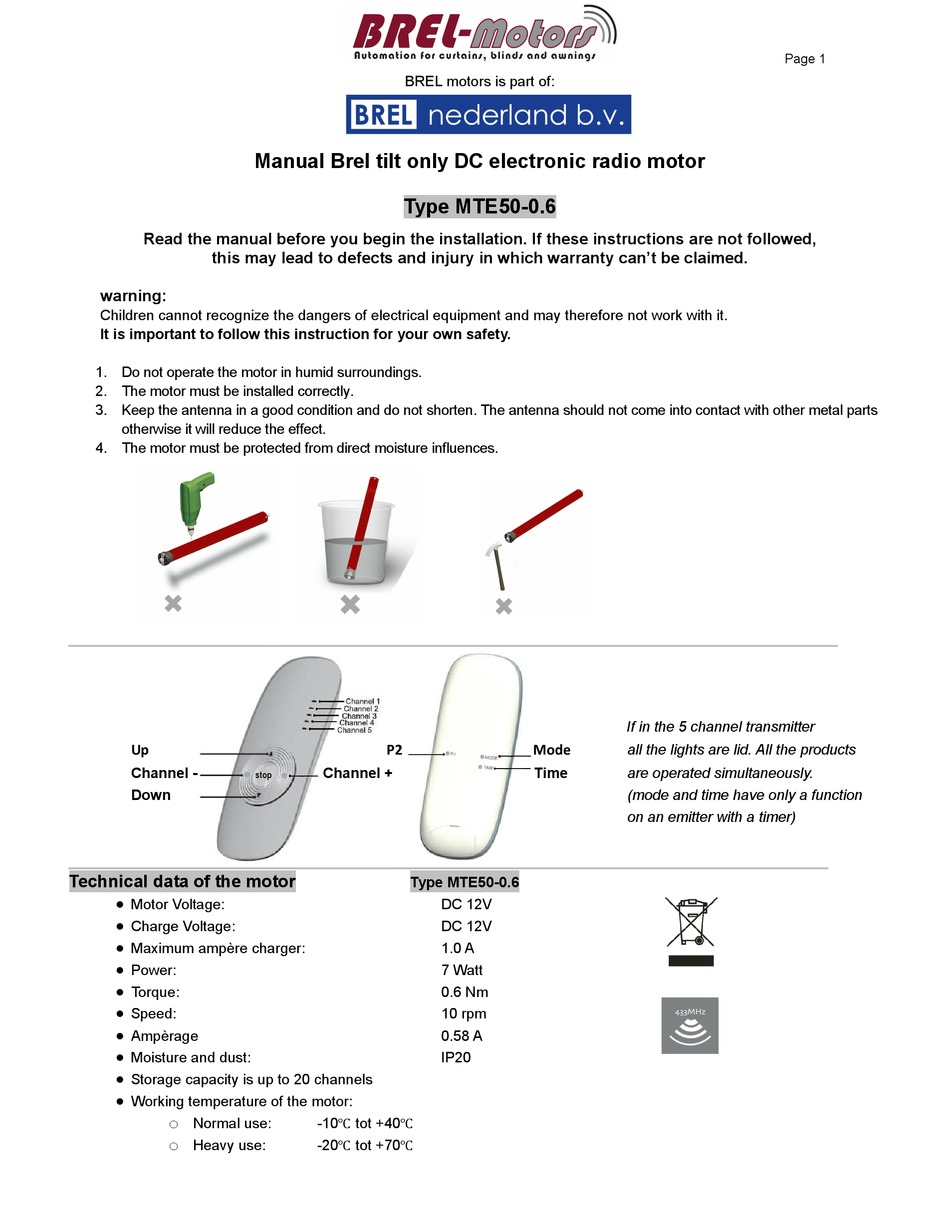

brel-motors MTE50-0.6 Manual

Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
warning:
Children cannot recognize the dangers of electrical equipment and may therefore not work with it.
It is important to follow this instruction for your own safety.
1. Do not operate the motor in humid surroundings.
2. The motor must be installed correctly.
3. Keep the antenna in a good condition and do not shorten. The antenna should not come into contact with other metal parts
otherwise it will reduce the effect.
4. The motor must be protected from direct moisture influences.
_______________________________________________________________________________
Up
Channel -
Down
______________________________________________________________________________

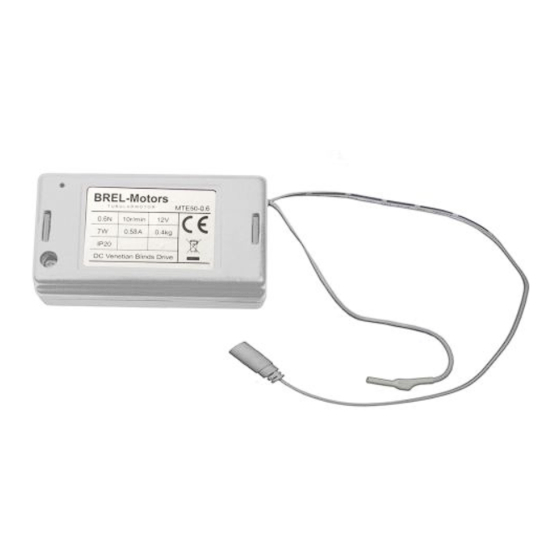

Technical data of the motor
 Motor Voltage:

Charge Voltage:

Maximum ampère charger:
 Power:
 Torque:
 Speed:
 Ampèrage

Moisture and dust:

Storage capacity is up to 20 channels
 Working temperature of the motor:
o Normal use:
o
Heavy use:
BREL motors is part of:
Manual Brel tilt only DC electronic radio motor
Type MTE50-0.6
P2
Channel +
stop
Type MTE50-0.6
-10℃ tot +40℃
-20℃ tot +70℃
Mode
Time
DC 12V
DC 12V
1.0 A
7 Watt
0.6 Nm
10 rpm
0.58 A
IP20
Page 1
If in the 5 channel transmitter
all the lights are lid. All the products
are operated simultaneously.
(mode and time have only a function
on an emitter with a timer)
