INSTALLATION
MANUAL

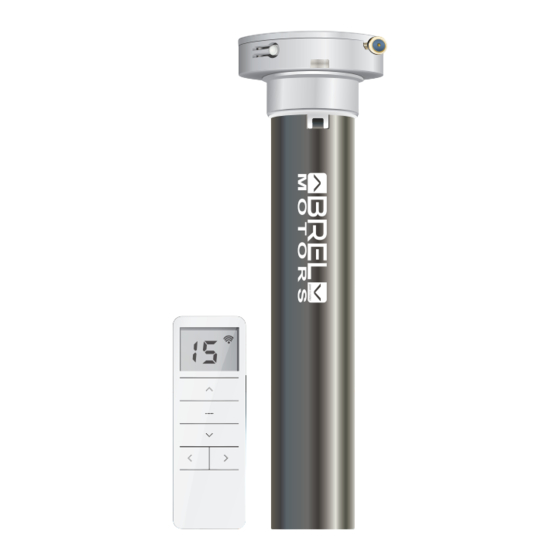

Manual Brel Bi-Directional Rollerblind motor
BPE25DD
Read the manual before you begin the
installation. If these instructions are not
followed, this may lead to defects and
injury in which warranty can't be claimed.
www.brel-home.com
Visit our website for more manuals and information
BPE25DD
Scan the QR code here for the manual to
download & view instructional videos
M O T O R S
EN NL DE FR
Advertisement
Table of Contents
Related Manuals for brel-motors BPE25DD
Summary of Contents for brel-motors BPE25DD
- Page 1 M O T O R S INSTALLATION MANUAL Manual Brel Bi-Directional Rollerblind motor BPE25DD Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be claimed.
- Page 2 Wiring/Installing the motor/Compatible with hub Technical data of the motor/Reach/Charging the motor Functions remote control Warning Do not operate the motor BREL-Motors declares that this in humid surroundings. motor has been manufactured according to the guidelines of the CE standard 1999/5/EC...
-
Page 3: Installing The Motor
Page 3 Wiring Antenna Micro-USB BPE 25 LED Light Common line (Com)= Red line Up line (Up)= Black line External switch line Down line (Down)= Green line Installing the Motor These assemblies are usually already done in the factory Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the wheel is fixed to the motor. - Page 4 Page 4 Technical data of the motor TYPE BLE25-11 Motor Voltage 230V AC Maximum Ampere Charger Power 13 W Torque 1.5 Nm Speed 24-28-32 rpm Amperage 0.15 A Moisture and Dust IP20 Storage capacity is up to 20 channels Working temperature of the motor Heavy Use: Normal Use: 433 MH...
-
Page 5: Establishing Connection
There are 2x P2 buttons, no matter which one you press. Scan the QR code here for the manual to download & view instructional videos. BPE25DD Step 1 Setting up the first remote/channel The remote control can transmit 15 channels and therefore control multiple blinds. - Page 6 Page 6 Step 3 Adjusting the direction of rotation (Only if the direction of rotation is not correct) Only possible if no end positions are set. until Press UP and DOWN button The direction of rotation of simultaneously, until the product moves. the motor is OK.
-
Page 7: Additional Settings
Page 7 Additional settings Adjusting the top position Option A If adjustment is not possible, go to Resetting factory settings. STOP STOP until 2x until Press at the same time STOP Go to the new Press at the same time STOP and UP top position. -
Page 8: Speed Control
Page 8 Option D Speed Control 1x P2 Press 1x up. The product Press 1x up. The product The motor speed moves up and down and moves 2 x up and down and has been increased beeps 1 times beeps 1 times Press P2.
