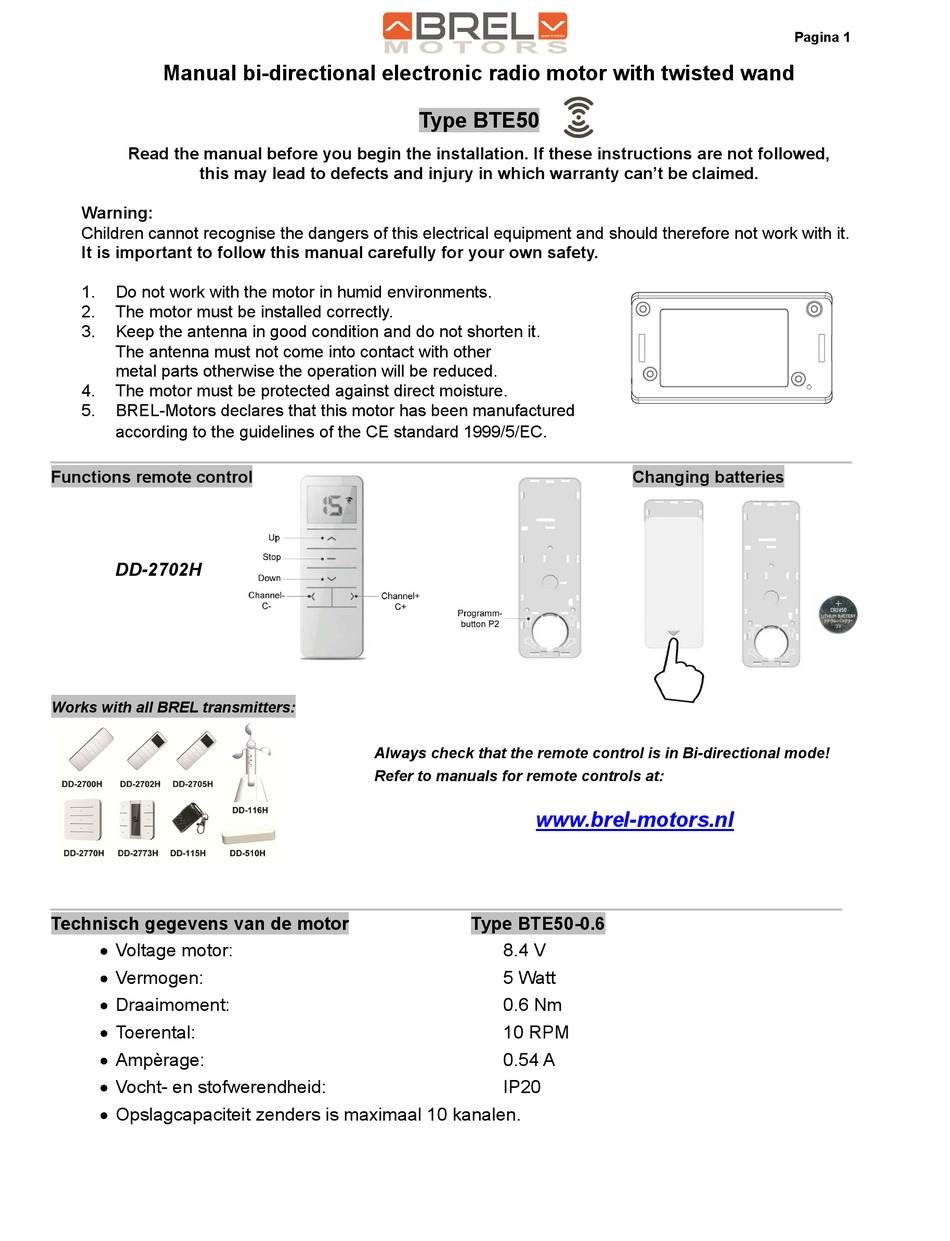

Manual bi-directional electronic radio motor with twisted wand

Read the manual before you begin the installation. If these instructions are not followed,

this may lead to defects and injury in which warranty can't be claimed.

Warning:

Children cannot recognise the dangers of this electrical equipment and should therefore not work with it.

It is important to follow this manual carefully for your own safety.

Do not work with the motor in humid environments.

The motor must be installed correctly.

Keep the antenna in good condition and do not shorten it.

The antenna must not come into contact with other

metal parts otherwise the operation will be reduced.

The motor must be protected against direct moisture.

BREL-Motors declares that this motor has been manufactured

according to the guidelines of the CE standard 1999/5/EC.

_______________________________________________________________________________

Functions remote control

DD-2702H

Works with all BREL transmitters:

______________________________________________________________________________

Technisch gegevens van de motor

 Voltage motor:

 Vermogen:

 Draaimoment:

 Toerental:

 Ampèrage:

 Vocht- en stofwerendheid:

 Opslagcapaciteit zenders is maximaal 10 kanalen.

Type BTE50

Always check that the remote control is in Bi-directional mode!

Refer to manuals for remote controls at:

www.brel-motors.nl

Type BTE50-0.6

8.4 V

5 Watt

0.6 Nm

10 RPM

0.54 A

IP20
