INSTALLATION
MANUAL

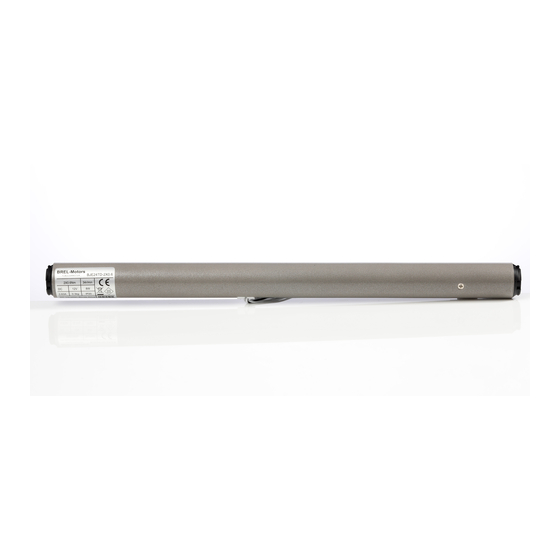

Manual Brel Bi-Directional TDBU motor
BJE24TD
Read the manual before you begin the
installation. If these instructions are
not followed, this may lead to defects
and injury in which warranty can't be
claimed.
www.brel-home.com
Visit our website for more manuals and information
BJE24TD
Scan the QR code here for the manual to
download & view instructional videos
M O T O R S
EN NL DE FR
Advertisement
Table of Contents
Related Manuals for brel-motors BJE24TD
Summary of Contents for brel-motors BJE24TD
- Page 1 M O T O R S INSTALLATION MANUAL Manual Brel Bi-Directional TDBU motor BJE24TD Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be claimed.
- Page 2 Technical data of the motor/Reach/Charging the motor Functions remote control Settings Warning Do not operate the motor BREL-Motors declares that this in humid surroundings. motor has been manufactured according to the guidelines of the CE standard 1999/5/EC The motor must be protected from direct moisture influences.
-
Page 3: Installing The Motor
Page 3 Wiring Programm button (P1) P1 button Antenna Power line Installing the Motor These assemblies are usually already done in the factory Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the wheel is fixed to the motor. - Page 4 Page 4 Technical data of the motor BJE24TD Motor Voltage DC 12V Radio frequency 433.9 Mhz Maximum Ampere Charger Power 8.4 W Torque 0.6 Nm Speed 34 rpm Amperage 0.7 A Moisture and Dust IP 20 Storage capacity is up to 20 channels...
- Page 5 There are 2x P2 buttons, no matter which one you press. Scan the QR code here for the manual to download & view instructional videos BJE24TD Step 1 Setting up the first remote/channel The remote control can transmit 15 channels and therefore control multiple blinds.
- Page 6 Page 6 Step 3 Adjusting the direction of rotation (Only if the direction of rotation is not correct) Only possible if no end positions are set. until Press UP and DOWN button The direction of rotation of simultaneously, until the product moves. the motor is OK.
-
Page 7: Additional Settings
Page 7 Additional settings Adjusting the top position Option A If adjustment is not possible, go to Resetting factory settings. STOP until STOP until Press at the same time STOP Press at the same time Go to the STOP and UP button, and UP until the motor moves. - Page 8 Page 8 (In case the old transmitter is lost or broken) Method 2 until STOP b until Press P1 of a. The product The new Press 1xSTOP of b. The product moves transmitter b has moves 1x up and down. 2x up and down.
-
Page 9: Changing The Direction Of Rotation
Page 9 Additional settings P1 button Can be used without a transmitter as an operating button. The product moves up, stops or goes down when pressed P1 Press 1x P1 on the motor. Switching o the receiver until Press and hold P1 until the product moves up and down for the The Receiver 2nd time.
