INSTALLATION
MANUAL

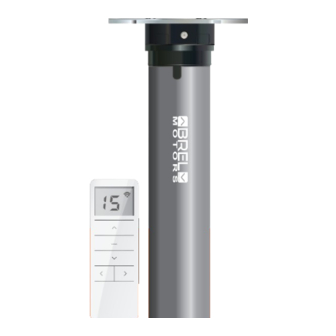

BLE35-13
Read the manual before you begin the
installation. If these instructions are not
followed, this may lead to defects and
injury in which warranty can't be claimed.
www.brel-home.com
Visit our website for more manuals and information
BLE35-13
Scan the QR code here for the manual to
download & view instructional videos
M O T O R S
EN NL DE FR
Advertisement
Table of Contents
Related Manuals for brel-motors BLE35-13
Summary of Contents for brel-motors BLE35-13
- Page 1 EN NL DE FR M O T O R S INSTALLATION MANUAL BLE35-13 Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be claimed.
- Page 2 Technical data of the motor/Reach/Charging the motor Functions remote control Settings Warning Do not operate the motor BREL-Motors declares that this in humid surroundings. motor has been manufactured according to the guidelines of the CE standard 1999/5/EC The motor must be protected from direct moisture influences.
-
Page 3: Installing The Motor
Page 3 Wiring Charging Plug DIN BLE35-13 Antenna Installing the Motor These assemblies are usually already done in the factory Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the wheel is fixed to the motor. - Page 4 Page 4 Technical data of the motor BLE35-13 Motor Voltage DC 12V Charge Voltage DC 12V Maximum Ampere Charger 3.23 A Power 38 W Torque 13 Nm Speed 07 - 10 -13 rpm Amperage 3.23 A Moisture and Dust IP 44...
- Page 5 There are 2x P2 buttons, no matter which one you press. Scan the QR code here for the manual to download & view instructional videos BLE35-13 Step 1 Setting up the first remote/channel The remote control can transmit 15 channels and therefore control multiple blinds.
- Page 6 Page 6 Step 3 Adjusting the direction of rotation (Only if the direction of rotation is not correct) Only possible if no end positions are set. until Press UP and DOWN button The direction of rotation of simultaneously, until the product moves. the motor is OK.
-
Page 7: Additional Settings
Page 7 Additional settings Adjusting the top position Option A If adjustment is not possible, go to Resetting factory settings. STOP until STOP until Press at the same time STOP Go to the new Press at the same time top position. STOP and UP button, and UP until the motor moves. - Page 8 Page 8 Option D Speed Control 1x P2 The motor speed Press 1x up. Press 1x up. has been increased Press P2. The product Press 1x down. Press 1x down. The motor speed moves 1x up and down has been reduced. The motor is set to medium speed and the slow stop is activated There are 3 different speeds;...
-
Page 9: Changing The Direction Of Rotation
Page 9 Additional settings P1 button Can be used without a transmitter as an operating button. 1x P1 The product moves up, stops or goes down when pressed P1 Press 1x P1 on the motor. Switching off the receiver until The Receiver Press and hold P1 until the product moves up and down for the 2nd time.
