en | Hardware installation
6.1.1
Installing the mounting plate without conduit
1.
2.
3.
4.
5.
6.
2021-02 | V02 | F.01U.385.211

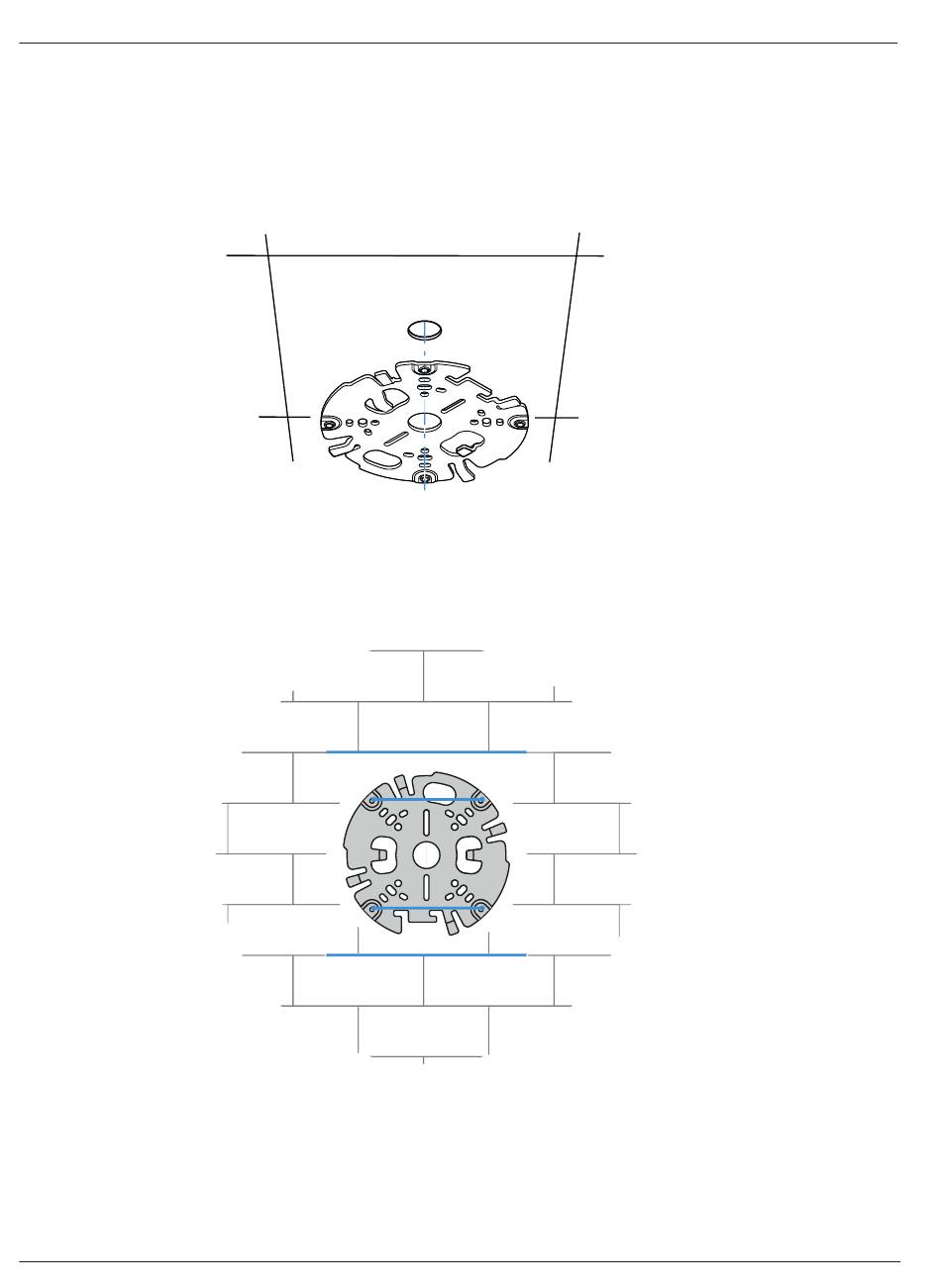

Remove the mounting plate from the box.
Position the mounting plate with the center hole on top of the cable exit on the surface,
and mark the positions of the screw holes on the surface.
–
For a camera mounted on a wall: make sure that the mounting plate is oriented in a
90º angle, with the holes parallel to the floor, to allow for the use of a weather
protector if necessary.
Drill the 4 holes with the appropriate diameter drill to support your 5-6 mm (0.2 in.)
screws and plugs.
Install 4 plugs in the holes.
Put the cable through the center hole of the mounting plate.
Attach the mounting plate to the surface with 4 screws. Tighten the screws between 4
and 7 Nm (3 and 5.2 lbfft).
