Summary of Contents for Bosch NDP-5512-Z30-P

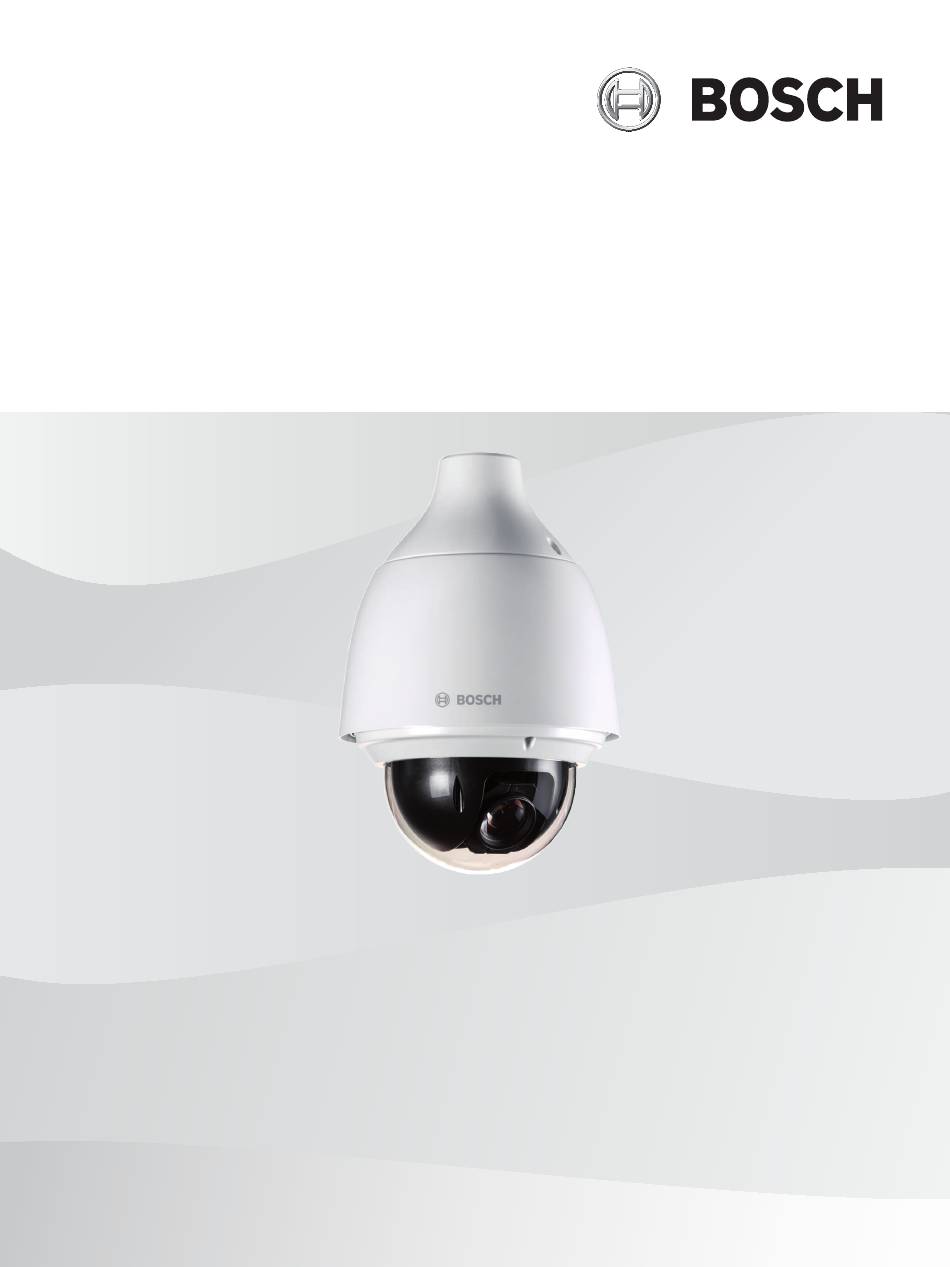

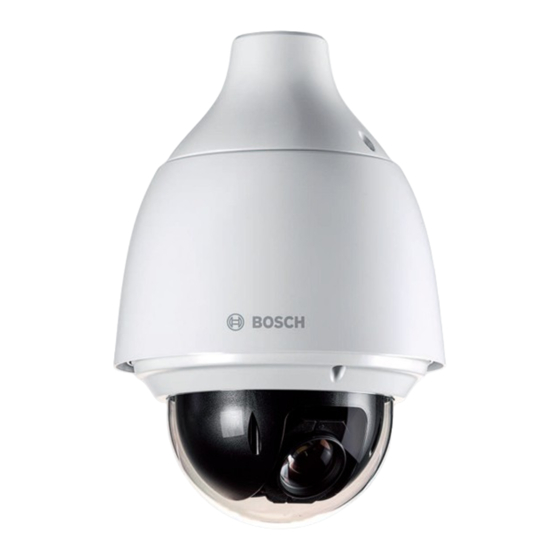

- Page 1 AUTODOME IP starlight 5000i NDP‑5512‑Z30 │ NDP‑5512‑Z30‑P Installation Manual...
-
Page 3: Table Of Contents
Installing the Pipe Mount Attaching the Mounting Cap and the Camera Installing a Roof Mount and Camera 10.1 Installing the Roof Mount 10.2 Attaching the Mounting Cap and the Camera Connection Troubleshooting Decommissioning Bosch Security Systems Installation Manual 2020-04 | 2.0 |... -
Page 4: Safety
Legal information Copyright This manual is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 5: Important Safety Instructions
® Electrical Code (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), and all applicable local codes. Bosch Security Systems accepts no liability for any damages or losses caused by incorrect or improper installation. Warning! Bosch’s version of High PoE: If supplying power to the camera by HPoE or a midspan device, you must install additional surge protection. -
Page 6: Connection In Applications
| Safety AUTODOME IP starlight 5000i Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. To minimize the risk of losing information, we recommend multiple, redundant recording systems, and a procedure to back up all analog and digital information. - Page 7 GB/T 26572 X: The content of such hazardous substance in a certain homogeneous material is above the limit defined in GB/T 26572 The manufacturing datecodes of the products are explained in: http://www.boschsecurity.com/datecodes/ Bosch Security Systems Installation Manual 2020-04 | 2.0 |...
-
Page 8: Customer Support And Service
| Safety AUTODOME IP starlight 5000i Customer support and service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Telephone: 800-366-2283 Fax: 800-366-1329 Email: cctv.repair@us.bosch.com Customer Service Telephone: 888-289-0096 Fax: 585-223-9180 Email: security.sales@us.bosch.com... -
Page 9: Introduction
Verify that all the parts listed in the Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. – Do not use this product if any component appears to be damaged. Please contact Bosch Security Systems in the event of damaged goods. –... -
Page 10: Product Description
AUTODOME IP starlight 5000i camera has an integrated 30X optical zoom to identify people at a maximum distance of 183 m (600 ft) with minimal loss of detail. 2020-04 | 2.0 | Installation Manual Bosch Security Systems... -
Page 11: Preparing Wiring
28 m (94 ft) 45 m (150 ft) 72 m (238 ft) 183 m (603 ft) Wire Gage Note: Metric wire sizes are standard DIN sizes, ISO6722, mm². Wire diameter (mm²) Bosch Security Systems Installation Manual 2020-04 | 2.0 |... -
Page 12: Preparing The Camera
Torx screwdriver. Remove the trim ring / bubble enclosure. Remove the foam insert that protects the camera block. Remove the tape holding the plastic lens protector; remove the lens protector. 3× 2020-04 | 2.0 | Installation Manual Bosch Security Systems... -
Page 13: Installing A Microsd Card (Optional)
Push the camera block into its original position (item 3 in the following figure). Note: The next two steps are for pendant models only. Replace the trim ring / bubble enclosure. Tighten the screws with the T15 Torx screwdriver. Bosch Security Systems Installation Manual 2020-04 | 2.0 |... - Page 14 | Installing a microSD card (optional) AUTODOME IP starlight 5000i 3× Proceed with installation. 2020-04 | 2.0 | Installation Manual Bosch Security Systems...
-
Page 15: Installing A Camera Directly To An Indoor Wall
To ensure a watertight seal, wrap Teflon tape four times around the threads at the end of the wall mount. Attach the mounting cap to the wall mount. Secure the locking screw with the T15 Torx screwdriver. Bosch Security Systems Installation Manual 2020-04 | 2.0 |... - Page 16 Attach the hook at the end of the Safety Tether to the loop attached to the top of the camera. Connect the mating connectors on the user-supplied cables to the matching connectors on the camera. Refer to the chapter Connection for more information. 2020-04 | 2.0 | Installation Manual Bosch Security Systems...
- Page 17 Place the top of the camera inside the mounting cap. Rotate the camera approximately 15 degrees in a clockwise direction to lock firmly into place. Secure the safety locking screw with the T15 Torx screwdriver. Bosch Security Systems Installation Manual 2020-04 | 2.0 |...
-
Page 18: Installing A Surveillance Cabinet And Camera
Attach the hook at the end of the Safety Tether to the loop attached to the top of the camera. Connect the mating connectors on the user-supplied cables to the matching connectors on the camera. Refer to the chapter Connection for more information. 2020-04 | 2.0 | Installation Manual Bosch Security Systems... - Page 19 Place the top of the camera inside the mounting cap. Rotate the camera approximately 15 degrees in a clockwise direction to lock firmly into place. Secure the safety locking screw with the T15 Torx screwdriver. Bosch Security Systems Installation Manual 2020-04 | 2.0 |...
- Page 20 | Installing a Surveillance Cabinet and Camera AUTODOME IP starlight 5000i 2020-04 | 2.0 | Installation Manual Bosch Security Systems...
-
Page 21: Installing A Pipe Mount And Camera
Attach the pipe extension to the open end of the pipe mount. Attach the hook at the end of the Safety Tether to the loop attached to the top of the camera. Bosch Security Systems Installation Manual 2020-04 | 2.0 |... -
Page 22: Attaching The Mounting Cap And The Camera
Attach the hook at the end of the Safety Tether to the loop attached to the top of the camera. Connect the mating connectors on the user-supplied cables to the matching connectors on the camera. Refer to the chapter Connection for more information. 2020-04 | 2.0 | Installation Manual Bosch Security Systems... - Page 23 Place the top of the camera inside the mounting cap. Rotate the camera approximately 15 degrees in a clockwise direction to lock firmly into place. Secure the safety locking screw with the T15 Torx screwdriver. Bosch Security Systems Installation Manual 2020-04 | 2.0 |...
- Page 24 | Installing a Pipe Mount and Camera AUTODOME IP starlight 5000i 2020-04 | 2.0 | Installation Manual Bosch Security Systems...
-
Page 25: Installing A Roof Mount And Camera
All studs must be anchored to concrete or welded to a steel backing plate. Anchor bolts can be used for blind structures where there is no access to the rear. Apply a weatherproof sealant around each fastener hole at the mounting surface. Bosch Security Systems Installation Manual 2020-04 | 2.0 |... -
Page 26: Attaching The Mounting Cap And The Camera
To ensure a watertight seal, wrap Teflon tape four times around the threads at the end of the wall mount. Attach the mounting cap to the wall mount. Secure the locking screw with the T15 Torx screwdriver. 2020-04 | 2.0 | Installation Manual Bosch Security Systems... - Page 27 Attach the hook at the end of the Safety Tether to the loop attached to the top of the camera. Connect the mating connectors on the user-supplied cables to the matching connectors on the camera. Refer to the chapter Connection for more information. Bosch Security Systems Installation Manual 2020-04 | 2.0 |...
- Page 28 Place the top of the camera inside the mounting cap. Rotate the camera approximately 15 degrees in a clockwise direction to lock firmly into place. Secure the safety locking screw with the T15 Torx screwdriver. 2020-04 | 2.0 | Installation Manual Bosch Security Systems...
-
Page 29: Connection
4 Network device (computer with monitor, DVR/NVR, etc.) If desired, connect the alarm and/or audio wires as identified in the following table. Label ID Description Cable Wire Color ALARM_COM Alarm Communications Red ALARM_OUT Alarm Out Brown Bosch Security Systems Installation Manual 2020-04 | 2.0 |... - Page 30 Description Cable Wire Color ALARM_IN1 Alarm In 1 White ALARM_IN2 Alarm In 2 Blue AUDIO OUT Audio Out Grey Ground Black AUDIO GND Audio Ground Green AUDIO IN Audio In Purple 2020-04 | 2.0 | Installation Manual Bosch Security Systems...
-
Page 31: Troubleshooting
Note: Refer to the Error Codes section of the manual for descriptions of the error codes that appear on the OSD. The section also lists recommended actions to resolve the error codes. Bosch Security Systems Installation Manual 2020-04 | 2.0 |... -
Page 32: Decommissioning
| Decommissioning AUTODOME IP starlight 5000i Decommissioning 2020-04 | 2.0 | Installation Manual Bosch Security Systems... - Page 33 AUTODOME IP starlight 5000i Decommissioning | Bosch Security Systems Installation Manual 2020-04 | 2.0 |...
- Page 34 | Decommissioning AUTODOME IP starlight 5000i 2020-04 | 2.0 | Installation Manual Bosch Security Systems...
- Page 36 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2020...
