Wiring

4.3.1

Network and PoE power

Connect the camera to a 10/100 Base-T network:
–
–
Notice!
i
Use only PoE approved devices.
Power-over-Ethernet (PoE) can be connected at the same time as a 24V AC / 12-26V DC power
supply. If auxiliary power (24V AC / 12-26V DC) and PoE is applied simultaneously, the camera
draws its power from PoE by default, and seamlessly switches to auxiliary input if PoE power
fails.
2021-02 | V02 | F.01U.385.211

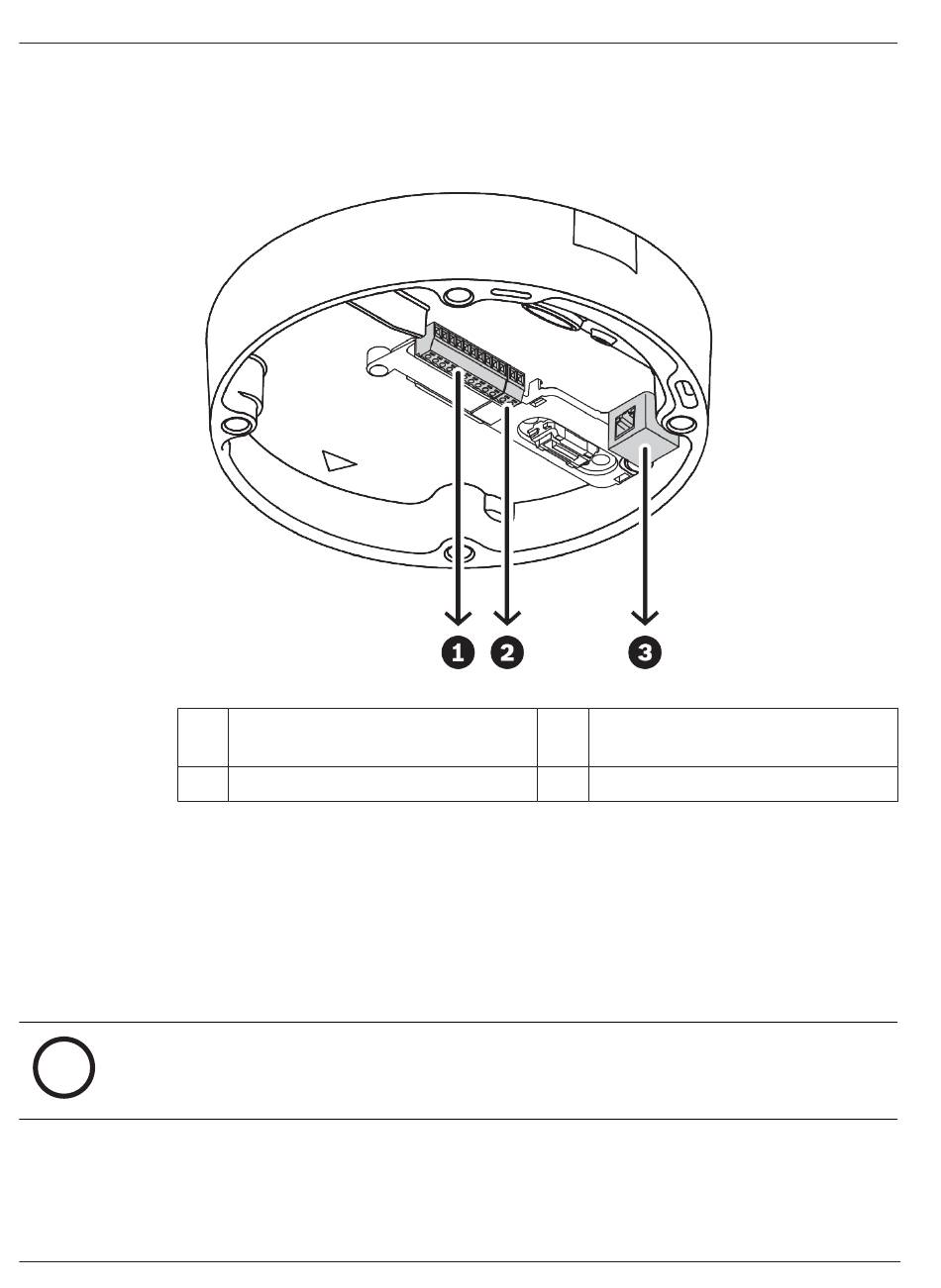

1 10-pin I/O connector.
3 RJ45 network connector.
Use STP Category 5e (or higher) cable with RJ45 connectors (the camera network socket
is Auto MDIX compliant).
Power can be supplied to the camera via the Ethernet cable compliant with the Power-
over-Ethernet standard and/or via the 24V AC / 12-26V DC auxiliary power.
2 2-pin 24V AC / 12-26V DC power input
