FLEXIDOME IP starlight 8000i

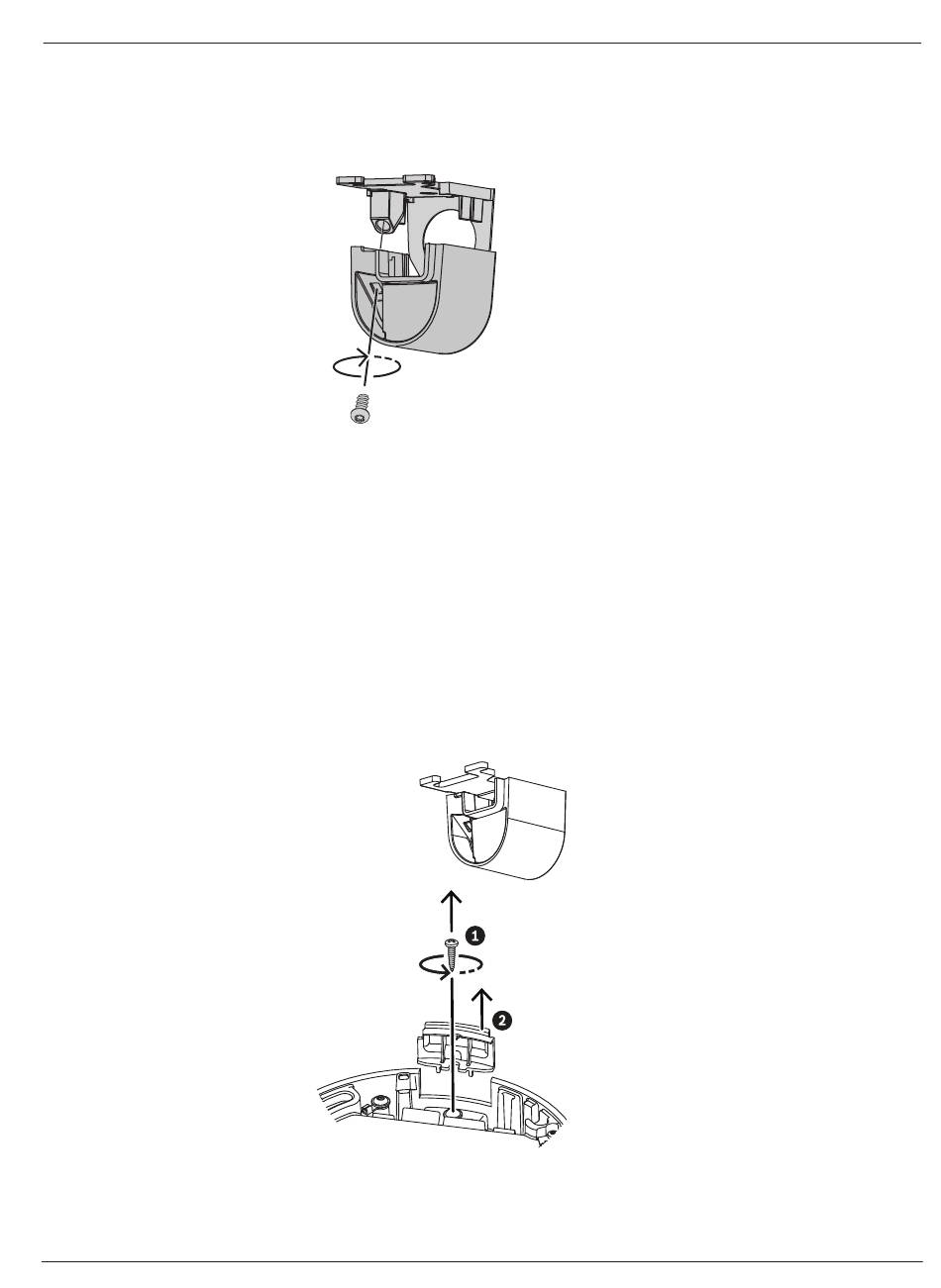

13. Install the conduit cover on the conduit plate with the bolt. Tighten the screw between
6.2

Installing the camera base

6.2.1

Before the installation

1.
2.
3.
4.
Bosch Security Systems B.V.
1.4 and 2 Nm (1 lbfft and 1.5 lbfft).
With the camera inside the box, remove the tapes from the sides of the camera base.
Remove the camera base from the box.
If it is not preferred for installation, remove the optional CAT5e patch cable (50 cm /
19.7 in.).
If the installation of the mounting plate was done with the conduit, remove the door on
the camera base as shown in the image. Keep the screw and lid.
Installation manual
Hardware installation | en
2021-02 | V02 | F.01U.385.211
23
