Installing the mounting plate

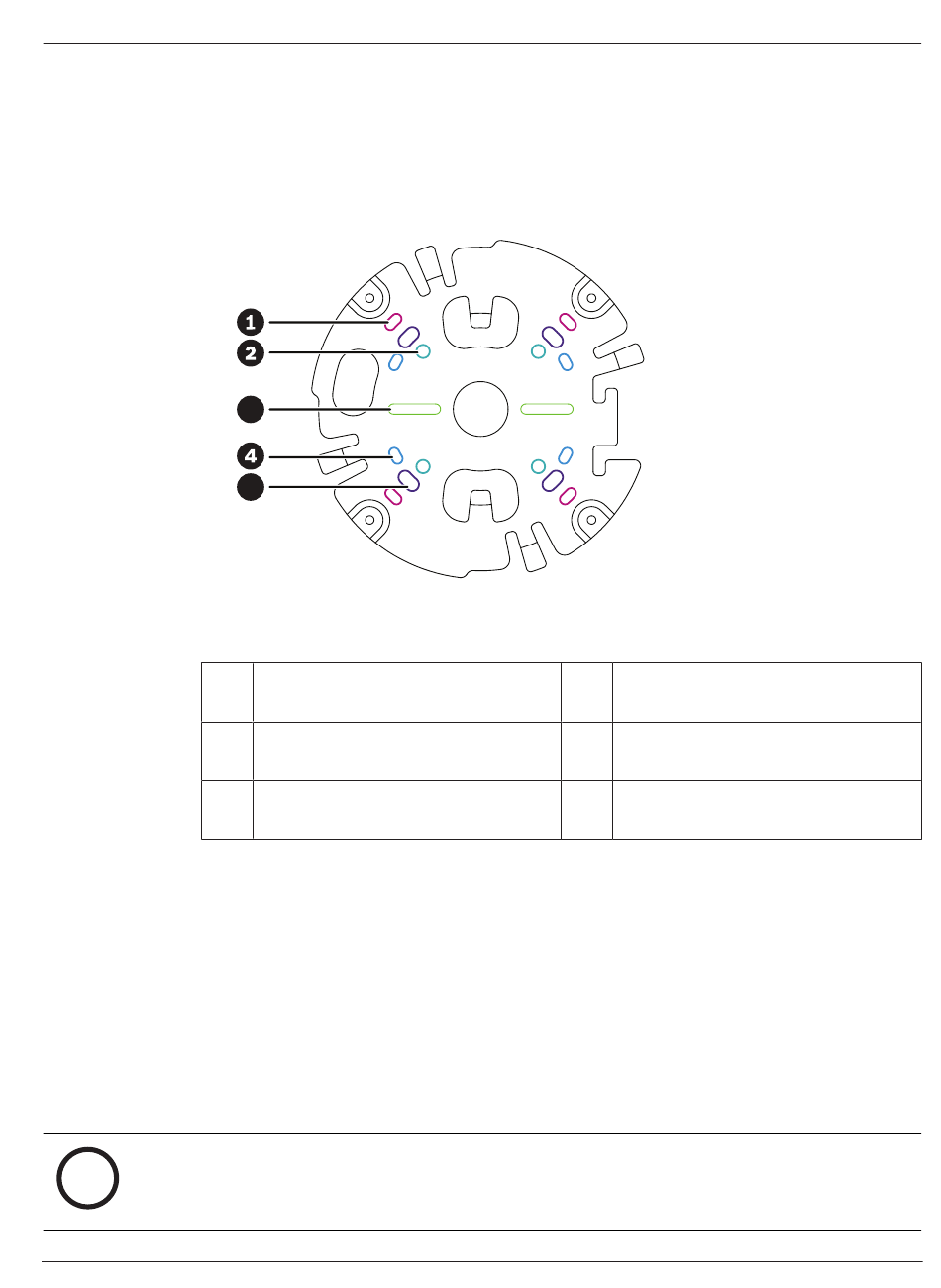

The mounting plate is used to fix the camera to a flat surface. It offers different holes and
slots for a variety of fixing options.
Installation options
The camera has two configurations for surface mounting:
–
–
Additionally, the camera can cover various mounting options when combined with the
available accessories. See the Mounting accessories, page 31 chapter for the available
accessories.
Notice!
i
The plugs and screws for surface mounting are not supplied with the camera.
Bosch Security Systems B.V.
3
5
1 10.2 cm / 4 in. Square junction box
3 Single gang box or universal slot,
45 mm / 1.8 in to 85 mm/3.3 in
5 Ceiling/wall mount and pendant
interface plate (NDA-8000-PIP(W))
Refer to Installing the mounting plate without conduit, page 20 , if the wires are not on
the outside of the surface.
Refer to Installing the mounting plate with conduit, page 21 , if the wires are on the
outside of the surface.
2 Pole mount (NDA-U-PMAL/NDA-U-
4 Double gang box
Installation manual
Hardware installation | en
PMAS)/Corner mount (NDA-U-CMA)
Note: Only options 1, 2, and 5 maintain
IK10+ rating
