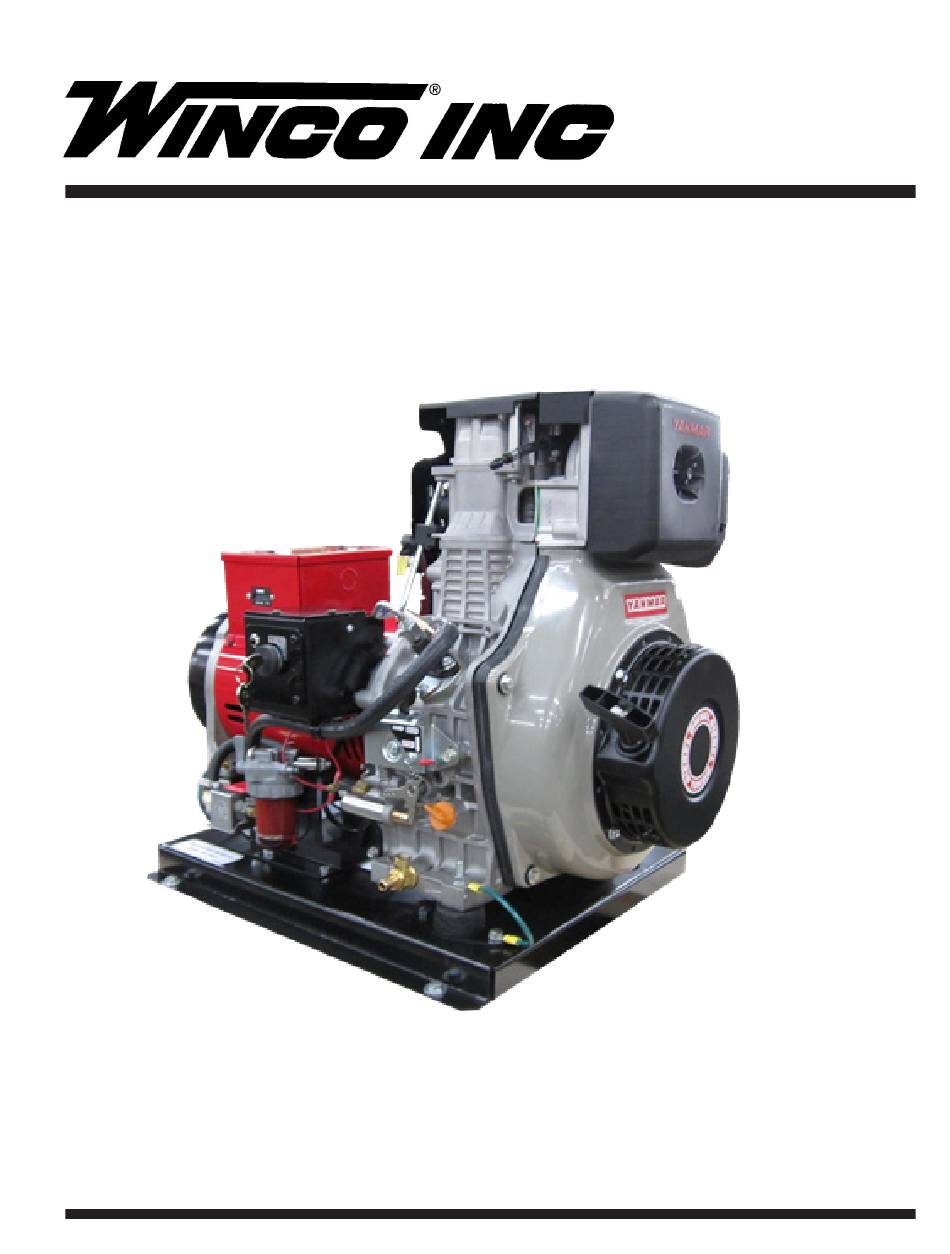

- Page 1 EMERGENCY RESCUE SERIES INSTALLATION, OPERATIONS and MAINTENANCE INSTRUCTIONS EC6010DR/S OWNERS MANUAL 60706-214...
-
Page 2: Table Of Contents
NUMBER HERE expect from WINCO should you need service assistance No other WINCO generator has the same serial number as in the future. yours. It is important that you record the number and other... -
Page 3: Guide To Product Safety
FIRE HAZARD - Deisel fuel presents a hazard of possible IMPORTANT SAFETY explosion and/or fire. INSTRUCTIONS Do not smoke or use open flame near the generator set. Keep a fire extinguisher nearby and know its proper SAVE THESE INSTRUCTION use. Fire extinguishers rated ABC by NFPA are This manual contains important instructions that appropriate. -
Page 4: Specification Table
SPECIFICATIONS 1. DO NOT remove from the base assembly. Removal of the generator from the base assembly or operating without the shock MODEL EC6010DR/S mounts installed may cause excessive vibration and damage to the engine generator set. Generator Surge Watts 6000 2. -
Page 5: Unpacking The Unit
Generator Motor Size Model (code “G” capacitor start) EC6010DR 3.0 HP Trying to start a larger motor or higher code (ie. J or K) motor may a. Make sure the engine is level result in damage to both the generator and the electric motor b. -
Page 6: Operation/Installation
This engine generator set consists of a Yanmar diesel engine and a 6 kw WINCO generator end. The Yanmar engine is a electric key start engine with a low oil pressure protection. This generator set has been pre-wired to allow the use of a second key switch at a remote location to start the engine generator set. -
Page 7: Starting
1. Engine oil, fill as required with correct grade and 2. Hot weather quantity. a. Be sure to use the proper oil for the temperature 2. Connect and prime the fuel line. The electric fuel pump can be expected. used to fill the line and prime the injector pump. DO NOT RUN THE ENGINE UNTIL THE NEW FUEL LINE HAS BEEN FULLY b. -
Page 8: Wiring
The engine will govern itself at full speed. Intentionally overriding WIRING the governor and operating the generator at low voltage may damage both the generator and any load connected to it. These engine generator sets are designed for mobile vehicular Running the engine at excessively high speeds results in high use. -
Page 9: Engine Care
LOW OIL PRESSURE SHUTDOWN SYSTEM This low oil warning system will automatically stop the engine before the oil pressure reaches an operational danger point. This feature is designed to prevent costly repairs and downtime. Use of the oil safety shutdown system on applications that are subject to shock, bumping or severe angles of operation (in excess of 15 degrees) should be avoided. -
Page 10: Exhaust & Controls Part List
TROUBLE SHOOTING —————————————————————————-- PROBLEM (SYMPTOMS) POSSIBLE CAUSES —————————————————————————— Voltage too high *Engine speed is too high. Won’t Start (electric) *Fouled fuel injector. —————————————————————————— *Out of fuel. Generator overheating *Overloaded. *Dead battery. *Insufficient ventilation. *Defective start switch. —————————————————————————— *Defective start solenoid. ——————————————————————————... -
Page 11: Engine Generator Set
1335-00 Page 9 60706-214... -
Page 12: Key Switch Parts List
KEY SWITCH ASSEMBLY PART NBR. DESCRIPTION 15773-001 Key Switch Cover 15773-002 Key Switch Bracket 59944-016 12 VDC Relay 15806-020 Key Switch 80623-008 Terminal Block 99958-003 Decal Terminal Strip GENERATOR ASSEMBLY REF PART NBR. QTY DESCRIPTION REF PART NBR. QTY DESCRIPTION 15013-000 #10-32 X 3.5”... -
Page 13: Outline Drawing
1335-00 60706-214 Page 11... -
Page 14: Dc Wiring Diagram
1335-00 Page 12 60706--214... -
Page 15: Ac Wiring Diagram
1335-00 Page 13 60706-214... -
Page 16: Month Warranty
To the extent permitted by law, any and all warranties, including those of merchantability and fitness for a particular purpose, are limited to 12 months from date of purchase. In no event is WINCO liable for incidental or consequential damages.
