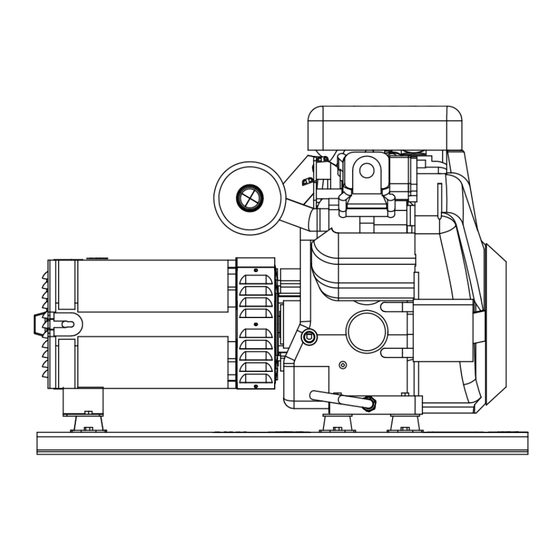

INSTALLATION AND
OPERATORS MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as
yours. If you should ever need to contact us concerning this
unit, it will help us to respond to your needs faster.
MODEL
SERIAL NUMBER
PURCHASE DATE
DEALER NAME
DEALER PHONE #
www.wincogen.com
EC18000VE/D
EC22000VE/A
EC22000VE/B
EC25000VE/A
Advertisement
Related Manuals for Winco EC25000VE/A
Summary of Contents for Winco EC25000VE/A
- Page 1 OPERATORS MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster.
- Page 2 STARTING ELECTRIC MOTORS “Troubleshooting Tables” near the end of this manual. PREPARING THE UNIT The warranty listed in the manual describes what you can UNPACKING expect from WINCO should you need service assistance in the future. VENTILATION GASOLINE FUEL SUPPLY...
- Page 3 SAFETY INFORMATION D. Keep a fire extinguisher nearby and know its proper This engine generator set has been designed and use. Fire extinguishers rated ABC by NFPA are manufactured to allow safe, reliable performance. Poor appropriate. maintenance, improper or careless use can result in E.
- Page 4 SPECIFICATIONS EC18000VE EC22000VE Starting Watts 18,000 Starting Watts 22,000 22,000 22,000 22,000 Running Watts 15,000 Running Watts 19,000 19,000 19,000 19,000 Volts 120/240 Volts 120/240 120/208 120/240 277/480 Phase 62.5 Phase Single Three Three Three Amps 120/240V 125/62.5 Amps CB Size 60 Amp CB Size 80 Amp...
- Page 5 EC25000VE Starting Watts 25,000 25,000 25,000 25,000 Running Watts 20,000 20,000 20,000 20,000 Volts 120/240 120/208 120/240 277/480 Phase Single Three Three Three Amps CB Size 90 Amp 80 Amp 80 Amp 35 Amp Hertz ENGINE Manufacturer Briggs & Stratton Model Vanguard 61G277 0044 J1...
- Page 6 INTRODUCTION TESTING POLICY Before any generator is shipped from the factory, it is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current, and frequency are carefully checked. Rated output of generator is based on engineering tests of typical units, and is subject to, and limited by, the temperature, altitude, fuel, and other conditions specified by the manufacturer of applicable engines.
- Page 7 UNIT CAPABILITIES GENERATOR CONNECTIONS CAUTION: EQUIPMENT DAMAGE Running the generator set under these conditions may The diagram below represents the EC18000VE, 15,000 result in damage to the generator stator as well as the watt (rated output) generator. A & B represent the 120 volt motor winding.
- Page 8 If any damage is noted, it is always easiest to properly. refuse the shipment and let WINCO take care of the freight claim. If you sign for the unit, the transfer of the The use of fuel additives, such as Sta-Bil, or an equivalent ownership requires that you file the freight claim will minimize the formation of fuel gum deposits.
- Page 9 NEGATIVE battery terminal to GROUND. Outdoor temperatures determine the proper oil viscosity for the engines. Winco recommends our 5W-30 fully synthetic For your safety, always connect the positive battery cable to oil to give you excellent protection in cold temperatures the “bat+”...
- Page 10 INITIAL START UP The throttle control on these generators is preset and STOPPING AND STORING locked to operate at 3600 RPM (nominal) with no load 1. Move the key to the “OFF” position. speed set at 3690 RPM. Only a trained service technician 2.
- Page 11 under varying loads: LOAD vs. OUTPUT Generator Speed Frequency Voltage Load (RPM) (Hz) None 3690 61.5 125V Half 3600 60.0 120V Full 3510 58.5 115V The speed of the engine was carefully adjusted at the factory so that the generator produces the proper voltage and frequency.
- Page 12 CONNECTING THE LOADS GROUNDING Failure to properly limit and balance the load applied to the generator will cause the generator to produce low voltage and may damage the engine generator set. It may All units must be grounded. Different installations will also cause severe damage to the loads connected to the require different grounding requirements.
- Page 13 E. To loosen debris, gently tap Outdoor temperatures determine the proper oil viscosity for the air filter on a hard surface. the engines. Winco recommends our 5W-30 fully synthetic If the air filter is excessively oil to give you excellent protection in cold temperatures dirty replace with a new filter.
- Page 14 H. Install the air filter and secure the retainer and nut. I. Install and secure the cover. SPARK PLUG Replace annually or every 300 hours of operation. Always replace with the same spark plug that came in the engine and check gap before installing. Spark plug gap is 0.030”. Poor spark will also occur if spark plug wire does not fit firmly on spark plug.
- Page 15 GENERATOR CARE Proper care and maintenance of the generator is necessary to ensure a long trouble free life. EXERCISING THE GENERATOR The generator should be operated every three to four weeks. It should be operated for a period of time sufficient to warm the unit up and to dry out any moisture that has accumulated in the windings.
- Page 16 TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Fouled spark plug Out of fuel Start switch in OFF position Fuel Valve turned off Plugged fuel filter Blown fuse in key switch Voltage too low Engine speed is too low Generator overloaded Defective stator Defective rotor (field)
- Page 17 RECEPTACLE WIRING DIAGRAM EC18000VE 60706-231/I...
- Page 18 AC WIRING EC22000VE & EC25000VE 1-PHASE 3-PHASE 120/240 120/208 LOW WYE 3-PHASE 3-PHASE 120/240 DELTA 277/480 HIGH WYE 60706-231/I...
- Page 19 DISTRIBUTION WIRING DIAGRAM EC22000VE 120/240 SINGLE PHASE 120/208 & 120/240 THREE PHASE 277/480 THREE PHASE 60706-231/I...
- Page 20 DISTRIBUTION WIRING DIAGRAM EC25000VE 120/240 SINGLE PHASE 120/208 THREE PHASE 120/240 THREE PHASE 277/480 THREE PHASE 60706-231/I...
- Page 21 2020 generator. In California, new equipment that uses small off-road engines must be designed, built, and equipped to meet the State’s stringent anti-smog standards. WINCO must warrant the evaporative emission control system on your generator for the period listed below provided there has been no abuse, neglect or improper maintenance of your equipment leading to the failure of the evaporative emission control system.
- Page 22 Air cooled units purchased for stock have 1 year to be sold. The warranty to the original retail customer commences on the date of sale of the product to them. All liquid cooled units have 180 days from the Winco invoice to submit a start up date. If no startup form is submitted, then warranty period starts on the Winco invoice date unit was sold.
- Page 23 Note 2: 3rd Year warranty coverage is parts only/no labor. Note 3: Round trip mileage is limited to 200 miles per trip and a total of 2 trips per repair unless authorized in writing by the WINCO Service Dept.
- Page 24 225 S. CORDOVA AVE • LE CENTER, MN 56057 Sales: 507-357-6821• sales@wincogen.com Service: 507-357-6831 • service@wincogen.com www.wincogen.com 60706-231/I...
