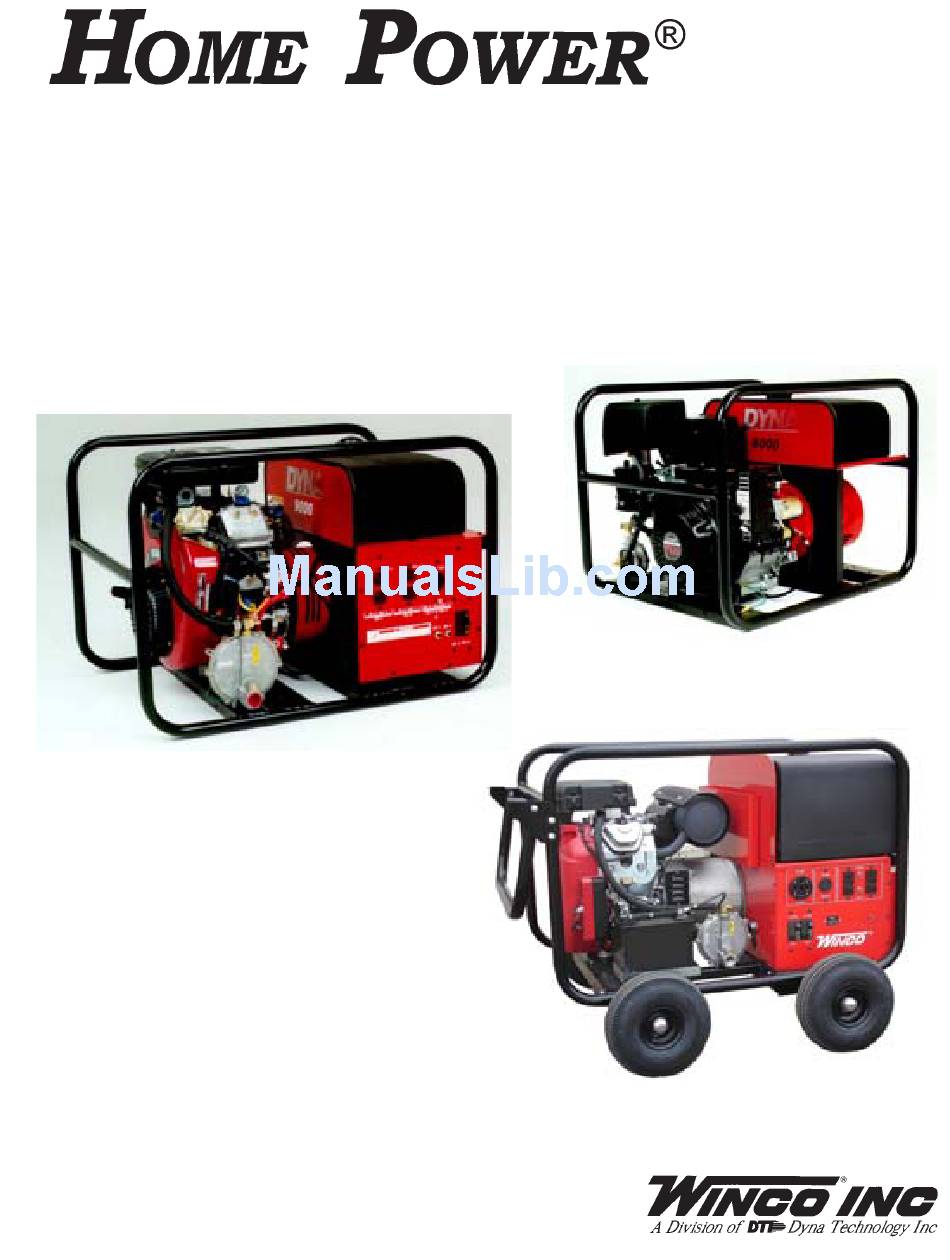

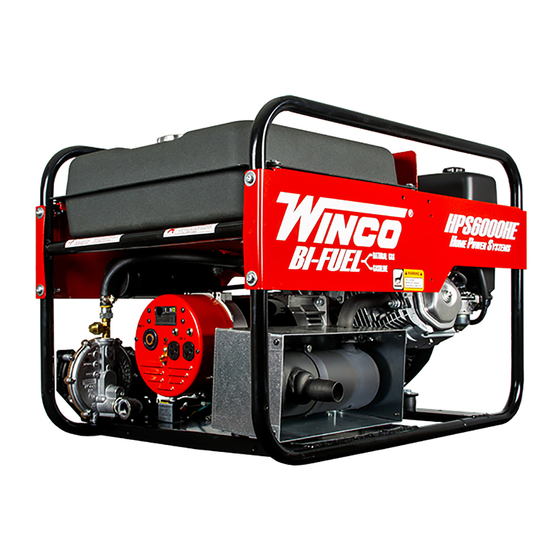

  • Page 1 TRI-FUEL PORTABLE GENERATORS OWNERS MANUAL MODELS HPS6000HE/E HPS9000VE/C HPS12000HE/A HPS6000HE HPS9000VE HPS12000HE INSTALLATION, OPERATION, and MAINTENANCE INSTRUCTIONS...
  • Page 2: Table Of Contents

    “Things To Check” section near the end of this manual. Battery Installation The warranty listed in this manual describes what you Battery Charging can expect from WINCO, Inc should you need service Low Oil Level Shutdown System assistance in the future. LP/NG INSTALLATION...
  • Page 3: Guide To Product Safety

    3. DEADLY EXHAUST GAS - Exhaust fumes from any GUIDE TO PRODUCT SAFETY gasoline engine contain carbon monoxide, an invisible, odorless and deadly gas that must be mixed with fresh air. This engine generator set has been designed and manufactured to allow safe, reliable performance. Poor a.
  • Page 4: Specifications

    SPECIFICATIONS MODEL HPS12000HE MODEL CSAHPS6000HE Generator Surge Watts* 12000 Generator Continuous Watts* 10800 Surge Watts* 6000 Volts 120/240 Continuous Watts* 5500 AMPs @ 240 Volts 45.0 Volts 120/240 AMPs @ 120 Volts 90.0 AMPs @ 240 Volts 22.9 * Derate 10% for LP and 20% for NG AMPs @ 120 Volts 45.8 * Derate 10% for LP and 20% for NG...
  • Page 5: Unit Capabilities

    The figures given above are for an average load such as a UNIT CAPABILITIES blower or fan. If the electric motor is connected to a hard Generator Connections - The diagram below represents a starting load such as an air compressor, it will require more typical 5500 watt generator.
  • Page 6: Unit Preparation

    UNIT PREPARATION Model BCI Group Capability (minimum) Before your engine generator was shipped from our factory HPS6000HE 275 CCA it was fully checked for performance. The generator was HPS9000E 275 CCA load tested to its full capacity, and the voltage and HPS12000HE 300 CCA frequency were carefully checked and adjusted.
  • Page 7: Battery Charging

    oil level in the crankcase can fall below a safe limit, the Oil DANGER – Explosive Fire Risk Alert system will automatically shut down the engine (the engine switch will remain in the ON position). Never smoke when near batteries Do not cause a flame or spark in the battery area GASOLINE FUEL Always discharge static electricity from your body...
  • Page 8: Installing The Fuel Line

    12 volt DC fuel solenoid valve. This optional 12 volt DC valve is available through your local Winco dealer. The fuel line used to connect the supply line to the demand regulator must be a locally approved flexible fuel line.
  • Page 9: Tank Sizing

    Natural Gas FROM LP/NG TO GASOLINE 1. With the engine running turn off the LP/NG fuel UNIT OFF LINE PSI 7-11 in 7-11 in supply. 4-6 oz 4-6 oz 2. Run the engine until it runs out of fuel. STARTING LINE PSI 7-11 in 7-11 in 3.
  • Page 10: Starting Hints

    1. Turn on the fuel supply. doesn’t deteriorate and clog the fuel system. Note: 2. Move the choke to the full "on" position. A warm The use of a fuel additive, such as STA-BIL, or an engine will require less choking than a cold engine. equivalent, will minimize the formation of gum 3.
  • Page 11: Connecting The Loads

    12 kW has two 4-wire plugs. watch the clock should be correct within +/- 2 seconds per minute. MODEL NEMA SPEC SIZE WINCO CONNECTING THE LOADS FOR PLUG PART # HPS6000HE L14-30P 30 AMP 64492-000...
  • Page 12: Operator Care And Maintenance

    Be sure the oil level is maintained. have to be installed, such as the Emergency Transfer/Service to the “FULL” mark on the dipstick, DO NOT OVER (ET/S) system available through your Winco dealer. The FILL emergency distribution panel must be installed by a licensed 3.
  • Page 13: Cleaning

    2. Generator Maintenance - Any major generator TROUBLESHOOTING HINTS service including the installation or replacement of parts should be performed only by a qualified PROBLEM (SYMPTOMS) POSSIBLE CAUSES electrical service technician. USE ONLY FACTORY —————————————————————————— APPROVED REPAIR PARTS. Won’t Start *Low Oil Level.
  • Page 14 DATE ITEM WORK PERFORMED 8199-00 Page 12 60707-117...
  • Page 15: Warranty

    Neither the manufacturer nor the seller shall be liable for any injury, loss or damage arising out of improper use or operation of this unit. In no event is WINCO liable for incidental or consequential damages.
  • Page 16 225 S. Cordova Ave. LeCenter, Mn 56057 Phone (507) 357-6831 FAX - (507) 357-4857 60707-117 www.wincogen.com 8199-00...
