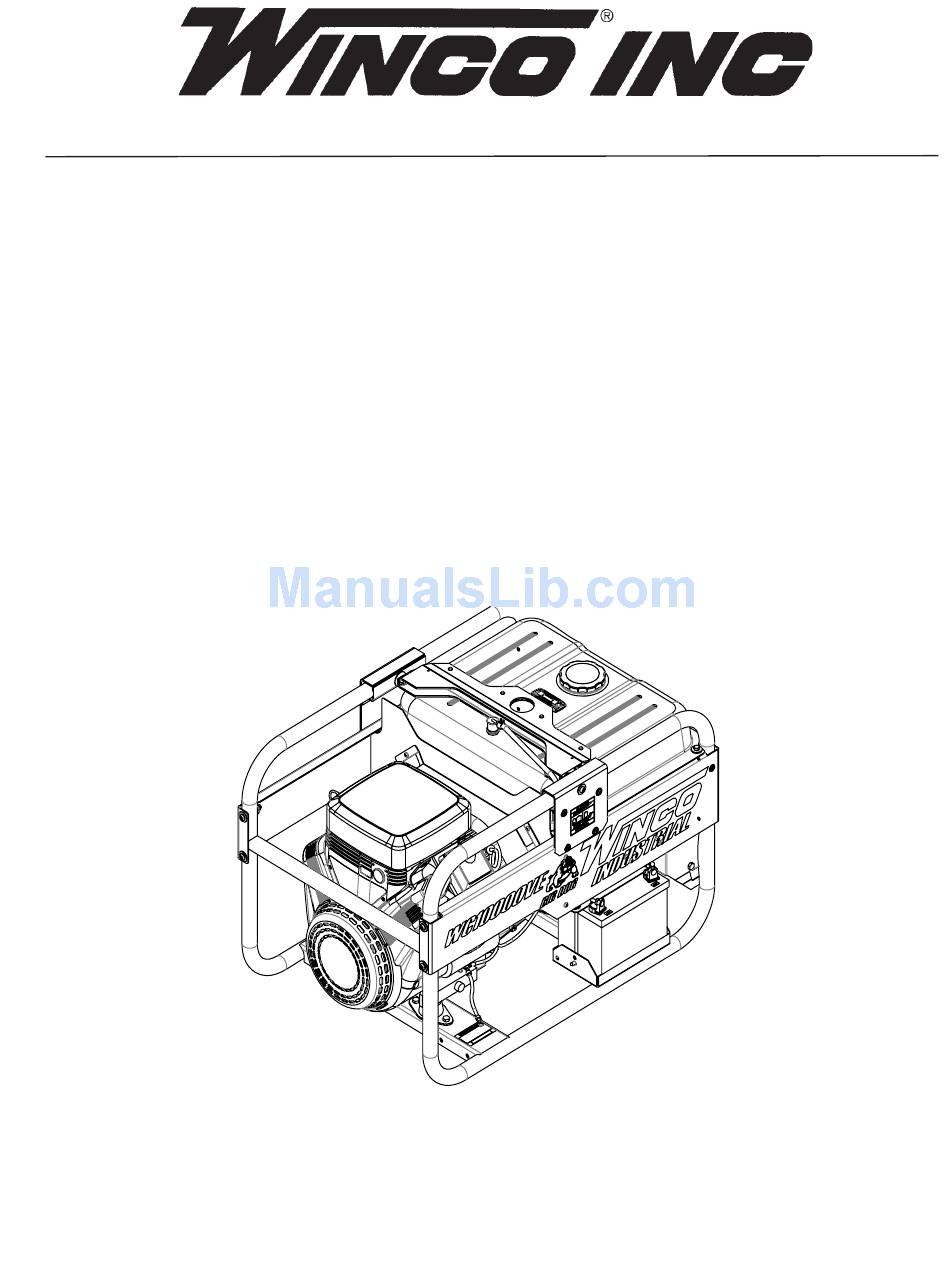

- Page 1 INDUSTRIAL PORTABLE INSTALLATION AND OPERATORS MANUAL WC10000VE/E WINCO INC. 225 S. CORDOVA AVE. LE CENTER, MN 56057 507-357-6821 SERVICE DEPT. 507-357-6831...
-
Page 2: Table Of Contents
Should you experience a problem please follow the “Troubleshooting Tables” near the end of this WC10000VE/E MODEL manual. The warranty listed in the manual describes what you can expect from WINCO should you need SERIAL NUMBER_________________________ service assistance in the future. PURCHASE DATE_________________________ TABLE OF CONTENTS... -
Page 3: Safety Information
SAFETY INFORMATION b. Keep fuel containers out of reach of children. c. Do not smoke or use open flame near the generator set or fuel tank. This engine generator set has been designed and d. Keep a fire extinguisher nearby and know its manufactured to allow safe, reliable performance. proper use. Fire extinguishers rated ABC by Poor maintenance, improper or careless use can NFPA are appropriate. -
Page 4: Unit Capabilities
GENERATOR CONNECTIONS is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current WC10000VE: 120 volt and 240 volt receptacles and frequency are carefully checked. are provided for connection to various loads. The diagram below represents this 9,600 watt (rated Rated output of generator is based on engineering output) generator. A & B represent the 120 volt out-... -
Page 5: Preparing The Unit
Self-exciting generators respond to severe overload- LUBRICATION ing differently than utility power. When overloaded, the engine is not able to supply enough power to Before starting the engine, fill the crankcase to the bring the electric motor up to operating speed. The proper level with a good quality oil. The recom- generator responds with high initial starting current, mended grade of oil and quantity of oil required is but the engine speed drops sharply. -
Page 6: Battery Installation
Oil Recommendations Con’t BATTERY INSTALLATION * Below 40 F (4 C) the use of SAE30 will result in This engine generator set is shipped with a battery tie hard starting. down kit for customer installation. This kit consists of ** Above 80 F (27 C) the use of 10W-30 may cause a battery tie down and hardware for installation of the increased oil consumption. -
Page 7: Oil Alert System
OIL ALERT SYSTEM rpm). 3. When the electrical load is turned off, the control This WINCO Industrial generator is equipped stan- module will sense that there is no longer any current dard with low oil shutdown systems. The Briggs and flow and the automatic idle control will once again Stratton engine uses an oil pressure switch system. -
Page 8: Basic Operation
INITIAL START UP 6. When the engine starts, open the choke gradually. 7. The engine should promptly come up to The throttle control on these generators is preset operating speed. and locked to operate at 3600 RPM (nominal) with no load speed set at 3690 RPM. Only a trained NOTICE: service technician should be allowed to adjust this Do not allow the starter grip to snap back against... -
Page 9: Stopping And Storage
STOPPING AND STORAGE and most appliances. However, electronic equip- ment and clocks will be affected if correct RPM is not maintained. See Load vs. Output chart. 1. Move the on/off switch to the “OFF” position. 2. Before extended storage (over 30 days) certain Although individual units and models vary slightly, precautions must be taken to ensure the fuel doesn’t the normal voltage and frequency of the engine-gen- deteriorate and clog the fuel system. -
Page 10: Connecting The Loads
Output voltage should be checked periodically to GROUNDING ensure continued proper operation of the generat- ing plant and appliances. If the generator is not All units must be grounded. Drive a 3/4 or 1” cop- equipped with a voltmeter, it can be checked with a per pipe or rod into the ground close to the engine- portable meter. -
Page 11: Engine Care
Check valve clearance. Adjust if necessary. be installed, such as the Emergency Transfer/Service Every 400 Hours or Annually WARNING (ET/S) system available through your WINCO dealer. Fuel and its vapors are extremely flammable and explosive. Change air filter The emergency distribution panel must be installed Fire or explosion can cause severe burns or death. -
Page 12: Generator Care
g. Remove oil filler plug and refill with new oil. b. Remove the nut (Ref “D”) and the retainer. Refer to the table on page 5 for the proper (Ref “E”) grade of oil based on your operating c. Remove the air filter. (Ref “F”) temperature. d. Remove the pre-cleaner (Ref “G”) from the air filter. NOTE: This engine requires 46 to 48 ounces of oil e. To loosen debris, gently tap the air filter on a if it is completely drained. Use caution when refilling hard surface. If the air filter is excessively dirty, the engine as some residual oil may have remained... -
Page 13: Generator Specifications
2. Generator Maintenance - Any major generator Voltage too low *Engine speed is too low. service, including the installation or replacement *Generator overloaded. of parts, should be performed only by a qualified *Defective stator. electrical service technician. USE ONLY FACTORY *Defective rotor (field). APPROVED REPAIR PARTS. *Defective Capacitor. ——————————————————————— a. Bearing - The bearing used in these generators Circuit Breaker *Defective load. -
Page 14: Control Panel Wiring Diagram
2015-00 60706-232... -
Page 15: Warranty Information
THERE IS NO OTHER EXPRESS WARRANTY. To the extent permitted by law, any and all warranties, including those of merchantability and fitness for a particular purpose, are limited to 24 months from date of purchase. In no event is WINCO liable for incidental or consequential damages. Note: Some states do not allow limitation on the duration of implied warranty and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply in every instance. This warranty gives you specific legal rights which may vary from state to state. -
Page 16: Warranty Statement
WINCO recommends that you retain all receipts covering maintenance on your genera- tor, but WINCO cannot deny warranty solely for lack of receipts. As the generator owner, you should be aware that WINCO may deny you warranty coverage if your genera- tor or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
