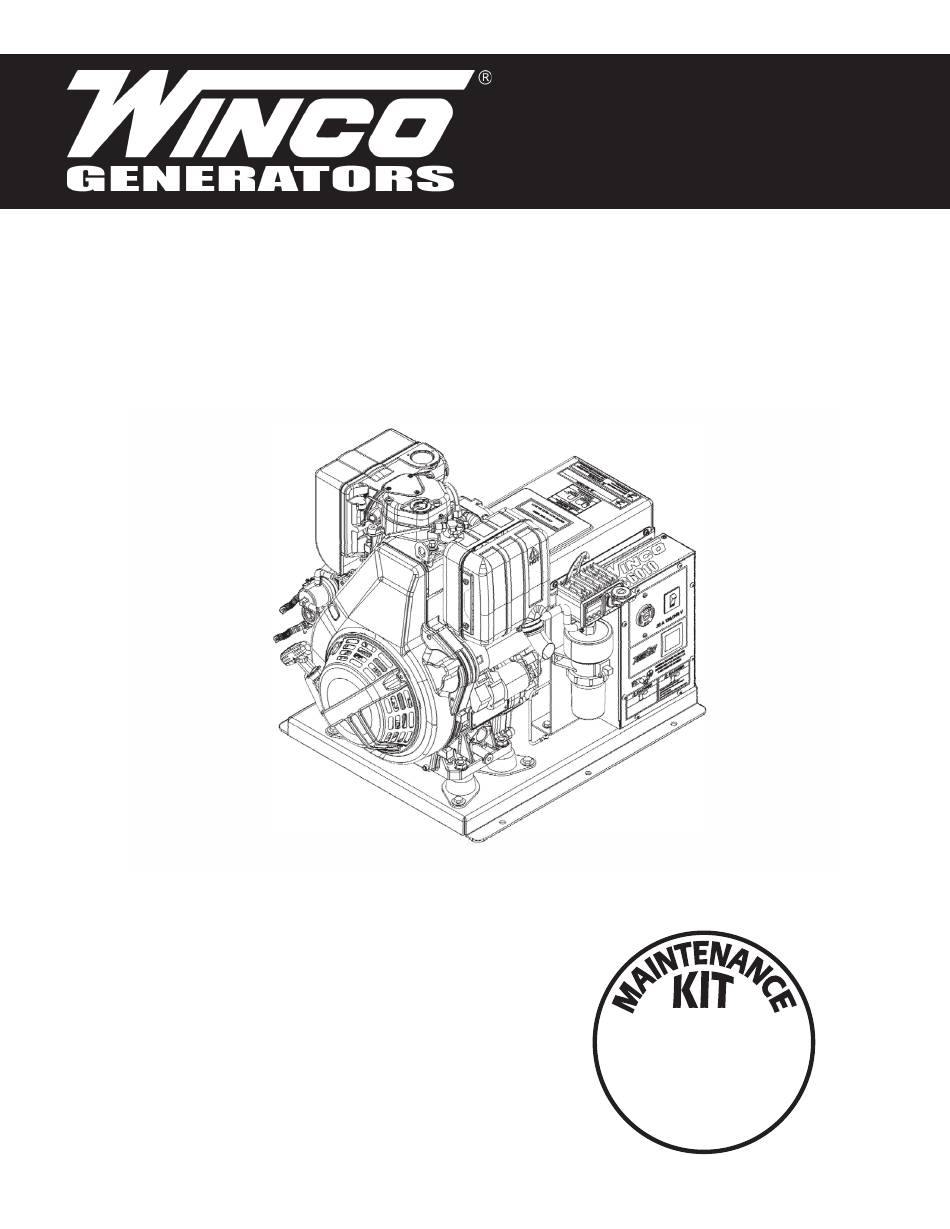

EC6010DR/T
EC6010KE-03/B
GENERATORS
INSTALLATION AND
OPERATORS MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as yours.
If you should ever need to contact us on this unit, it will help us to
respond to your needs faster.
MODEL __________________________________________________
16200-014
SERIAL NUMBER _________________________________________
PURCHASE DATE _________________________________________
DEALER NAME ___________________________________________
DEALER PHONE # ________________________________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winco EC6010KE-03/B
Summary of Contents for Winco EC6010KE-03/B
- Page 1 OPERATORS MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us on this unit, it will help us to respond to your needs faster.
-
Page 2: Table Of Contents
LOAD TYPES “Troubleshooting Tables” near the end of this manual. PREPARING THE UNIT The warranty listed in the manual describes what you can UNPACKING expect from WINCO should you need service assistance in the future. COMPARTMENT INSTALLATION LUBRICATION OIL RECOMMENDATIONS... -
Page 3: Safety
SAFETY This engine generator set has been designed and D. Keep a fire extinguisher nearby and know its proper manufactured to allow safe, reliable performance. Poor use. Fire extinguishers rated ABC by NFPA are maintenance, improper or careless use can result in appropriate. -
Page 4: Specifications
SPECIFICATIONS INTRODUCTION TESTING POLICY Model EC6010DR/T EC6010KE-03/B Starting Watts 6,010 Before any generator is shipped from the factory, it is fully Running Watts checked for performance. The generator is loaded to its EC6010DR/T 5,160 full capacity, and the voltage, current, and frequency are... -
Page 5: Unit Capabilities
UNIT CAPABILITIES is not able to supply enough power to bring the electric GENERATOR CONNECTIONS motor up to operating speed. The generator responds with high initial starting current, but the engine speed drops EC6010: 120 Volt and 240 Volt receptacles are provided sharply. -
Page 6: Preparing The Unit Unpacking
1. As you receive your unit, it is critical to check it for any damage. If any damage is noted, it is always easiest to refuse the shipment and let WINCO take care of the freight Oil is added to the engine by removing the oil cap and claim. -
Page 7: Battery Installation
WARNING: FIRE DANGER WARNING: PERSONAL INJURY: Diesel fuel is flammable and can be ignited, causing or Lead acid batteries produce explosive hydrogen gas enlarging fires when proper precautions are not taken. when charging. Keep sparks, flames, and burning cigarettes away from the battery. Ventilate the area when charging or using the battery in an enclosed Never use fuel that has been stored for an extended period space. -
Page 8: Control Panel
maintain your battery. When refilling the battery with water 2. Remove the 4 screws around the top of the genend and use only distilled water. Tap water will shorten the service remove the cover. There is a rubber grommet that life of the battery. - Page 9 3. Reconnect the ground wires. The green wire connects to the skid base. There may already be a ground wire screwed down, add the green wire and re-secure the screw. The black, longer wire will connect to the front of the engine.
-
Page 10: Connecting Fuel Supply
CONNECTING FUEL SUPPLY Fuel Pump Specifications: Voltage 9.0 to 11.5 Amps 1.6 average Average Lift 6 feet The fuel pump is self-priming and self-regulating. Tank size,tank location, hose size, hose routing, and hot spots all play a role in a successful fuel tank installation. Preferred fuel installations use 1/4”... -
Page 11: Initial Start Up
INITIAL START UP NOTE: While the engine is running, all warning lights The throttle control on these generators is preset and should be off except the OK light. locked to operate at 3600 RPM (nominal) with no load speed set at 3690 RPM. Only a trained service technician should be allowed to adjust this speed setting. -
Page 12: Connecting The Loads
Your individual loads must be protected by individual circuit breakers mounted in some type of distribution panel. This Your WINCO portable generator ships with a bonded location will also be where you will install your neutral neutral. You can safely use this generator without external to ground bond. -
Page 13: Wiring
WIRING Plug your tools such as drills, saws, blowers, sump pump, and other items to be powered directly into the generator receptacles. Before plugging in all the tools and cord sets, recheck the rating of the generator set. Be sure it can handle the intended load and is compatible with the voltage, phase, and current ratings. -
Page 14: Yourgen
YOURGEN The speed of the engine was carefully adjusted at the The WINCO YourGen meter allows you to see useful factory so that the generator produces the proper voltage information about your generator from the front panel and frequency. For normal usage, the speed setting should by displaying RPMs, Voltage, frequency, load, hours, and not be changed. - Page 15 The battery has a 10 year lifetime, in the event you need to It is good practice to monitor the YourGen Meter when change the battery, follow these instructions: applying load. This will ensure the generator is balanced. 1. The battery is located in the control box near potentially live AC terminals.
-
Page 16: Engine Care
Be sure the oil level is maintained. Fill to the “FULL” mark on the dipstick. Outdoor temperatures determine the proper oil viscosity for the engines. Winco recommends our 5W-30 fully synthetic AIR FILTER oil to give you excellent protection in cold temperatures while maintaining excellent performance in warmer Clean the filtering element with air blast. - Page 17 B. Remove the wing nut. C. Remove the filter element. D. Check the rubber seal is undamaged. E. To loosen debris, gently tap the air filter on a hard surface. If the air filter is excessively dirty replace with a new filter.
-
Page 18: Generator Care
GENERATOR CARE TROUBLESHOOTING Problem Possible Causes Proper care and maintenance of the generator is necessary Won’t start Low oil level to ensure a long trouble free life. Out of fuel Start switch in OFF position EXERCISING THE GENERATOR Fuel Valve turned off Plugged fuel filter The generator should be operated every three to four Blown fuse in key switch... -
Page 19: Control Panel Wiring Diagram
CONTROL PANEL WIRING DIAGRAM OPM-125/D... -
Page 20: Ca Evap Emission Control
WINCO written instructions and applicable codes. WINCO’s sole liability, and Purchaser’s sole remedy for a failure under this warranty, shall be limited to the repair of the product. At WINCO’s option, material found to be defective in material or workmanship under normal use and service will be repaired or replaced.
