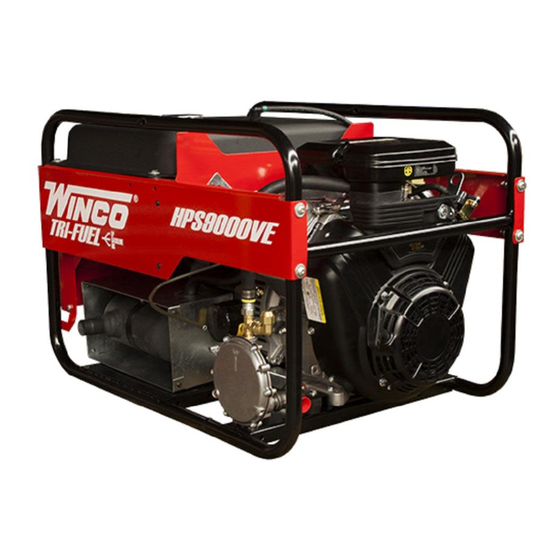

Winco HPS9000VE Installation And Operator's Manual

Winco HPS9000VE Installation And Operator's Manual

Tri-fuel generator

Advertisement

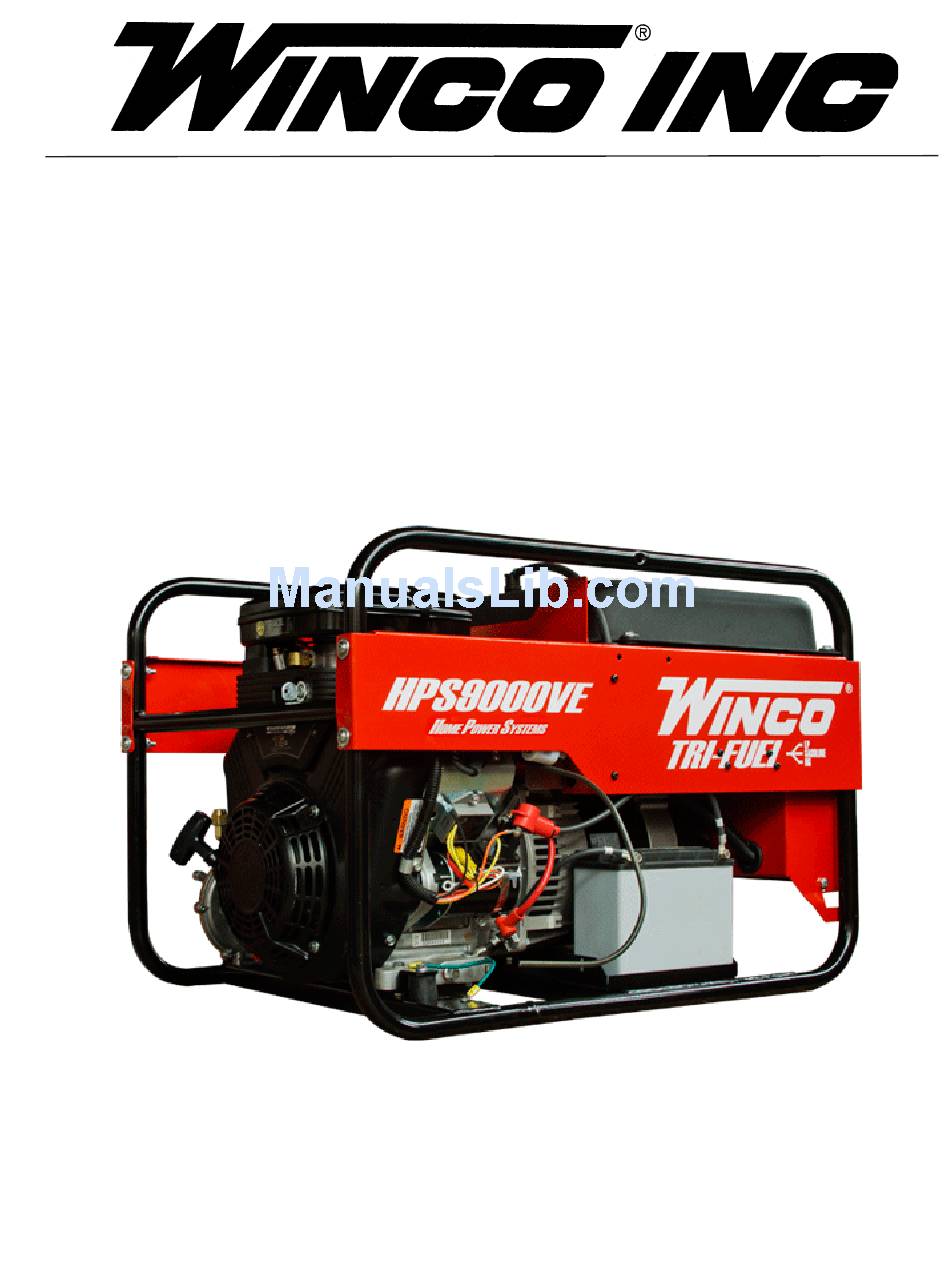

HPS9000VE/E
INSTALLATION AND
OPERATORS MANUAL
TRI-FUEL GENERATOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPS9000VE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Winco HPS9000VE

  • Page 1 HPS9000VE/E INSTALLATION AND OPERATORS MANUAL TRI-FUEL GENERATOR...
  • Page 2: Table Of Contents

    Should you experience a problem please follow the “Troubleshooting Tables” near the end of this HPS9000VE/E MODEL manual. The warranty listed in the manual describes what you can expect from WINCO should you need SERIAL NUMBER_________________________ service assistance in the future. PURCHASE DATE_________________________ TABLE OF CONTENTS...
  • Page 3: Safety Information

    SAFETY INFORMATION b. Keep fuel containers out of reach of children. c. Do not smoke or use open flame near the generator set or fuel tank. This engine generator set has been designed and d. Keep a fire extinguisher nearby and know its manufactured to allow safe, reliable performance. proper use. Fire extinguishers rated ABC by Poor maintenance, improper or careless use can NFPA are appropriate.
  • Page 4: Unit Capabilities

    GENERATOR CONNECTIONS is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current HPS9000VE: 120 volt and 240 volt receptacles and frequency are carefully checked. are provided for connection to various loads. The diagram below represents this 8,000 watt (rated Rated output of generator is based on engineering output) generator.
  • Page 5: Preparing The Unit

    Self-exciting generators respond to severe overload- LUBRICATION ing differently than utility power. When overloaded, the engine is not able to supply enough power to Before starting the engine, fill the crankcase to the bring the electric motor up to operating speed. The proper level with a good quality oil. The recom- generator responds with high initial starting current, mended grade of oil and quantity of oil required is but the engine speed drops sharply.
  • Page 6: Lp/Ng Installation

    Oil Recommendations Con’t LP/NG FUEL INSTALLATION * Below 40 F (4 C) the use of SAE30 will result in The information in this instruction is offered to assist hard starting. you in providing the proper vapor fuel supply for your ** Above 80 F (27 C) the use of 10W-30 may cause...
  • Page 7: Fuel Line Sizing

    12 volt DC fuel solenoid valve. This optional 12 volt DC valve is available through your local Winco dealer. The fuel line used to connect the supply line to the demand regulator must be a locally approved flexible fuel line.
  • Page 8: Changing Fuel Types

    must be between 4 and 6 oz. (7-11 inches of water column). Any lower pressure and the unit will starve for fuel under load. Any higher and the unit will ‘flood’ when attempting to start. LP TANK SIZING Once above the minimum acceptable size, the size of L.P. tank used will generally depend on how long you want the unit to run without refilling. The tank sizes shown below are the smallest recommended tank sizes based on the outside temperature.
  • Page 9: Battery Installation

    FROM LP/NG TO GASOLINE Amp Hours: 15AH or greater. Follow the battery manufacturers recommendations for servicing and 1. With the engine running turn off the LP/NG charging prior to use. Connect the battery to the elec- fuel supply. tric start system using the cables provided. 2.
  • Page 10: Initial Start Up

    OIL ALERT SYSTEM This WINCO generator is equipped standard with low oil shutdown systems. The Briggs and Stratton engine uses an oil pressure switch system. This low oil warning system will automatically stop the engine before the oil level reaches a critical danger point.
  • Page 11: Electric Starting (Lp/Ng)

    STARTING HINTS CAUTION: EQUIPMENT DAMAGE Never permit the choke to remain on after the 1. Cold weather engine has run for a short time. It is not necessary a. Use the proper oil for the temperature expected. to choke the engine when it is warm. Avoid over- b.
  • Page 12: Operating Speed

    OPERATING SPEED The engine-generator must be run at the correct speed in order to produce the proper electrical volt- age and frequency. CAUTION: EQUIPMENT DAMAGE The output voltage should be checked to insure the generator is working properly prior to connecting a load to the generator.
  • Page 13: Wiring

    WIRING CAUTION: EQUIPMENT OVERLOAD Plug your tools such as drills, saws, blowers, sump Keep the generator load within the generator and pump and other items to be powered directly into receptacle nameplate rating. Overloading may cause the generator receptacles. Before plugging in all damage to the generator and/or the loads .
  • Page 14: Engine Care

    Check the yellow pages of your fer/Service (ET/S) system available through your local telephone directory under “Engines-Gasoline” WINCO dealer. The emergency distribution panel Maintenance for the closest engine repair center or ask the dealer must be installed by a licensed electrician according We recommend that you see any Briggs &...
  • Page 15: Generator Care

    2. Checking the Oil Level: The oil level must al- 4. Spark Plug: Replace annually or every 100 hours ways be checked before the engine is started. Take of operation. Always replace with the same spark care to remove any dirt or debris from around the plug that came in the engine and check gap before oil fill plug before removing. Be sure the oil level is installing.
  • Page 16: Troubleshooting

    CLEANING No output voltage *Short in load (disconnect). *Tripped or defective circuit breaker. Remove dirt and debris with a cloth or brush. DO *Broken or loose wire. NOT use high pressure spray to clean either the *Defective receptacle. engine or the generator. This high pressure spray *No residual magnetism could contaminate the fuel system and the generator (in generator).
  • Page 17: Control Panel Wiring Diagram

    2210-00 60706-237...
  • Page 18: Warranty Information

    THERE IS NO OTHER EXPRESS WARRANTY. To the extent permitted by law, any and all warranties, including those of merchantability and fitness for a particular purpose, are limited to 24 months from date of purchase. In no event is WINCO liable for incidental or consequential damages. Note: Some states do not allow limitation on the duration of implied warranty and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply in every instance. This warranty gives you specific legal rights which may vary from state to state.
  • Page 19: Warranty Statement

    WINCO recommends that you retain all receipts covering maintenance on your genera- tor, but WINCO cannot deny warranty solely for lack of receipts. As the generator owner, you should be aware that WINCO may deny you warranty coverage if your genera- tor or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
  • Page 20 WINCO INC. 225 S. CORDOVA AVE. LE CENTER, MN 56057 507-357-6821 SERVICE DEPT. 507-357-6831 www.wincogen.com 2210-00 60706-237...
