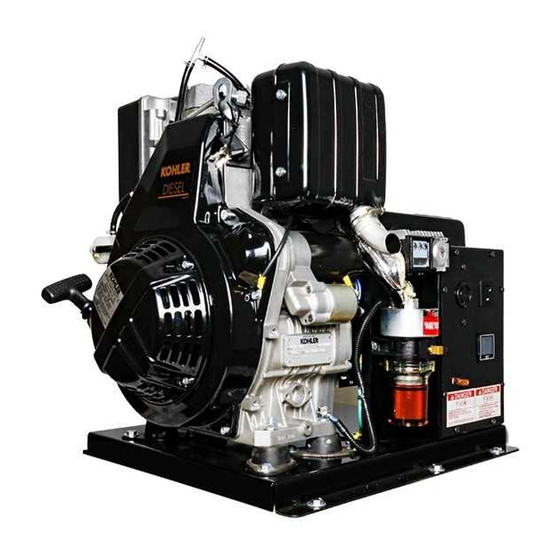

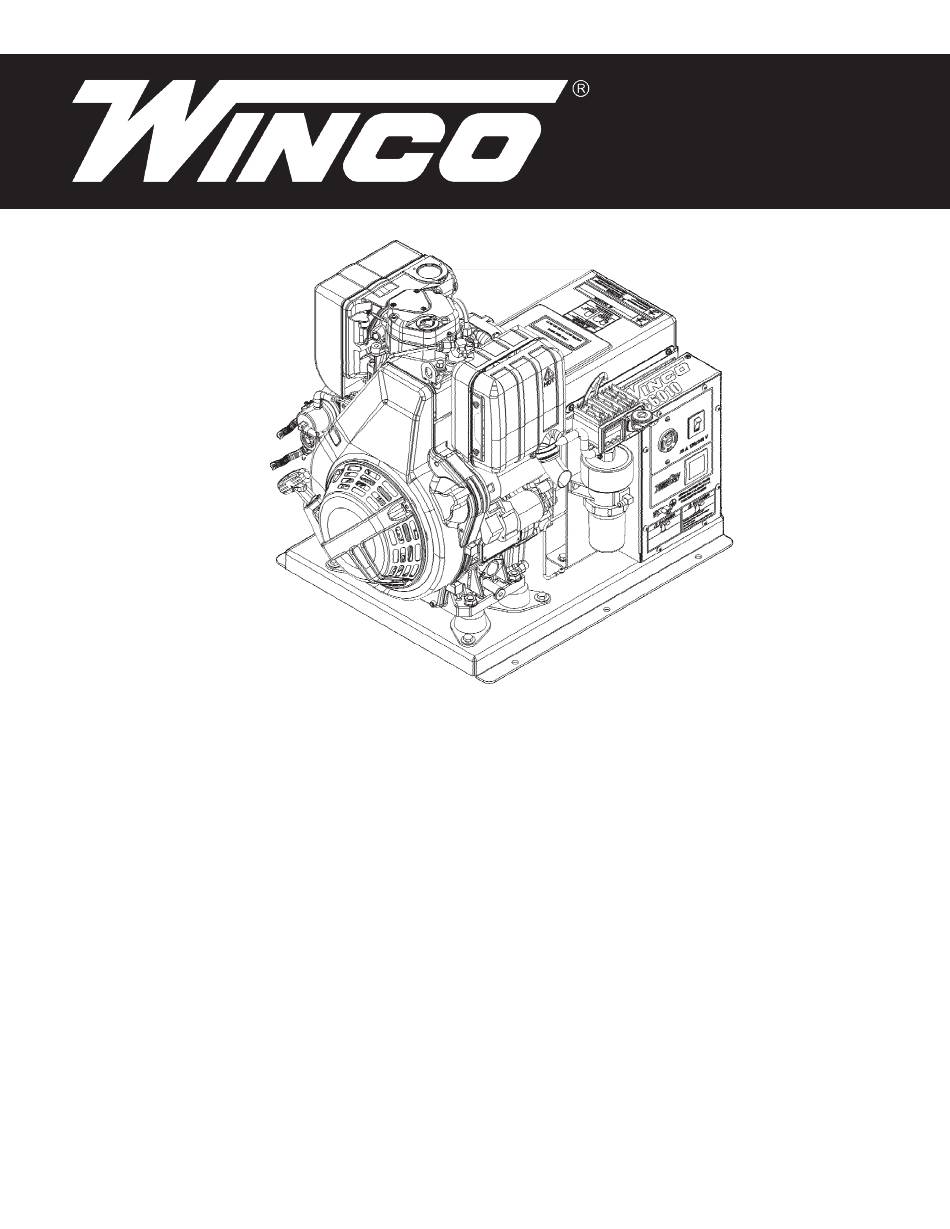

- Page 1 EC6010DR/T GENERATOR INSTALLATION AND OPERATORS MANUAL WINCO INC. 225 S. CORDOVA AVE. LE CENTER, MN 56057 SALES DEPT. 507-357-6821 SERVICE DEPT. 507-357-6831 www.wincogen.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us concerning this unit, it will help us SAVE THESE INSTRUCTIONS to respond to your needs faster. -
Page 3: Testing Policy
SPECIFICATIONS TESTING POLICY GENERATOR Before any generator is shipped from the factory, it is fully checked Model EC6010DR/T for performance. The generator is loaded to its full capacity, and the Starting Watts 6,010 voltage, current, and frequency are carefully checked. -
Page 4: Safety
SAFETY A. Do not refuel when the engine is running or hot. B. Keep fuel containers out of reach of children. IMPORTANT SAFETY INSTRUCTIONS C. Do not smoke or use open flame near the generator set or fuel tank. SAVE THESE INSTRUCTIONS D. -
Page 5: Introduction
INTRODUCTION INTENDED USES This engine generator set has been designed primarily for portable heavy duty commercial use. Both 120 volt and 240 volt receptacles are provided in the control panel to plug in your loads (lights, portable tools, and small appliances). These units are dual wound generators, therefore the 120 volt loads must be equally split with 1/2 of the rated capacity available on each of the two 120 volt circuits. -
Page 6: Unit Capabilities
UNIT CAPABILITIES Self-exciting generators respond to severe overloading differently than utility power. When overloaded, the engine is not able to supply enough GENERATOR CONNECTIONS power to bring the electric motor up to operating speed. The generator responds with high initial starting current, but the engine speed drops sharply. -
Page 7: Preparing The Unit
WINCO take care of the freight claim. If you sign for the unit, the transfer of the ownership requires that you file the freight claim 2. -
Page 8: Battery Installation
DIESEL FUEL These engines produce enough direct current to keep the battery charged under normal operating conditions, but were not intended to be used as a battery charger. Always use a good grade of # 2 diesel fuel. For cold weather, blended #1 fuel may be used. -
Page 9: Control Panel
Never fill the battery above the fill line. Overfilling above the upper level 3. Place the panel on the other side of the generator (receptacle facing line may cause the electrolyte to overflow, resulting in corrosion to the out). Secure the panel to the skid mount using the pre-installed rivet engine or nearby parts. -
Page 10: Initial Start Up
CONNECTING THE FUEL SUPPLY INITIAL START UP Fuel Pump Specifications: The throttle control on these generators is preset and locked to operate at 3600 RPM (nominal) with no load speed set at 3690 RPM. Only Voltage a trained service technician should be allowed to adjust this speed 9.0 to 11.5 setting. -
Page 11: Starting Hints
NOTE: While the engine is running, all warning lights should be off except the OK light. STARTING HINTS 1. COLD WEATHER Use the proper oil for the temperature expected. CAUTION: EQUIPMENT DAMAGE Never use ether or any other starting aides. Serious engine damage or personal injury may result from ignoring this simple warning. -
Page 12: Connecting The Loads
This location will also be where you will install your neutral to ground bond. You must wire four Your WINCO portable generator ships with a bonded neutral. You can separate wires from the generator (2-hot, 1- neutral, and 1-ground) to safely use this generator without external grounding as long as all the distribution panel. -
Page 13: Wiring
WIRING Plug your tools such as drills, saws, blowers, sump pump, and other items to be powered directly into the generator receptacles. Before plugging in all the tools and cord sets, recheck the rating of the generator set. Be sure it can handle the intended load and is compatible with the voltage, phase, and current ratings. -
Page 14: Yourgen
For normal usage, the speed setting should not be changed. If the generator is The WINCO YourGen meter allows you to see useful information about being run continuously on a very light load, it is often advisable to lower your generator from the front panel by displaying RPMs, Voltage, the operating speed slightly. - Page 15 120 Volt and 240 Volt receptacles are provided for connection to 1. The battery is located in the control box near potentially live various loads. AC terminals. To prevent electrocution while changing the battery disable the unit by disconnecting the main battery and The following diagram represents this 5,160 watt (rated output) then open the receptacle panel.
-
Page 16: Engine Care
ENGINE CARE C. Replace the adapter by pushing in and turning to the right to lock MAINTENANCE SCHEDULE D. Remove oil fill cap. Daily or Every Every Every 10 hrs 250* hrs 500** hrs Check Oil ü Check oil filter ü... -
Page 17: Generator Care
GENERATOR CARE B. Remove the wing nut. Proper care and maintenance of the generator is necessary to ensure a long trouble free life. EXERCISING THE GENERATOR C. Remove the filter element. The generator should be operated every three to four weeks. It should be operated for a period of time sufficient to warm the unit up and to dry out any moisture that has accumulated in the windings. -
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Out of fuel Start switch in OFF position Fuel Valve turned off Plugged fuel filter Blown fuse in key switch Battery required to open solenoid Voltage too low Engine speed is too low Generator overloaded Defective stator Defective rotor (field) -
Page 19: Control Panel Wiring Diagram
CONTROL PANEL WIRING DIAGRAM OPM-125 REV B... -
Page 20: 24 Month Limited Warranty
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE. WINCO is liable for the repair or replacement of the product only and is not liable for incidental or consequential damages as permitted by your state. This warranty gives you specific legal rights which may vary from state to state.
