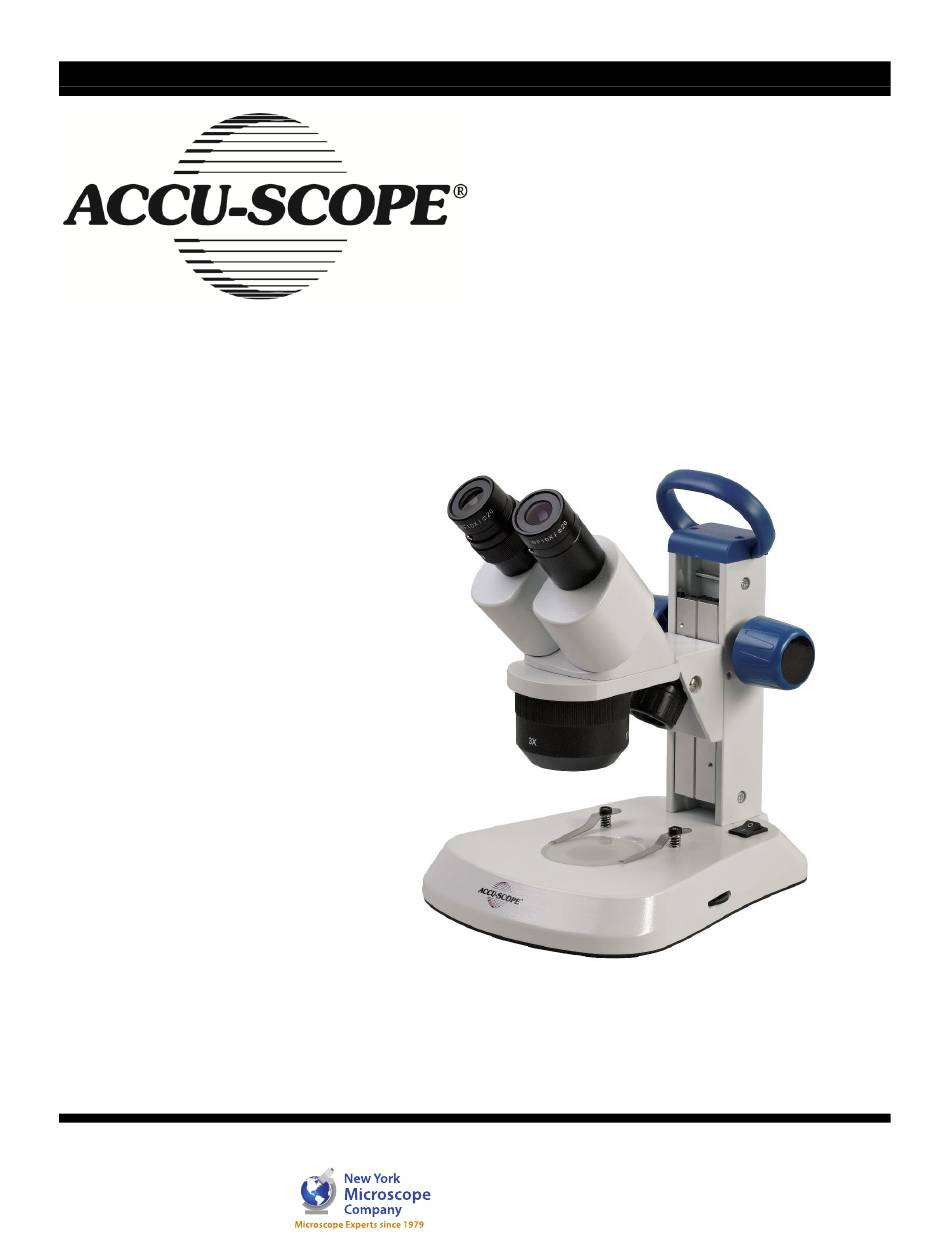

- Page 1 MANUAL EXS-210 STEREO MICROSCOPE SERIES 100 Lauman Lane, Suite A, Hicksville, NY 11801 Tel: (877) 877-7274 | Fax: (516) 801-2046 Email: Info@nyscopes.com www.microscopeinternational.com...
-
Page 2: Table Of Contents
ADJUSTING ILLUMINATION ..................7 OBSERVING A SPECIMEN .................... 8 RECHARGING THE MICROSCOPE ................8 REPLACING THE BATTERIES ..................9 REPLACING THE LED BULBS ..................9 SPECIFICATIONS ......................10 TROUBLESHOOTING ......................11 MAINTENANCE........................12 SERVICE ..........................12 WARRANTY ........................12 ® ACCU-SCOPE... -
Page 3: Safety Notes
A regular schedule of preventative ® maintenance by qualified service personnel is highly recommended. Your authorized ACCU-SCOPE distributor can arrange for this service. ®... -
Page 4: Introduction
Your microscope will ® last a lifetime if used and maintained properly. ACCU-SCOPE microscopes are carefully assembled, inspected and tested by our staff of trained technicians in our New York facility. Careful quality control procedures ensure each microscope is of the highest quality prior to shipment. -
Page 5: Components Diagram
EXS-210 STEREO MICROSCOPE COMPONENTS DIAGRAM (continued) Indicent (Top) Illuminator Transmitted (Bottom) Illuminator Incident (Top) Illuminator Variable Intensity Adjustment Dial Power Cord Receptacle ® ACCU-SCOPE... -
Page 6: Assembly
① of the binocular assembly and adjust the ① eyepiece tubes by opening or closing them until the left and right fields of view coincide completely and you are able to see a complete circle. Fig. 2 ® ACCU-SCOPE... -
Page 7: Adjusting The Diopter
① with both hands, hold the left knob (to prevent it from turning), and rotate the right knob clockwise to increase (tighten) or counterclockwise to decrease (loosen) the focus knob tension. After tension adjustment has been completed, always rotate both adjustment knobs in the same direction. ① Fig. 4 ® ACCU-SCOPE... -
Page 8: Changing The Magnification
Each dial also has its own on/off so you can use either top ① illuminator or bottom illuminator, or both illuminators simultaneously. Fig. 6 For more information about the rechargeable LED illumination system and replacing the rechargeable batteries, please refer to pages 8-9. ® ACCU-SCOPE... -
Page 9: Observing A Specimen
The life expectancy of the rechargeable batteries is approximately 10,000 hours or equivalent to 250 recharges before needing replacement. NOTE: Your microscope can be used while recharging. Use ONLY the AC adapter/cord that came with your microscope. ® ACCU-SCOPE... -
Page 10: Replacing The Batteries
The life expectancy of the LED bulbs is 20,000 hours. The LED bulbs are covered by a 1 year manufacturer’s warranty. Should your LED bulbs need replacing, please contact an authorized ACCU-SCOPE service center or call ACCU-SCOPE Inc.’s technical service department at 631-864-1000 for an authorized service center near you. -
Page 11: Specifications
Illumination system: Adjustable illumination for both LEDs (top and bottom) OPTICAL DATA OBJECTIVE EYEPIECE Total Magnification 5X/22MM FOV (mm) Total Magnification 10X/20mm FOV (mm) Total Magnification 15X/15mm FOV (mm) Total Magnification 20X/10mm FOV (mm) Working Distance 57mm 57mm 57mm 57mm ® ACCU-SCOPE... -
Page 12: Troubleshooting
5. Coarse focus adjustment Tension adjustment is too tight Loosen it properly knobs rotate with too much resistance 6. Microscope body drops or Tension adjustment ring is too Tighten it properly specimen goes out of focus loose during observation ® ACCU-SCOPE... -
Page 13: Maintenance
SCOPE at (631) 864-1000. This warranty is limited to the continental United States of America. All items returned for warranty repair must be sent freight prepaid and insured to ACCU-SCOPE INC., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the continental United States of America, for all foreign warranty repairs return freight charges are the responsibility of the individual/company who returned the merchandise for repair.
