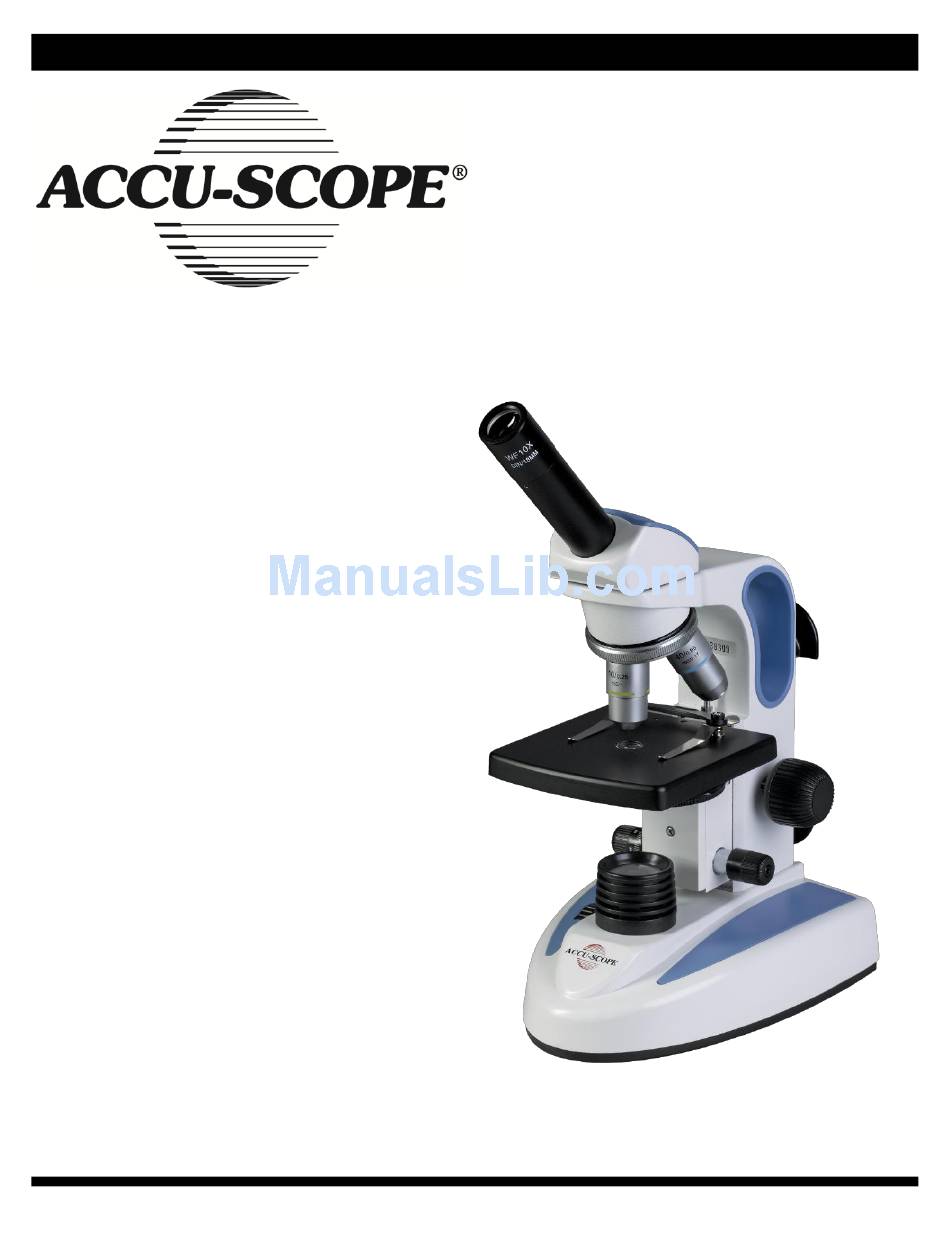

- Page 1 MANUAL EXM-150 MICROSCOPE SERIES 73 Mall Drive, Commack, NY 11725 • 631-864-1000 (P) • 631-543-8900 (F) www.accu-scope.com • info@accu-scope.com...
-
Page 2: Table Of Contents
RECHARGING THE MICROSCOPE ................9 FUSE REPLACEMENT ....................9 BATTERY REPLACEMENT ..................10 LED BULB REPLACEMENT ..................10 TROUBLESHOOTING ....................11-13 MAINTENANCE........................14 SERVICE ..........................14 WARRANTY ........................14 ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 3: Safety Notes
An annual schedule of preventative maintenance by qualified personnel is highly recommended. Your ® authorized ACCU-SCOPE distributor can arrange for this service. ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 4: Introduction

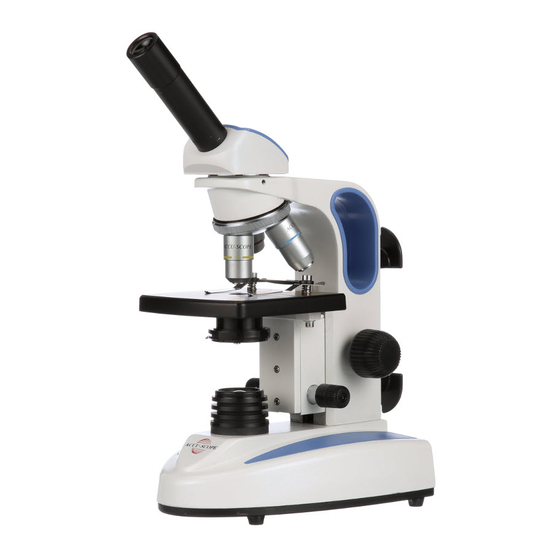

Model Shown: EXM-150 (Models Vary) Monocular Head Nosepiece Cord Hanger Objective Carrying Handle Stage Clip Coarse Focusing Knob Stage Disc Diaphragm Light Adjustment Dial Fine Focusing Knob Illuminator Housing ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 5: Components Diagram
Models Featuring Mechanical Stage & Abbe Condenser Slide Finger Slide Holder Condenser Y-Axis Adjustment (Top) Knob X-Axis Adjustment (Bottom) Knob Other Models Not Shown: EXM-150-MS EXM-151-MST EXM-150-T EXM-151-MS ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 6: Connecting The Power Cord
① until the illumination is comfortable for observation. Rotate the light adjustment knob toward the back of the microscope to increase brightness; rotate toward the front to reduce brightness. ① ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 7: Specimen Slide
④ and fine ⑤ focusing controls. Different objectives can be brought into view by rotating the nosepiece and using the fine adjustment knob because the objectives are parfocal. ④ ⑤ ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 8: Disc Or Iris Diaphragm
ADJUSTMENT & OPERATION (continued) Using the Disc or Iris Diaphragm Each EXM-150 Series Microscope is supplied with either a disc or iris diaphragm, depending on the model ordered. The amount of light can be adjusted by opening or closing the iris diaphragm (using the lever ①) or by turning the disc... -
Page 9: Recharging The Microscope
Gently pull out the old fuse ② and Install a new fuse into the fuse holder and screw it back into the base. Specification of the fuse: 250V, 1.0A CAT #3277-1 ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 10: Battery Replacement
Should your LED bulbs need replacing, please contact an authorized ACCU-SCOPE service center or call ACCU- SCOPE Inc.’s technical service department at 631-864-1000 for an authorized service center near you. ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 11: Troubleshooting
Air bubbles in immersion oil Remove bubbles Condenser aperture is closed Open or close properly or open too much Condenser is positioned too Position the condenser slightly lower than the upper limit ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... - Page 12 Cover glass is to thick Use a 0.17mm cover glass Diopter adjustment is not set Readjust the diopter settings properly as outlined in section 4.3 ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com...
- Page 13 Increase the tension on the the coarse focusing knob focusing knobs Fine focus is ineffective Tension adjustment is set too Loosen the tension on the high focusing knobs ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com...
-
Page 14: Maintenance
SCOPE at (631) 864-1000. This warranty is limited to the continental United States of America. All items returned for warranty repair must be sent freight prepaid and insured to ACCU-SCOPE INC., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the continental United States of America, for all foreign warranty repairs return freight charges are the responsibility of the individual/company who returned the merchandise for repair.
