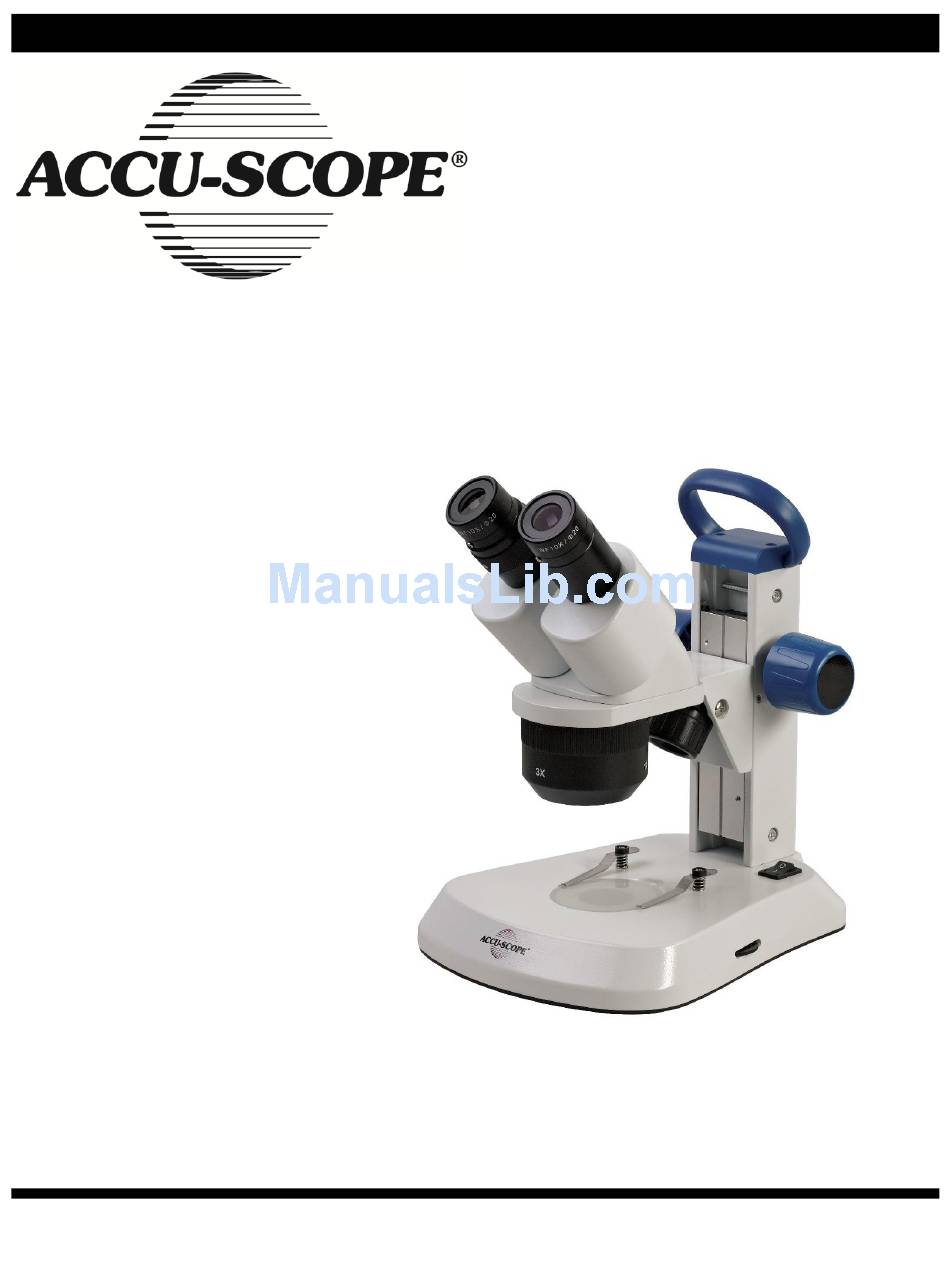

- Page 1 MANUAL EXS-210 STEREO MICROSCOPE SERIES 73 Mall Drive, Commack, NY 11725 • 631-864-1000 (P) • 631-543-8900 (F) www.accu-scope.com • info@accu-scope.com...
-
Page 2: Table Of Contents
RECHARGING THE MICROSCOPE ................8 REPLACING THE BATTERIES ..................9 REPLACING THE LED BULBS ..................9 SPECIFICATIONS ......................10 TROUBLESHOOTING ......................11 MAINTENANCE........................12 SERVICE ..........................12 WARRANTY ........................12 ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 3: Safety Notes
A regular schedule of preventative ® maintenance by qualified service personnel is highly recommended. Your authorized ACCU-SCOPE distributor can arrange for this service. ®... -
Page 4: Introduction
Diopter Focus Adjustment Collar Adjustment Knob Eyepiece Tubes Rotatable Objective Housing/ Frame Magnification Turret Stage Clips ON/OFF Switch Stage Plate Base Transmitted (Bottom) Illuminator Variable Intensity Adjustment Dial ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 5: Components Diagram
EXS-210 STEREO MICROSCOPE COMPONENTS DIAGRAM (continued) Indicent (Top) Illuminator Transmitted (Bottom) Illuminator Incident (Top) Illuminator Variable Intensity Adjustment Dial Power Cord Receptacle ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 6: Assembly
Fig. 2 ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 7: Adjusting The Diopter
(tighten) or counterclockwise to decrease (loosen) the focus knob tension. After tension adjustment has been completed, always rotate both adjustment knobs in the same direction. ① Fig. 4 ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 8: Changing The Magnification
① (i.e., 3x X 10=30x) ② Fig. 5 Adjusting Illumination (Fig. 6) The EXS-210 is equipped with a rechargeable variable, built-in 3-way illumination system: LEDs for incident (top) and transmitted (bottom). Brightness adjustment: the right brightness adjustment dial ① ②... -
Page 9: Observing A Specimen
10,000 hours or equivalent to 250 recharges before needing replacement. NOTE: Your microscope can be used while recharging. Use ONLY the AC adapter/cord that came with your microscope. ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 10: Replacing The Batteries
Should your LED bulbs need replacing, please contact an authorized ACCU-SCOPE service center or call ACCU-SCOPE Inc.’s technical service department at 631-864-1000 for an authorized service center near you. ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 11: Specifications
OBJECTIVE EYEPIECE Total Magnification 5X/22MM FOV (mm) Total Magnification 10X/20mm FOV (mm) Total Magnification 15X/15mm FOV (mm) Total Magnification 20X/10mm FOV (mm) Working Distance 57mm 57mm 57mm 57mm ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 12: Troubleshooting
Loosen it properly knobs rotate with too much resistance 6. Microscope body drops or Tension adjustment ring is too Tighten it properly specimen goes out of focus loose during observation ® ACCU-SCOPE 73 Mall Drive, Commack, NY 11725 • 631-864-1000 • www.accu-scope.com... -
Page 13: Maintenance
SCOPE at (631) 864-1000. This warranty is limited to the continental United States of America. All items returned for warranty repair must be sent freight prepaid and insured to ACCU-SCOPE INC., 73 Mall Drive, Commack, NY 11725 – USA. All warranty repairs will be returned freight prepaid to any destination within the continental United States of America, for all foreign warranty repairs return freight charges are the responsibility of the individual/company who returned the merchandise for repair.
