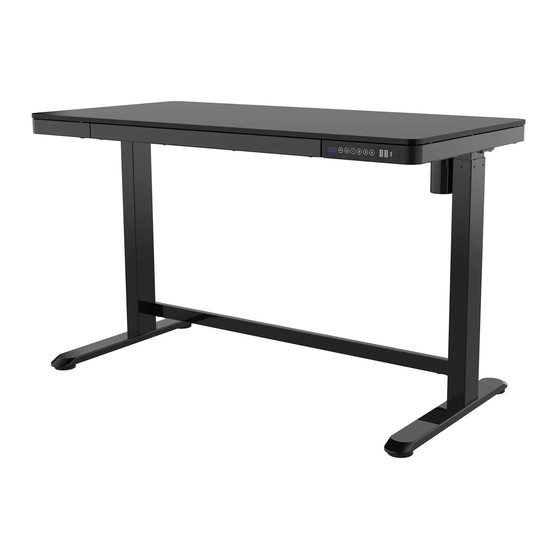

Spacetronik SPE-B118WW Installation Manual

Model: SPE-B118WW

Component list

1. Tabletop X1
2. Lifting columns X1
3. Feet X2
4. Power plug X1
Installation guide

Accessory list

Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
B
A A A x8 x8 C
M6 M8 5x5

Technical data

Max. Weight Capacity 50KG
Height Range
730-1220mm
Drawer Stroke 230mm
STEP 1
x1 D x2
Cable clamp STEP 2
Install the feet (3) to the lifting columns with the screw M6 (A*8)
and tighten it with hex wrench (C)
Caution: Pay attention to the directions.
STEP 3
4
Install the tabletop and the lifting columns
C
Connect the tabletop (1) and the lifting columns (2) with the
screw (Bx8) M8 and tighten it with hex wrench (C).
Caution: Please do not touch the glass surface directly to the
ground during installation, so as not to be scratched by sharp
objects on the table;
Install the feet
C
A
Install the motor and power lines
Connect the motor plug to the control box, then connect one side of
the adapter plug to
the adapter, another side to the power line.
Caution: the motor and power lines can be fixed by cable clamp
according to actual use.
B
