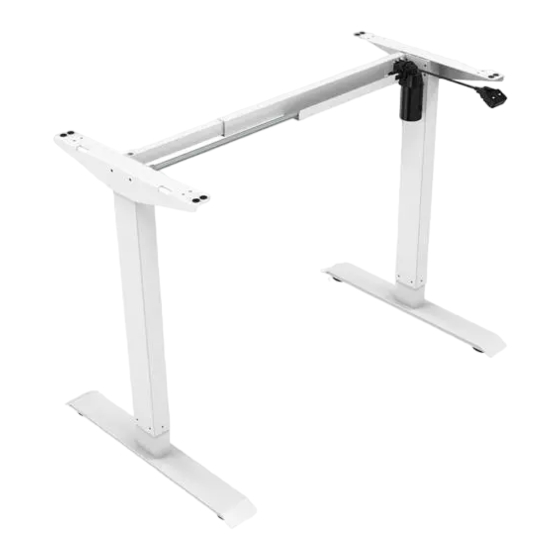

Spacetronik ERGOLINE SPE-114E Installation Manual

Item No.：SPE-114E
Installation guide

Accessory list

Attention: The drawings below are only for reference which might be slightly different from the actual object, please in kind prevail. Any tools missing
or installation problems, please contact the customer service firstly.
A B C
x1
x12
x4
5x5
M8X50mm
M6X16mm

Part list

Qty Qty
No. Part No. Part No.
1
2
1 2 3
Pedestal
Column
1 1
4 5 6
Supporting beam Transmission rod
1 1
7 8 9
Adapter Baffle
4
10
Cable tie

Technical data

Column Number
2
Maximum Load 70KG
Max Speed 25mm/s
Input Voltage 100-240V
Lowest Position 710mm
Highest Position 1210mm
1000-1600mm
Desktop Size
500-800mm
Continuous operation for 2 mins at most after
Duty Cyde
pause for 18 mins
Applicable Temperature
0~40°C
D E F
x2 x14
x1
2.5x2.5
M4*6mm
ST4.2X20mm

Installation instruction

Qty 4
Part
1
Column
6
5
8
2
Supporting plate
7
1
2
ower cable
10
STEP1
A
x8
C
5x5
STEP2
Install Supporting beam(4)
B
x4
1
C
5x5
G
x1
Wrench
STEP3
D
2.5x2.5
3
1
9
G
Tighten
Install Pedestal(1)
C
A
1
2
Install (1) & (2)(3) together, use 5*5 wrench(C) to tighten the screws(A).
2
C
B
4
2
3
B
C
Install (4) &(2) (3) together, use 5*5 wrench(C) to tighten the screws(B).
Install transmission rod(5)
5
Loose
2
Insert
Rotation angle does not exceed one
third of the circle
Install (5) & (2)(3), use 2.5*2.5 wrench(D) to tighten(G).
3
Loose
Stretch
2
C
Tighten
Rotate
Insert
3 D
Tighten
