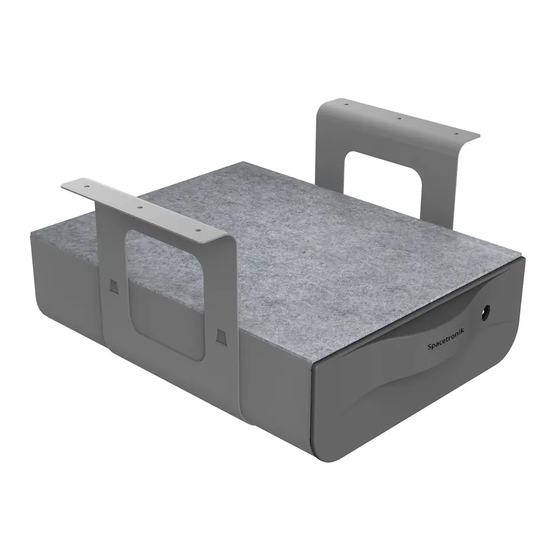

Locking Under-Desk Drawer
STEP1
Open the drawer and then take out retaining plates
Close the drawer and then rotate the key 90 degree
counterclockwise to lock the drawer.
Item No.: SPB-121
Installation guide
10kg
1
Screwdriver
ST4.2*16MM
M4X10MM
A(6PCS)
B(4PCS)
C(1PC)
1. Drawer (1PC)
2. Retaining Plate (2PCS)
3. Key (2PCS)
2
Retaining Plate X2
2
STEP2
Fix the Retaining Plates
2
3
1
Paper Box
B
C
Advertisement
Table of Contents
Related Manuals for Spacetronik SPB-121
Summary of Contents for Spacetronik SPB-121
- Page 1 Item No.: SPB-121 Screwdriver ST4.2*16MM M4X10MM A(6PCS) B(4PCS) C(1PC) Locking Under-Desk Drawer Installation guide 1. Drawer (1PC) 2. Retaining Plate (2PCS) 3. Key (2PCS) 10kg STEP1 Retaining Plate X2 Open the drawer and then take out retaining plates Paper Box...
- Page 2 STEP3 3. Twist screws Install the Drawer onto Height Adjustable Desk ST4.2*16MM 1. Mark punch position on the tabletop 2. Drill holes using pistol drill and Desk ensure the hole diameter no more than 3mm Caution! This step need the cooperation of two people: one hold the drawer, the other mark punch positions and drill holes.
