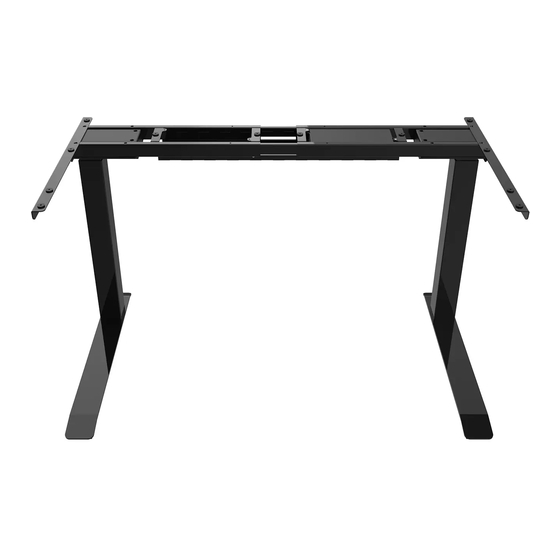

Spacetronik SPE-233 Installation Manual

Technical data
3
Column Stage
Max. Weight Capacity 100KG
695-1345mm
Height Range
1100-1900mm
Width Range
Component list
Qty No. Qty
No. Part Part
1 2 2 2
Feet Lifting Column
Qty No. Qty
No. Part Part
3 1 4 1
Supporting Beam
Cable Management Tray (Control Box included)
Qty No. Qty
No. Part Part
1
5 6
1
Qty No. Qty
No. Part Part
8
7 1
1
Hand Switch
Power Plug
(Option)
Model: SPE-233
Installation guide
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
No. Image Spec
A
M6
B
M6
C
M6
D
M6
E
St4.2
Allen Key
F
4x4mm
5
3
2
1
STEP 1
Install the Side Brackets
A
x4
F
4x4
Qty
4 5
4
8
12
STEP 2
Install the Lifting Columns
16
1
D
x8
F
4x4
6
7
STEP 3 Install the Feet
C
x8
F
8
4x4
F
A
4
Attach the side brackets(5)(6) to the ends of the supporting beam (4) using
screws(A) as show with the Allen Key(F).
F
D
2
4
Insert the lifting columns (2) into the ends of the supporting beam(4).
Fix the lifting columns using screws(D) with the Allen Key(F).
F
1
C
2
Place the feet(1) on the bottom of the lifting column(2).
Fix the feet using screws(C) with Allen Key(F).
6
