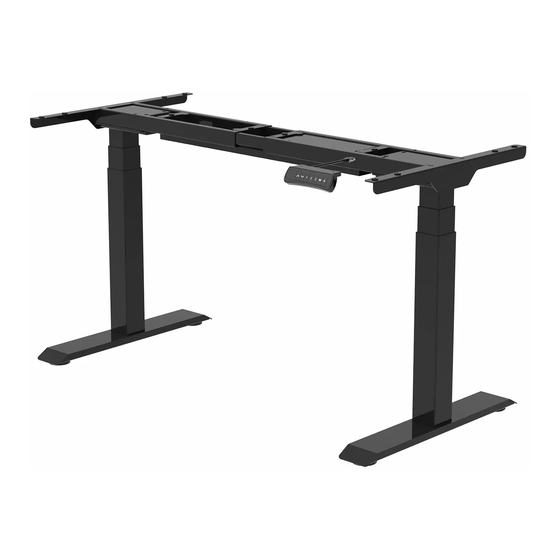

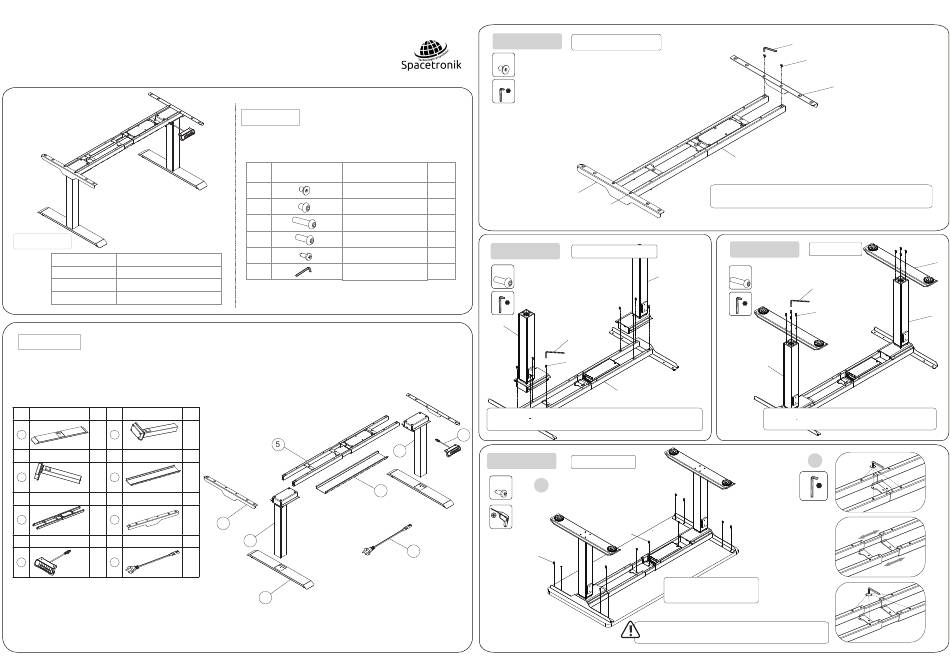

Spacetronik SPE-223H Installation Manual

Item No.: SPE-223H
Technical data
3
Column Stage
125KG
Max. Weight Capacity
580-1230mm
Height Range
1100-1900mm
Width Range
Component list
Qty No. Qty
No. Part Part
1 2 2 1
Feet
Right Lifting Column
Qty No. Part Qty
No. Part
3 1 4 1
Left Lifting Column Cable Management Tray
Qty
No. Part No. Part Qty
5 1 6
2
Supporting Beam
Side Bracket
(Control Box included)
Qty Qty
No. Part No. Part
1
7 8 1
Hand Switch
Power Plug
(Option)
Installation guide
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
No. Image Spec
A
M6
B
M6
C
M6
D
M6
E
St4.2
F Allen Key
4x4mm
4
6
3
1
STEP 1
A
x4
F
4x4
Qty
4
6
4
8
12
STEP 2
16
1 D
x8
F
4x4
3
F
D
Insert the lifting columns (2)(3) into the ends of the supporting beam(5).
Fix the lifting columns using screws(D) with the Allen Key(F).
7
2
STEP 4
Install the Tabletop
E
1
x12
8
E
Install the Side Brackets
5
Attach the side brackets(6) to the ends of the supporting beam (5) using
screws(A) as show with the Allen Key(F).
A
STEP 3
Install the Lifting Columns
C
2
x8
F
4x4
5
E
The expansion distance of the
supporting beam can be adjusted
according to the actual use.
Attention: When the supporting beam is greater than 1720mm,
the installation method is as follows: Method 2 in Step 6.
F
A
6
Install the Feet
1
F
C
2
3
Place the feet(1) on the bottom of the lifting column(2)(3).
Fix the feet using screws(C) with Allen Key(F).
2
Loosen
F
4x4
Adjust
Tighten
