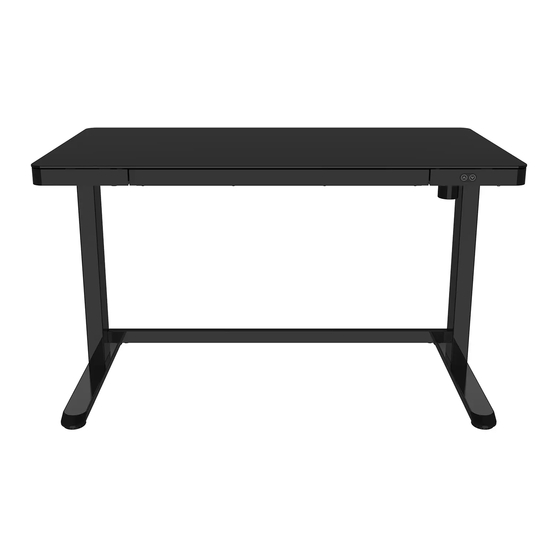

Spacetronik SPE-B118BG Installation Manual

Model: SPE-B118BG
Installation guide
Component list
1. Tabletop X1
2. Lifting columns X1
3. Feet X2
4. Power plug X1
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
A B C D
x1
x8
x8
Cable clamp
M8 5x5
M6
Technical data
50KG
Max. Weight Capacity
720-1210mm
Height Range
230mm
Drawer Stroke

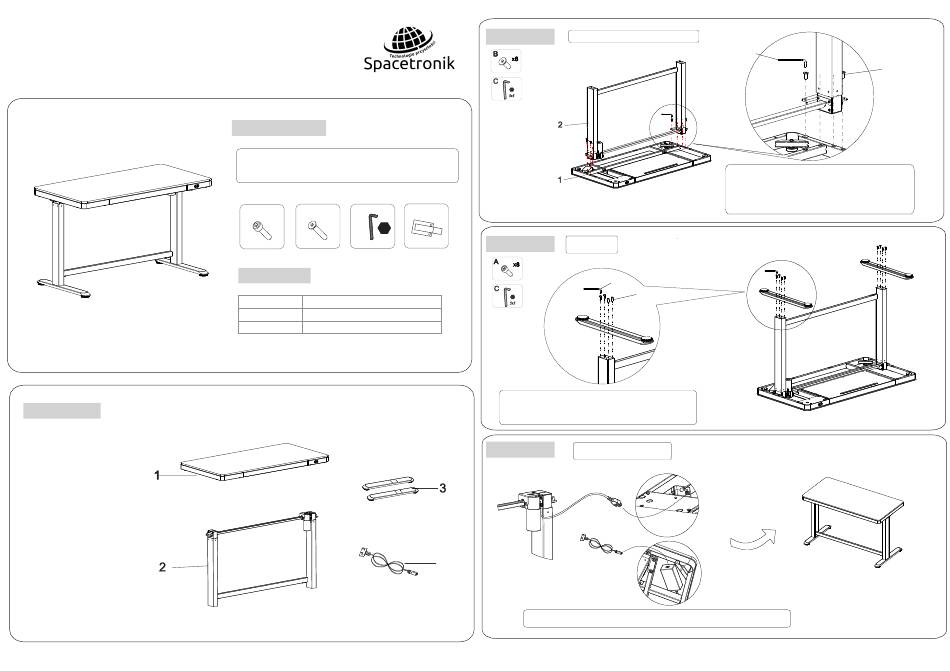

STEP 1
Install the tabletop and the lifting columns
x2
STEP 2
Install the feet
C
Install the feet (3) to the lifting columns with the screw M6 （A*8）
and tighten it with hex wrench (C).
Caution: Please be careful during installation to avoid falling and
breaking the glass; Pay attention to the directions.
STEP 3
Install the motor and power lines
4
Connect the motor plug to the control box, then connect one side of the adapter plug to
the adapter, another side to the power line.
C
Connect the tabletop (1) and the lifting columns (2) with the
screw (Bx8) M8 and tighten it with hex wrench (C).
Caution: Please do not touch the glass surface directly to the
ground during installation, so as not to be scratched by sharp
objects on the table; Please be careful during installation to
avoid falling and breaking the glass
A
B
