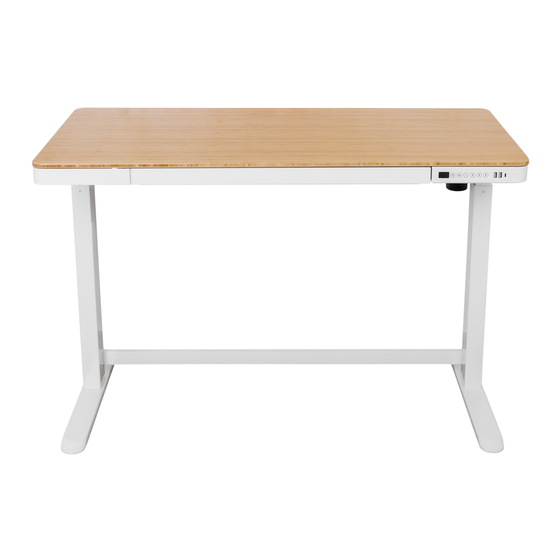

Spacetronik SPE-B128WT Installation Manual

Model: SPE-B128WT
Component list
1. Tabletop X1
1
2. Lifting columns X1
3. Feet X2
4. Power plug X1
2
Installation guide
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
B C
A
x1
x8
x8
M8 5x5
M6
Technical data
50KG
Max. Weight Capacity
Height Range 720-1210mm
230mm
Drawer Stroke
Charging Ports/ Child Lock
STEP 1
Install the tabletop and the lifting columns
B
x8
C
5x5
2
1
D
x2
STEP 2
Cable clamp Install the feet
A
x8
C
5x5
Install the feet (3) to the lifting columns with the screw M6 (A*8)
and tighten it with hex wrench (C)
Caution: Pay attention to the directions.
STEP 3
Install the motor and power lines
3
4
Connect the motor plug to the control box, then connect one side of the adapter plug to
the adapter, another side to the power line.
Caution: the motor and power lines can be fixed by cable clamp according to actual use.
Connect the tabletop (1) and the lifting columns (2) with the
screw (Bx8) M8 and tighten it with hex wrench (C).
Caution: Please do not touch the glass surface directly to the
ground during installation, so as not to be scratched by sharp
objects on the table;
C
A
3
C
B
