Spacetronik ET118WE-N Installation Manual

Item No.: ET118WE-N

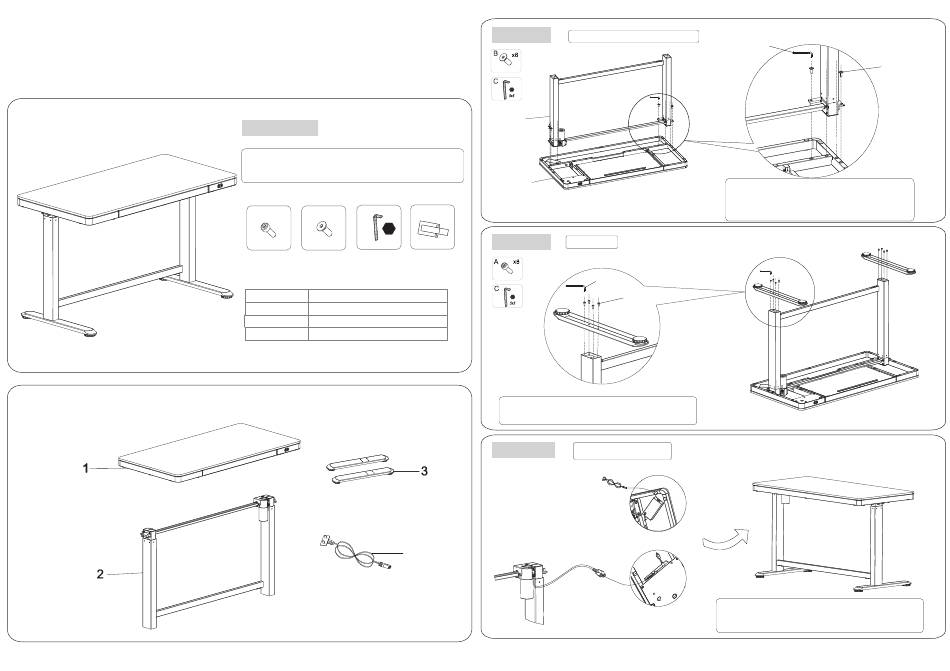

Installation guide
1. Tabletop X1
2. Lifting columns X1
3. Feet X2
4. Power plug X1
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
B
A x8 C x1
x8
M6 M8 5x5 Cable clamp
Column Number 2-Stage
Max. Weight Capacity 50KG
Height Range 730-1220mm
Drawer Stroke 230mm
4
STEP 1
Install the tabletop and the lifting columns
M8
②
①
x2
STEP 2
Install the feet
C
M6
Install the feet (3) to the lifting columns with the screw M6 (A*8)
and tighten it with hex wrench (C)
Caution: Pay attention to the directions.
STEP 3
Install the motor and power lines
C
Connect the tabletop (1) and the lifting columns (2) with the
screw (Bx8) M8 and tighten it with the allen key (C).
Caution: Please do not touch the wooden surface directly to the
ground during installation, so as not to be scratched by sharp
objects on the table;
A
Connect the motor plug to the control box, then connect one side of
the power line to the adapter, another side to the power supply.
Caution: the motor and power lines can be fixed by cable clamp
according to actual use.
B
