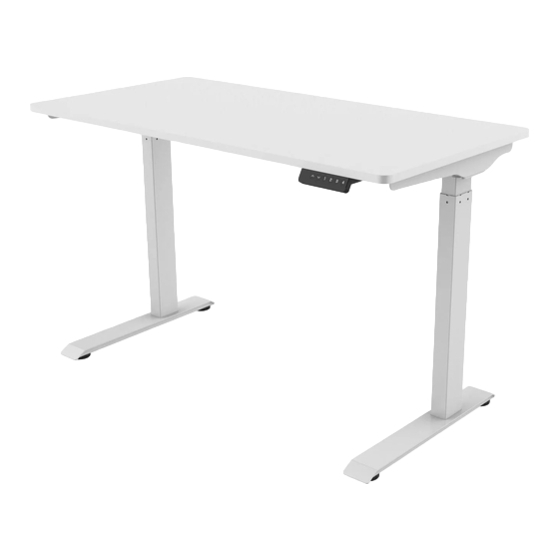

Spacetronik SPE-O122 Installation Manual

Model: SPE-O122

Accessory List

Attention: The drawings below are only for reference which might be slightly different from the actual object, please in kind prevail. Any tools missing
or installation problems, please contact the customer service firstly.
B C
A
x3
x8
x4
ST4.2 M6
M6
Part List
Qty Qty
No. Part No. Part No.
1 2 2 3
1
Tabletop Lifting column
4 2 5 1 6
Feet Power plug
4
7 8
1
Cable
mounts
Cable
Installation guide

Technical Data

Column Number
50KG
Maximum Load
25mm/s
Max Speed
100-240V
Input Voltage
730mm
Lowest Position
1230mm
Highest Position
1200mm(length)
Desktop Size
600mm(width)
Continuous operation for 2 mins at most after
Duty Cyde
pause for 18 mins
0~4 0°C
Applicable Temperature
D
x1
4x4 5x5

Installation Instruction

1
Qty
Part
1
Hand switch
1
2
Adaptor
4
STEP1
B
x4
D
4x4
longside of the
lifting colum
2
Shortside of the desktop
STEP2
C
x8
D
4x4
STEP3
A
x3
D
5x5
3
5
8
6
7
Install the lifting column
2
Rotate the column after
inserting it to the bottom
to avoid height difference
Insert the hexagon of the column
head along the guide groove
1
Install the lifting column (2) to the
tabletop(1), then tighten the
screws (B) with allen key (D)
Install the feet
4
2
Install the feet (4) to the lifting columns (2) with the
screw (C)and tighten it with 4*4 wrench (D)
Install the hand switch
D
3
A
2
Position the hand switch (3) as shown in the picture to align
1 the three underports on the tabletop, then fix it with the
screw (A)and tighten it with 5*5 wrench (D)
1 2
Insert
Rotate the column after inserting
it, making the screws on the
supporting beam into the column slot
3 4
D
B
Screws
Tighten the screws(B) with 4x4 allen key
D
C
D
A
