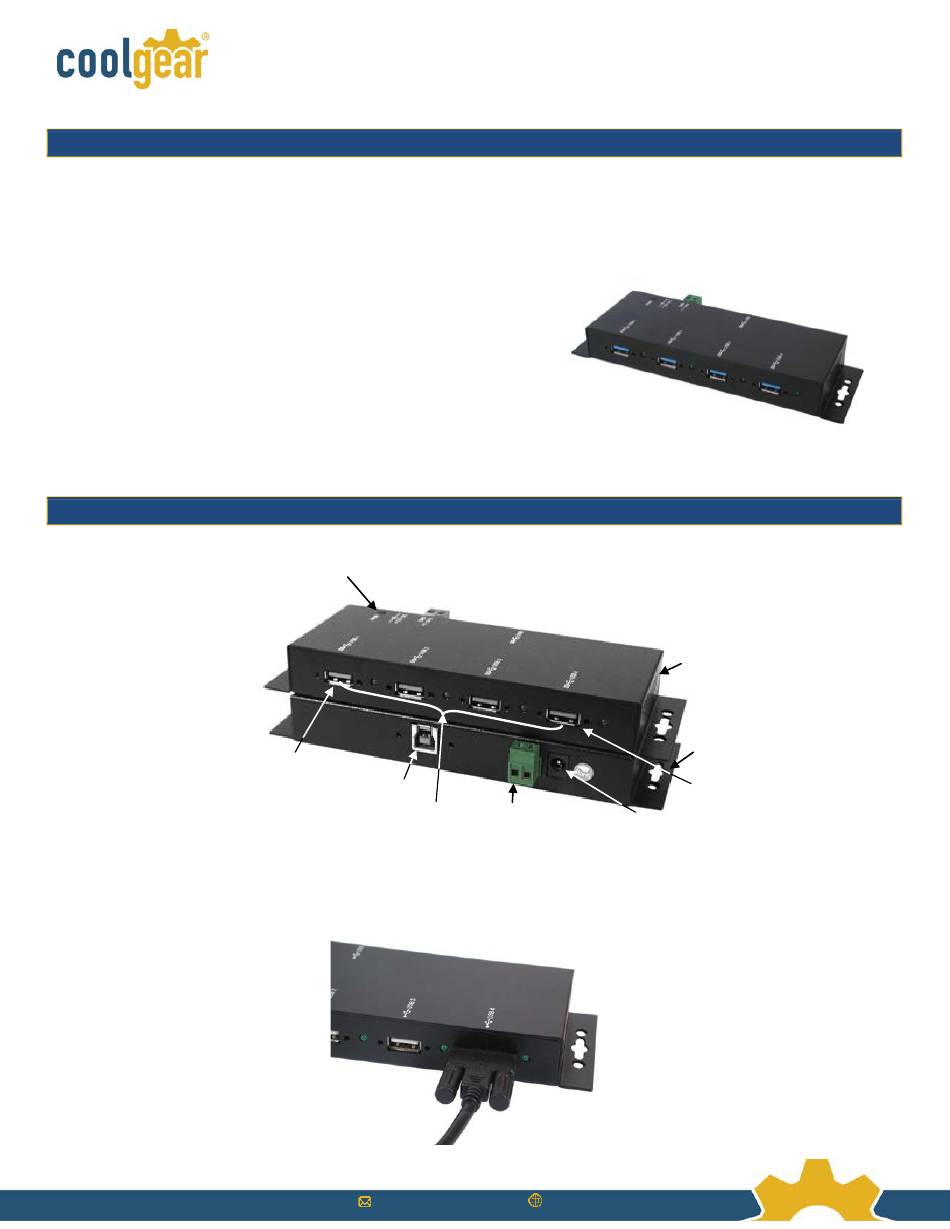

CoolGear USBG-3X4M Installation Manual

4-Port USB 3.0 Metal Hub with Screw Lock Mechanism – Installation Guide
1. INTRODUCTION: USBG-3X4M
Thank you for purchasing this high-speed 4-port USB 3.0 hub. It provides an ideal solution to expand 4 USB 3.0 ports from
one single USB 3.0 host port. It provides metal case with Screw Lock feature for upstream and downstream USB ports. It
provides excellent reliability and performance for most of the applications.

FEATURES:

•
Compliant with USB 3.0 Specification Revision 1.0
• Rigid and Wall-mountable Metal Case
• Provides 4 Downstream Facing Ports
•
Supports Screw Lock Mechanism for Upstream and
Downstream Connectors to Enhance Reliability
•
Supports Super Speed, High-speed and or Full-speed Packet
• Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
•
Supports Self-powered and Bus-powered Mode
•
Supports 900mA Bus Power for Each Downstream Ports

2. CONNECTOR LAYOUT

• Front Side Connection with Screw Lock USB Cable
Downstream USB 3.0 Port
w/ Screw Lock Cable
Power LED
Port #1
Upstream USB 3.0 Port
4 Downstream USB3.0
Ports
Sales@coolgear.com
+7~24V DC Power
+12V DC Jack
Input Terminal Block
www.CoolGear.com
Front View
Unit
Rear View Unit
Port #4
