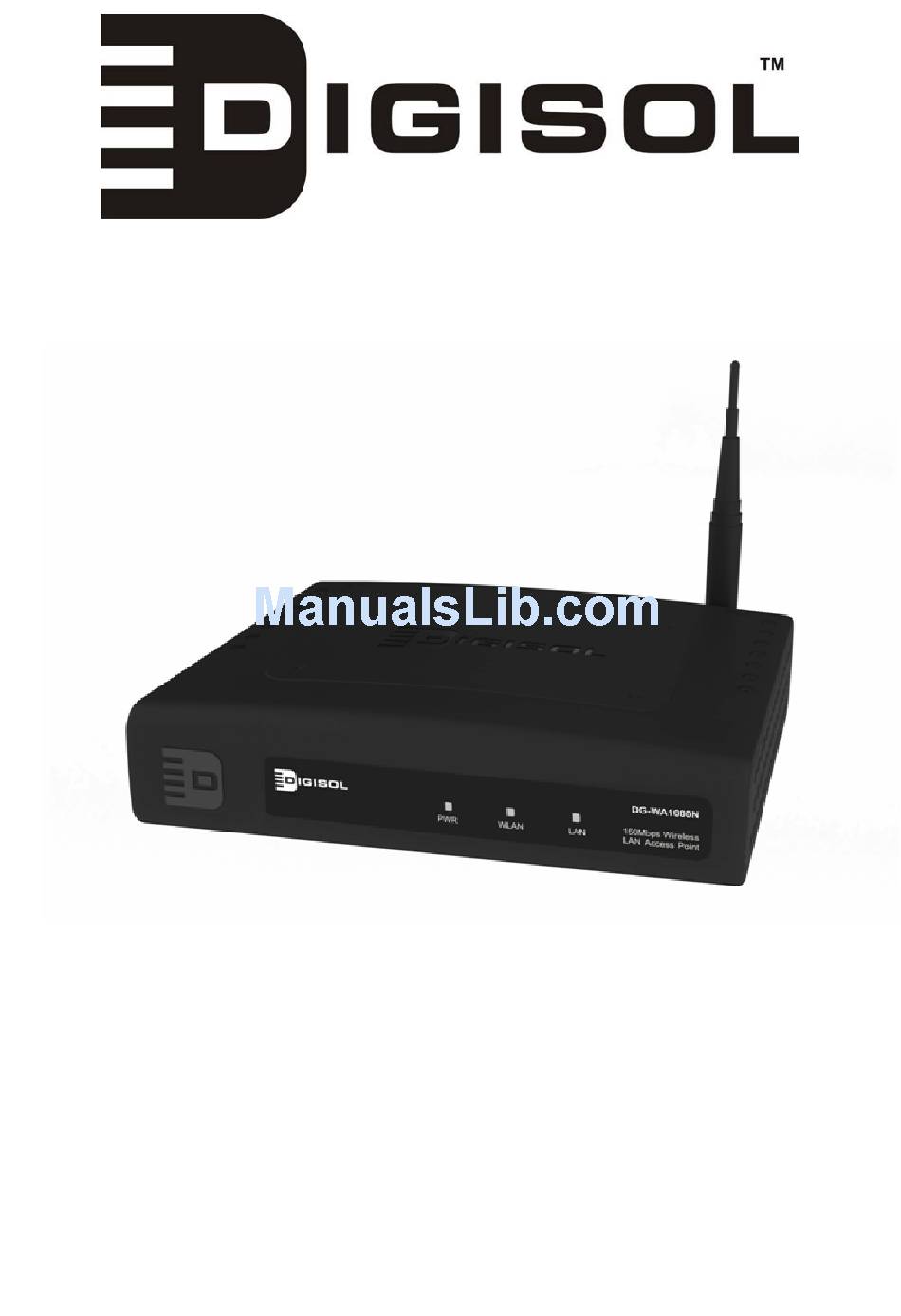

- Page 1 DG-WA1000N 150N Wireless LAN Access Point Quick Installation Guide V1.0 2010-07-19...
- Page 2 DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide FCC warning: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limitations are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Package Contents
DG-WA1000N enables communication between wireless and wired notebooks/desktop computers in the network. It complies with IEEE 802.11n standard and is backward compatible with IEEE 802.11b/g standard. The DG-WA1000N wireless Access Point can provide wireless data transmission rate up to 150Mbps which enhances the sharing of files, photo, audio, video and gaming experience over wireless network. -
Page 4: Access Point Installation
DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide 4. Access Point Installation Step 1: Insert the Setup CD into your CD-ROM drive of notebook/desktop computer. Step 2: Explore the CD and execute the “EZWizard.exe” file. - Page 5 DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide Step 3: Connect one end of a network cable to the LAN port on AP and the other end to one of the LAN port on router. Power ON the router. Click Next to continue.
- Page 6 DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide Step 5: Enter the AP’s password to log in to the AP. The default password is “1234”. It is recommended to change the AP’s password to protect it from being accessed by other users. If you do not wish to change the current password, you can leave “New Password”...
- Page 7 DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide Step 7: Select an operation mode for your Access Point and click Next. The wizard will guide you to finish the following corresponding settings. Step 8: Configure the settings for the operation mode you have selected.
- Page 8 DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide Universal Repeater Click on Site Survey, a “Wireless Site Survey” window will appear. Select the wireless router or AP you wish to repeat and click Connect. Configure a network name in Main SSID for the repeater to be identified.
- Page 9 DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide Point-to-Point / Point-to-MultiPoint / WDS Bridge Note: Same setup procedure applies to Point-to-Point Bridge, Point-to-MultiPoint Bridge and WDS Bridge modes. For bridge mode, you need at least two Access Points. We will use Point-to-Point Bridge as an example.
- Page 10 DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide Step 9: Configure the wireless security settings. It is recommended to use WPA2-PSK(AES) which is the most secured encryption for general users. Step 10: Verify the settings you have configured and click Restart.
- Page 11 DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide Step 11: Click Finish to complete the installation. Congratulations! Your Access Point configuration is now finished.
-
Page 12: Connecting To The Access Point Wirelessly
DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide 5. Connecting to the Access Point Wirelessly. Users must configure their wireless notebook/desktop computer in order to establish a wireless connection to the Access Point. The following instructions help in establishing a wireless connection between a Windows XP computer and the Access Point. - Page 13 DIGISOL DG-WA1000N Wireless LAN Access Point Quick Installation Guide Step 3: Enter the network security key if the wireless network you wish to connect has wireless encryption enabled. Click Connect. The connection should now get established. 6. FAQ Following are the solutions to problems that may occur during the installation and operation of the DIGISOL DG-WA1000N Wireless LAN Access Point.
