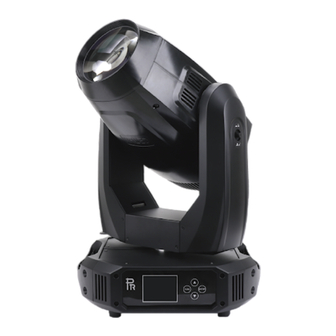

PR Lighting PR-8170A Manual

Xrled 1500-w spot
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XRLED 1500-W Spot
PR-8170A
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-8170A and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting PR-8170A

Summary of Contents for PR Lighting PR-8170A

  • Page 1 XRLED 1500-W Spot PR-8170A This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    Any future technical changes are not subject to further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. User Electrical Goggles Protective High Warning Flames Manual shock Gloves Temperature ●...

  • Page 4: Instructions

    ●If a projector is not water and dust proof, while being operated it should not be under rains or in humidity to avoid short circuit. ●Do not switch on and off a projector constantly in very short intervals, otherwise the light source’s and other electrical parts’...

  • Page 5: Appearance

    TROUBLESHOOTING ● PROBLEM ACTION  Check if the fuse is burned  Check if the power cord is connected well  Check if the switching power supply is bad or not connected well. A The projector can’t be switched on professional technician is required for the repair ...
  • Page 6 CLAMP SAFETY CORD WARMING Please run safety cord through 2 safety holes for safety Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.
  • Page 7 each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above. Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other.

  • Page 8: Setup And Configuration

    Rotating gobo wheel 1 Rotating gobo wheel 2 Color wheel Lock the tilt and unfasten 6 fast fit screws in the front cove. Open the cover and you’ll see the structures as the figures above. For the replacement of color filters, use the fingers to remove the filters and place new ones. For the rotating gobos: remove the rotator by hand;...
  • Page 9 submenus and each submenu has a specific function. For details, please see the “OPERATION MENU” with following the 6 point.. ◄, ►, ▲ and ▼ or icon for the function desired. In the page of function setup, push any key of ◄...

  • Page 10: Operation Menu

    Slave Slave Master INPUT OUTPUT INPUT OUTPUT Terminator 6. OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL Short mode：1～486 Standard mode：1～482 DMX Address Extend mode：1～475 Default IP Address 2.X.X.X /10.X.X.X Address IP Address Custom IP Address X.X.X.X SubNet Mask X.X.X.X...
  • Page 11 Un-Link Wireless Really Un-Link? Confirm/ Cancel Factory Defaults Restore Defaults? Confirm/ Cancel Pan DMX Invert OFF/ ON Tilt DMX Invert OFF/ ON Pan/Tilt Settings Pan Tilt Swap OFF/ ON XY Feedback OFF/ ON Pan/Tilt mode Speed/Time Iris Invert OFF/ ON Zoom Invert OFF/ ON Invert Settings...
  • Page 12 Driver Board 3 XX℃/F Driver Board 4 XX℃/F Fan Board XX℃/F LED Sensor XX℃/F Sys= XXX Display Board Boot =XXX Sys= XXX Pan & Tilt Board Boot =XXX Sys= XXX Driver Board 1 Boot =XXX Sys= XXX Software Version Driver Board 2 Boot =XXX Sys= XXX Driver Board 3...
  • Page 13 Pan Fine Tilt Tilt Fine Pan/Tilt Speed&Time Factory Test Change Operation Mode? Confirm/ Cancel DMX Mode Preset Memory Change Operation Mode? Confirm/ Cancel User Memory 1 Change Operation Mode? Confirm/ Cancel Master Mode User Memory 2 Change Operation Mode? Confirm/ Cancel Operation Mode Preset Memory...

  • Page 14: Dmx Protocol

    Cyan Fine Yellow Yellow Fine Magenta Magenta Fine CTO Fine Colour Wheel Colour Wheel Fine Iris Iris Fine Iris Macro Rot.Gobo1 Wheel Rot.Gobo1 Rotation Rot.Gobo1 Rotation F XXX Rot.Gobo2 Wheel Rot.Gobo2 Rotation Rot.Gobo2 Rotation F XXX Prism Prism Rotation Effect Wheel Effect Wheel R Frost Focus...
  • Page 15 Fine dimmer CYM Macro The following functions can be used after CMY,CTO, and Color Wheels channels are disabled No Function Colour Macro 1 Colour Macro 2 Colour Macro 3 Colour Macro 4 Colour Macro5 Colour Macro 6 Colour Macro 7 Colour Macro 8 Colour Macro 9 Colour Macro 10...
  • Page 16 Colour Macro 39 Colour Macro 40 Colour Macro 41 Colour Macro 42 Colour Macro 43 Colour Macro 44 Colour Macro 45 Colour Macro 46 Colour Macro 47 Colour Macro 48 Colour Macro 49 Colour Macro 50 Colour Macro 51 Colour Macro 52 Colour Macro 53 Colour Macro 54 Colour Macro 55...
  • Page 17 Colour Macro 82 Colour Macro 83 Colour Macro 84 Colour Macro 85 Colour Macro 86 Colour Macro 87 Colour Macro 88 Colour Macro 89 Colour Macro 90 Colour Macro 91 Colour Macro 92 Colour Macro 93 Colour Macro 94 Colour Macro 95 CMY colour mixing from slow to fast Cyan Cyan (Linear 0-100%)
  • Page 18 Color 4(Orange) Color 4(Orange) /Color 5(Green) Color 5(Green) Color 5（Green））/Color 6（Blue） Color 6(Blue) Color6(Blue)/ White White Clockwise rainbow effect rotation speed from slow to fast Anti-clockwise rainbow effect rotation speed from slow to fast Colour Wheel Fine Colour Continual positioning in 16 Bit precision Iris Linear Iris from small to big 0-100% Iris in 16 bit...
  • Page 19 Clockwise rotation from slow to fast Stop Anti-clockwise rotation from slow to fast Rotating gobo wheel 1 rotation in 16 bit Rotating gobo wheel fine rotation Rotating gobo wheel 2 White Gobo1 Gobo2 Gobo3 Gobo4 Gobo5 Gobo6 Clockwise rotation from slow to fast Anti-clockwise rotation from slow to fast Gobo1 shake from slow to fast Gobo2 shake from slow to fast...
  • Page 20 Reverse rotation from slow to fast Frost Light Frost from 0% to 100% Focus Linearly focusing Focus Fine Focus in 16 precision Zoom Linearly zooming Zoom Fine Zoom in 16 Bit precision Pan movement Pan Fine Pan movement in 16 bit precision Tilt Tilt movement Tilt fine...

  • Page 21: Technical Data

    LED Refresh Rate 10000Hz LED Refresh Rate 12000Hz LED Refresh Rate 15000Hz LED Refresh Rate 20000Hz LED Refresh Rate 250000Hz Reserved Pan/Tilt speed mode Pan/Tilt time mode Reserved Pan/Tilt reset Colour system reset Gobo wheels reset Reserved Zoom/focus/frost/prism reset Others(Iris/ effect wheel/Framing module) reset Total reset Reserved Reserved...
  • Page 22 Bi-directional rainbow effect with variable speeds and half color effect Linear /stepping color changing Linear CTO system(0-100%) GOBOS 2 rotating gobo wheels: 6 exchangeable+ white, glass or metal gobos Bi-directional rotation, indexing, shake with varied speeds, bi-directional scrolling with varied speeds Rotating gob wheel1: Rotating gob wheel2: Rotating gobo external size: ∅37.5mm;, image size: ∅24mm...
  • Page 23 IRIS Linear iris 5-100% with macros STROBE Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT Pan 540º , Tilt 270º with auto position correction BEAM ANGLE Linear zoom 6° ～ 56° with 16 bit precision CONTROL International standard DMX512 signal , 5 pin interface(Optional 3pin interface) RDM control protocol ArtNet protocol 27channels in short mode, 31channels in standard mode,38channel in extended mode...

  • Page 24: Circuit Diagram And.pcb Connections

    SIZES: LIGHT OUTPUT: 56°（lux） 1882 6°（lux） 0 68560 17690 7862 4422 2830 1966 DISTANCE（m） 0m 6° DIAMETER（m） 0.60 1.19 1.79 2.38 2.98 3.57 56°DIAMETER（m） 0 4.90 9.79 14.69 19.59 24.49 29.38 CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM ●...
  • Page 26 PCB CONNECTIONS ● Master board ● Name DMX512 signal input Reserved Reserved Reserved Power input Reserved 485 signal input Wireless signal input Ethernet module interface 8-channel driver board1 ● Name 485 signal input 485 signal output Focus 1 Focus 2 Zoom 1 Zoom 2 Magnet sensor for zoom...
  • Page 27 LED driver board ● Name Power input –negative Power input positive LED output PWM input Pan /Tilt driver board ● Name Optical sensor for Tilt Magnet sensor for Tilt Reserved Reserved Power input 485 signal output 485 signal input Reserved Magnet sensor for Pan Optical sensor for Pan Pan motor...
  • Page 28 5-channel driver board ● Name Magnet sensor for Yellow/CTO Magnet sensor for magenta. Magnet sensor for color filters/cyan flag Reserved Yellow Reserved 485 signal input 485 signal output Magenta Color wheel Cyan Reserved Reserved Power input 3-channel driver board ● Name 485 signal input 485 signal output...

  • Page 29: 10Component Order Codes

    10. COMPONENT ORDER CODES NAME CODE NUMBER REMARK 192010215 SWITCHING POWER SUPPLY 192010226 SWITCHING POWER SUPPLY LED ENGINE MODULE 150020323 LED ENGINE MODULE FAN 030060074C HEAD FAN 030040119 TILT BELT 290151207 PAN BELT 290151240 030040213A FOCUS MOTOR 030040154A ZOOM MOTOR PRISM IN/OUT MOTOR 030040253 PRISM ROTATION MOTOR...
  • Page 30 Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N:320021006...
