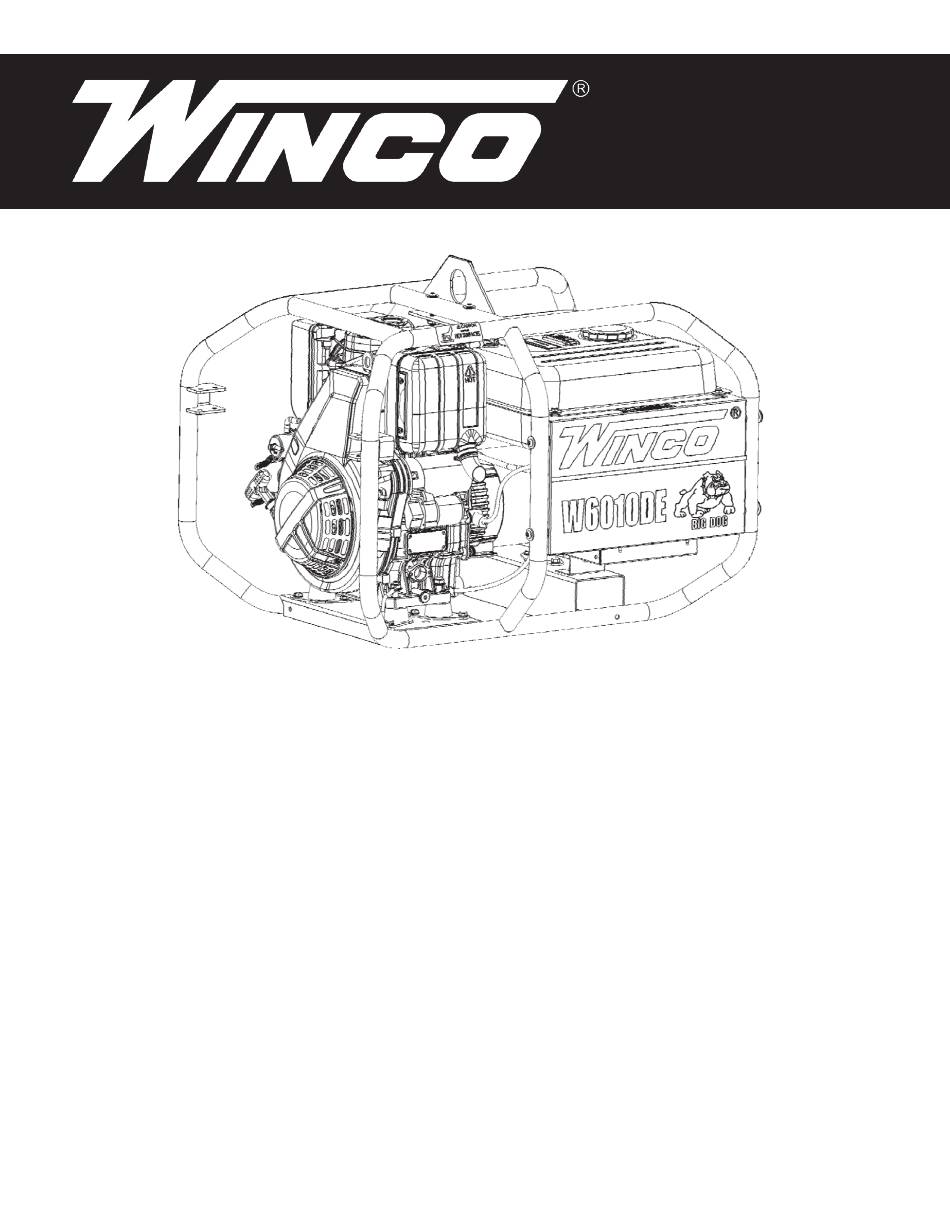

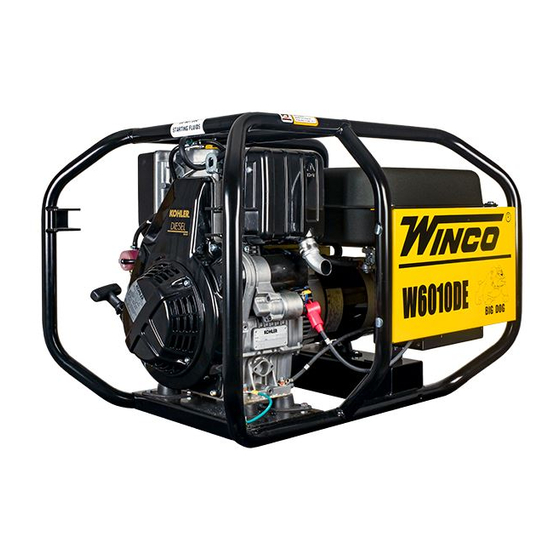

- Page 1 W6010DE/I, J & K GENERATOR INSTALLATION AND OPERATORS MANUAL WINCO INC. 225 S. CORDOVA AVE. LE CENTER, MN 56057 SALES DEPT. 507-357-6821 SERVICE DEPT. 507-357-6831 www.wincogen.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAVE THESE INSTRUCTIONS SPECIFICATIONS GENERATOR ENGINE TESTING POLICY SAFETY IMPORTANT SAFETY INSTRUCTIONS CALIFORNIA PROPOSITION 65 ANSI SAFETY DEFINITIONS INTRODUCTION INTENDED USES RESTRICTED USES UNIT CAPABILITIES GENERATOR CONNECTIONS STARTING ELECTRIC MOTORS PREPARING THE UNIT UNPACKING LUBRICATION OIL RECOMMENDATIONS DIESEL FUEL BATTERY INSTALLATION LIFTING EYE INSTALLATION... -
Page 3: Save These Instructions
SPECIFICATIONS COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If GENERATOR you should ever need to contact us concerning this unit, it will help us to respond to your needs faster. -
Page 4: Safety
SAFETY 2. FIRE HAZARD - Gasoline and other fuels present a hazard of possible explosion and/ IMPORTANT SAFETY INSTRUCTIONS or fire. SAVE THESE INSTRUCTIONS A. Do not refuel when the engine is running or hot. B. Keep fuel containers out of reach of children. This manual contains important information that should be understood C. -
Page 5: Introduction
INTRODUCTION UNIT CAPABILITIES INTENDED USES GENERATOR CONNECTIONS This engine generator set has been designed primarily for portable W6010DE: 120 Volt and 240 Volt receptacles are provided for heavy duty commercial use. Both 120 volt and 240 volt receptacles connection to various loads. The following diagram represents this are provided in the control panel to plug in your loads (lights, portable 5,160 watt (rated output) generator. -
Page 6: Preparing The Unit
The generator will not be damaged if it can bring the let WINCO take care of the freight claim. If you sign for the unit, the motor up to speed in a few seconds of time. If difficulty is experienced... -
Page 7: Oil Recommendations
BATTERY INSTALLATION OIL RECOMMENDATIONS Outdoor temperatures determine the proper oil viscosity for the This engine generator set is shipped with a battery tie down for engines. Use the chart to select the best viscosity for the outdoor customer installation. temperature range expected. A customer supplied 12 Volt battery, BCI group U1 rated at 300 CCA or larger is recommended for this electric start engine-generator set. -
Page 8: Lifting Eye Installation
LIFTING EYE INSTALLATION 2. Use tools with insulated handles. 3. Check both the battery cable ends and the battery posts to be sure they are free of corrosion. 4. Always connect the battery positive first and then connect the battery negative cable. When removing the battery cables from the battery reverse the procedure, disconnect the negative cable first and then the positive cable. -
Page 9: Initial Start Up
INITIAL START UP 5. Return key to 1st position when engine is running (Ref A). The throttle control on these generators is preset and locked to operate at 3600 RPM (nominal) with no load speed set at 3690 RPM. Only a trained service technician should be allowed to adjust this speed setting. -
Page 10: Connecting The Loads
CONNECTING THE LOADS OPERATING SPEED The engine-generator must be run at the correct speed in order to The engine-generator covered in this manual was designed for portable produce the proper electrical voltage and frequency. use. Do NOT operate indoors. The unit should be stored in a warm, dry location. -
Page 11: Grounding
GFCI compatible. If the transfer switch is not GFCI compatible, the breaker on the generator will always trip. Your WINCO portable generator ships with a bonded neutral. You can safely use this generator without external grounding as long as all 3. -
Page 12: Engine Care
ENGINE CARE C. Replace oil drain plug. D. Remove oil fill cap. MAINTENANCE SCHEDULE Daily or Every Every Every 10 hrs 250* hrs 500** hrs Check Oil ü Check oil filter ü Check dry air cleaner ü Fuel tank cleaning ü... -
Page 13: Generator Care
GENERATOR CARE WARNING: EQUIPMENT DAMAGE Never start or run the engine with the air filter removed. Proper care and maintenance of the generator is necessary to ensure a A. Remove the cover. long trouble free life. EXERCISING THE GENERATOR The generator should be operated every three to four weeks. It should be operated for a period of time sufficient to warm the unit up and to dry out any moisture that has accumulated in the windings. -
Page 14: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Out of fuel Start switch in OFF position Fuel Valve turned off Plugged fuel filter Blown fuse in key switch Battery required to open solenoid Voltage too low Engine speed is too low Generator overloaded Defective stator Defective rotor (field) -
Page 15: Control Panel Wiring Diagram
CONTROL PANEL WIRING DIAGRAM OPM-107 REV E... -
Page 16: 36 Month Limited Warranty
WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE. WINCO is liable for the repair or replacement of the product only and is not liable for incidental or consequential damages as permitted by your state. This warranty gives you specific legal rights which may vary from state to state.
