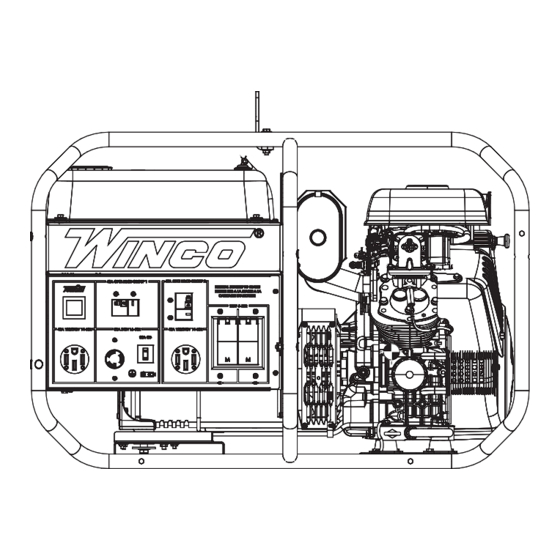

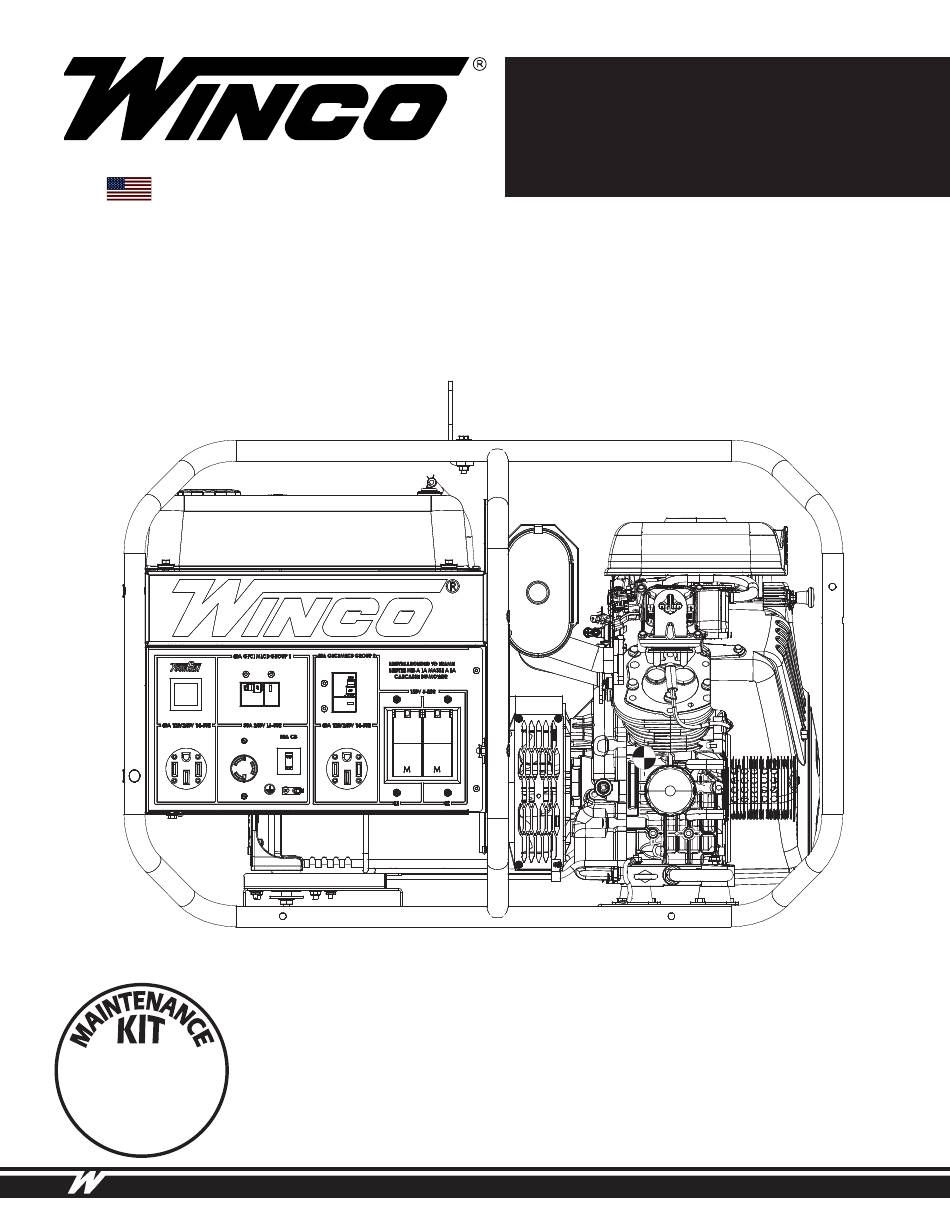

- Page 1 WL22000VE/A WL22000VE-03/A GENERATORS GENERATORS AN AMERICAN COMPANY INSTALLATION AND OPERATORS MANUAL 16200-011 www.wincogen.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION SAVE THESE INSTRUCTIONS SPECIFICATIONS GENERATOR ENGINE INTRODUCTION TESTING POLICY INTENDED USES RESTRICTED USES UNIT CAPABILITIES GENERATOR CONNECTIONS STARTING ELECTRIC MOTORS PREPARING THE UNIT UNPACKING LUBRICATION OIL RECOMMENDATIONS OIL ALERT SYSTEM GASOLINE BATTERY INSTALLATION BATTERY CHARGING LIFTING EYE INSTALLATION OPTIONAL DOLLY KIT INITIAL START UP... -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS WARNING: FIRE HAZARD This engine generator set has been designed and Gasoline and other fuels present a hazard of possible manufactured to allow safe, reliable performance. Poor explosion and/or fire. maintenance, improper or careless use can result in A. -
Page 4: Save These Instructions
Mecc Alte COPY YOUR MODEL AND SERIAL NUMBER HERE Generator Model Number AME3 No other WINCO generator has the same serial number as Part Number 16346-043 yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster. -
Page 5: Introduction
INTRODUCTION TESTING POLICY Before any generator is shipped from the factory, it is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current, and frequency are carefully checked. Rated output of generator is based on engineering tests of typical units, and is subject to, and limited by, the temperature, altitude, fuel, and other conditions specified by the manufacturer of applicable engines. -
Page 6: Unit Capabilities
UNIT CAPABILITIES is required for only an instant. The generator will not be GENERATOR CONNECTIONS damaged if it can bring the motor up to speed in a few seconds of time. If difficulty is experienced in starting WL22000VE: 120 Volt and 240 Volt receptacles are motors, turn all other electrical loads off and if possible provided for connection to various loads. -
Page 7: Preparing The Unit
1. As you receive your unit, it is critical to check it for any damage. If any damage is noted, it is always easiest to refuse the shipment and let WINCO take care of the freight claim. If you sign for the unit, the transfer of the ownership requires that you file the freight claim 2. -
Page 8: Battery Installation
period of time as the fuel will lose its volatile properties flywheel charger generates a small AC current that passes and you will be left with varnish residue. The varnish through a diode assembly to produce DC charging current like substance will clog the carburetor and will not burn of about 1 to 3 Amps. -
Page 9: Initial Start Up
INITIAL START UP STOPPING AND STORING The throttle control on these generators is preset and locked to operate at 3600 RPM (nominal) with no load 1. Move the key to the “OFF” position. speed set at 3690 RPM. Only a trained service technician should be allowed to adjust this speed setting. -
Page 10: Connecting The Loads
STANDARD PORTABLE GENERATOR Your WINCO portable generator ships with a bonded neutral. You can safely use this generator without external grounding as long as all loads are powered through the receptacle panel. - Page 11 receptacle (two hot, one ground, and one neutral) has been provided on the control panel for use in temporary power applications requiring 120/240 Volt power. Consult a licensed electrician for wiring the TemPower plug and connecting it as temporary service. To connect these units directly to an un-powered, isolated construction site TemPower panel, have your electrician connect to the control panel using a 120/240 Volt, 4-wire...
-
Page 12: Yourgen
YOURGEN not be changed. If the generator is being run continuously The WINCO YourGen meter allows you to on a very light load, it is often advisable to lower the see useful information about your generator operating speed slightly. from the front panel by displaying RPMs, Voltage, frequency, load, hours, and The engine will govern itself at full speed. - Page 13 120 Volt and 120/240 Volt receptacles are provided for spark plug wire and then open the receptacle panel. Locate connection to various loads. the backside of the YourGen meter. Gently pry the back plate off using the slot located on top. WL18000VE-03/B: 120 Volt and 240 Volt receptacles are provided for connection to various loads.
-
Page 14: Engine Care
ENGINE CARE sure to use the proper grade oil based on your MAINTENANCE SCHEDULE operating temperature. If major engine service or repair is required, contact an NOTE: This engine requires 73.6 ounces (2.3 quarts) of authorized engine service center. The manufacturer of oil if it is completely drained. -
Page 15: Generator Care
GENERATOR CARE TROUBLESHOOTING Problem Possible Causes Proper care and maintenance of the generator is necessary Won’t start Low oil level to ensure a long trouble free life. Fouled spark plug Out of fuel EXERCISING THE GENERATOR Start switch in OFF position Fuel Valve turned off The generator should be operated every three to four Plugged fuel filter... -
Page 16: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM OPM-110/E... -
Page 17: Limited Warranty
Air cooled units purchased for stock have 1 year to be sold. The warranty to the original retail customer commences on the date of sale of the product to them. All liquid cooled units have 180 days from the Winco invoice to submit a start up date. - Page 18 Standby use is defined as an application where utility power is present -and- the generator set is used as emergency backup during utility power outages. WINCO reserves the right to change or improve it’s products without incurring any obligations to make such changes or improvements on products purchased previously.
-
Page 19: California Evaporative Emission Control
22. Travel time or service calls unless specifically authorized by Winco, Inc. in writing. GENERAL INFORMATION The WINCO, Inc. Service Department is open from 7:30 AM to 4:30 PM Central Standard time. It is located at 225 South Cordova Ave., Le Center, MN, 56057-1805. Phone Numbers: Service Department - 507-357-6831 FAX Line - 507-357-4857. - Page 20 GENERATORS AN AMERICAN COMPANY 225 S. CORDOVA AVE • LE CENTER, MN 56057 Sales: 507-357-6821• sales@wincogen.com Service: 507-357-6831 • service@wincogen.com www.wincogen.com OPM-110/E...
