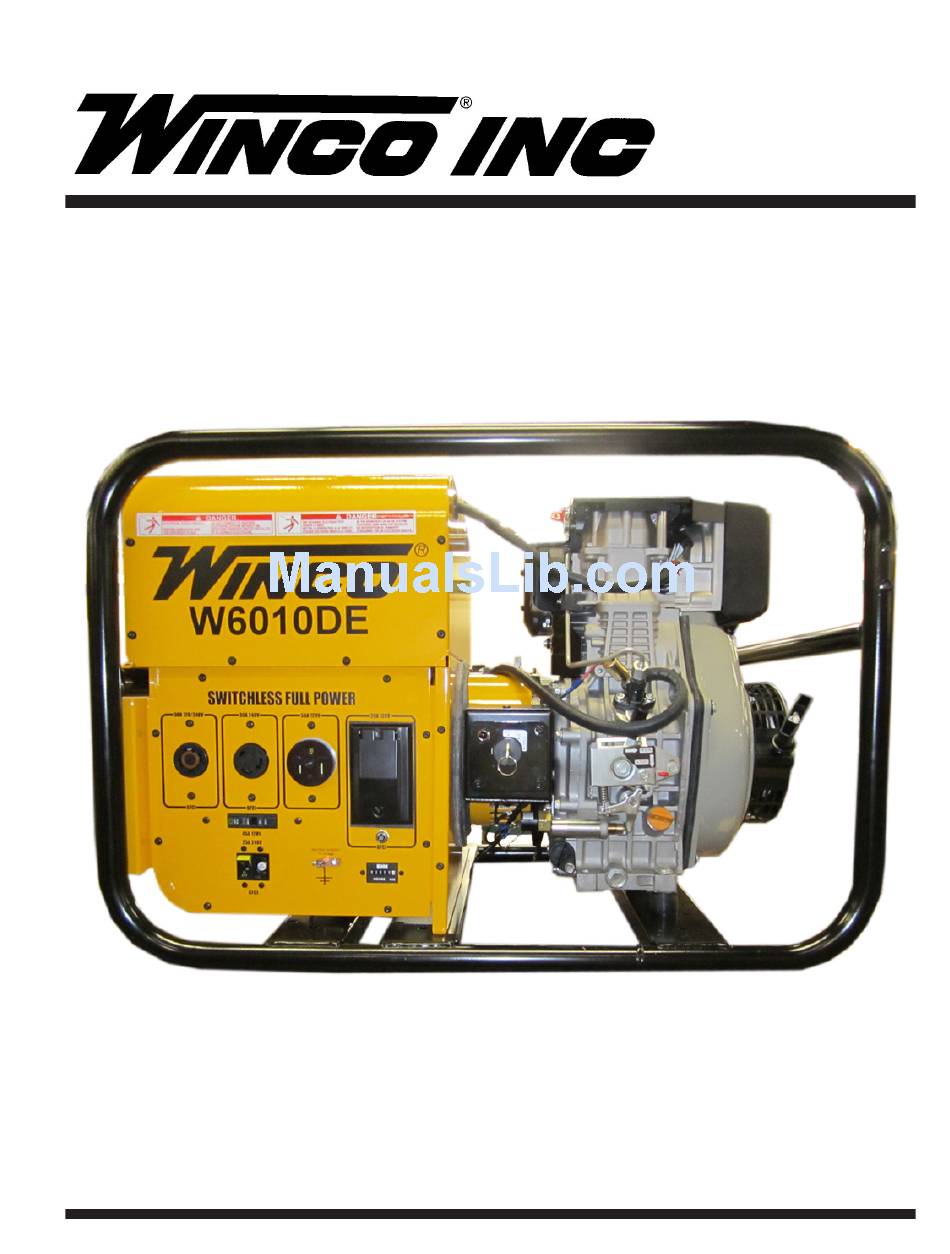

- Page 1 INSTALLATION, OPERATIONS and MAINTENANCE INSTRUCTIONS W6010DE/F OWNERS MANUAL 60706-215...
-
Page 2: Table Of Contents
PROPER USE AND INSTALLATION USING THIS MANUAL You must be sure your new engine generator set is: Congratulations on your choice of a Winco generator set. * Properly serviced before starting You have selected a high-quality, precision-engineered * Operated in a well ventilated area... -
Page 3: Guide To Product Safety
This engine generator set has been designed and manufac- b. Keep fuel containers out of reach of children. tured to allow safe, reliable performance. Poor maintenance, c. Do not smoke or use open flame near the generator set improper or careless use can result in potential deadly or fuel tank. -
Page 4: Specification Table
SPECIFICATIONS RESTRICTED USES MODEL W6010DE/F 1. DO NOT remove from the base assembly. Removal of the generator from the base assembly or operating Generator without the shock mounts installed may cause excessive Surge Watts 6000 vibration and damage to the engine generator set. Continuous Watts 5500 Volts... -
Page 5: Unpacking The Unit
Starting Electric Motors - Electric motors require much Trying to start a larger motor or higher code (ie. J or K) motor more current (amps) to start them than to run them. may result in damage to both the generator and the electric Some motors, particularly low cost split-phase motors, motor especially 120 volt motors. -
Page 6: Operation/Installation
A twelve volt battery, group U1 rated at 300 CCA or larger is recommended for this electric start engine generator set. Follow the battery manufacturers recommendations for servicing and charging prior to use. Connect the battery to the electric start system using the cables provided. -
Page 7: Starting Hints
2. Electric Starting - Always keep the battery charged, but All engines have a tendency to slow down when a load is especially during cold weather operation. applied. When the electrical load is connected to the generator, the engine is more heavily loaded, and as a a. -
Page 8: Connecting The Load
WIRING installed, such as the Emergency Transfer/Service (ET/S) system available through your WINCO dealer. Plug your tools such as drills, saws, blowers, sump pump The emergency distribution panel must be installed and other items to be powered directly into the generator by a licensed electrician according to all applicable receptacles. -
Page 9: Engine Care
amperage is available from the generator set. Some LOW OIL LEVEL SHUTDOWN SYSTEM circuit breakers may still have to be turned off to prevent an overload on the generator during the initial This low oil warning system will automatically stop the start up. -
Page 10: Cleaning
Voltage too low *Engine speed is too low. 1. Keep the air inlet screen on both the engine and *Generator overloaded. generator free of any dirt or debris to insure proper *Defective stator. cooling. At least yearly remove the blower housing on the *Defective rotor (field). -
Page 11: Ac Wiring Diagram
Page 9 60706-215... -
Page 12: Month Warranty
To the extent permitted by law, any and all warranties, including those of merchantability and fitness for a particular purpose, are limited to 24 months from date of purchase. In no event is WINCO liable for incidental or consequential damages.
