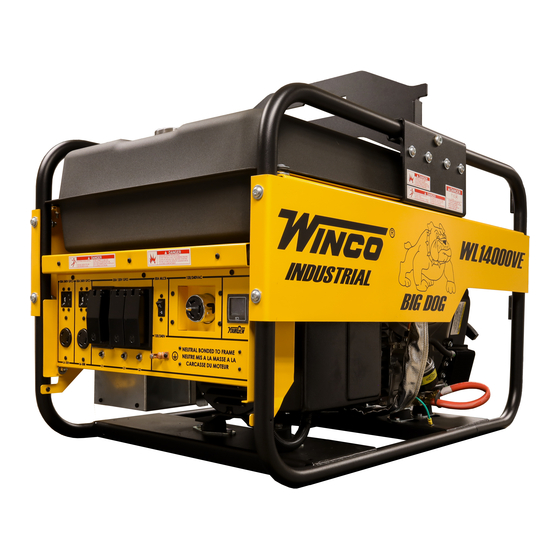

- Page 1 WL14000VE-03/A GENERATOR INSTALLATION AND OPERATORS MANUAL 16200-051 www.wincogen.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION SAVE THESE INSTRUCTIONS SPECIFICATIONS GENERATOR ENGINE INTRODUCTION TESTING POLICY INTENDED USES RESTRICTED USES UNIT CAPABILITIES GENERATOR CONNECTIONS STARTING ELECTRIC MOTORS PREPARING THE UNIT UNPACKING LUBRICATION OIL RECOMMENDATIONS OIL ALERT SYSTEM FUELING BATTERY INSTALLATION BATTERY CHARGING LIFTING EYE INSTALLATION OPTIONAL DOLLY KIT INITIAL START UP... -
Page 3: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS WARNING: FIRE HAZARD This engine generator set has been designed and Gasoline and other fuels present a hazard of possible manufactured to allow safe, reliable performance. Poor explosion and/or fire. maintenance, improper or careless use can result in A. -
Page 4: Save These Instructions
COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster. -
Page 5: Specifications
SPECIFICATIONS GENERATOR Model WL14000VE-03/A Surge Watts 14,000 Continuous Watts 11,760 Volts 120/240 Amps 58/49 Generator Manufacturer Mecc Alte Generator Model Number S20F-230/A Part Number 16428-002 Capacitors 300323-112 (qty 1) 300323-212 (qty 2) ENGINE Engine Manufacturer Briggs & Stratton Engine Model Number... -
Page 6: Introduction
INTRODUCTION TESTING POLICY Before any generator is shipped from the factory, it is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current, and frequency are carefully checked. Rated output of generator is based on engineering tests of typical units, and is subject to, and limited by, the temperature, altitude, fuel, and other conditions specified by the manufacturer of applicable engines. -
Page 7: Unit Capabilities
UNIT CAPABILITIES The heavy surge of current required for starting motors GENERATOR CONNECTIONS is required for only an instant. The generator will not be damaged if it can bring the motor up to speed in a few WL14000VE: 120 Volt and 240 Volt receptacles are seconds of time. -
Page 8: Preparing The Unit
If any damage is noted, it is always easiest to consumption. Check the oil level frequently. refuse the shipment and let WINCO take care of the freight 5W-30 claim. If you sign for the unit, the transfer of the ownership... -
Page 9: Battery Installation
Never use gasoline that has been stored for an extended normal operating conditions, but were not intended to be period of time as the fuel will lose its volatile properties used as a battery charger. and you will be left with varnish residue. The varnish like substance will clog the carburetor and will not burn WARNING properly. -
Page 10: Initial Start Up
INITIAL START UP OPERATING SPEED WARNING: PERSONAL INJURY The engine-generator must be run at the correct speed Improper maintenance, or failure to fix any problems in order to produce the proper electrical voltage and during operation, could cause equipment damage frequency. -
Page 11: Connecting The Loads
CONNECTING THE LOADS and carburetor will still leave a small amount of fuel in carburetor. It is best extended storage practice to treat the fuel before draining. The engine-generator covered in this manual was designed for portable use. Do NOT operate indoors. The unit should D. -
Page 12: Grounding
GFCI protected generators. STANDARD PORTABLE GENERATOR 2. If the generator set is connected to an existing Your WINCO portable generator ships with a bonded distribution system, a fully isolated manual transfer switch neutral. You can safely use this generator without external must be installed. -
Page 13: Yourgen
YOURGEN The engine will govern itself at full speed. Intentionally The WINCO YourGen meter allows you to see useful overriding the governor and operating the generator at information about your generator from the front panel low voltage may damage both the generator and any load by displaying RPMs, Voltage, frequency, load, hours, and connected to it. - Page 14 The following diagram represents this 11,760 watt (rated output) generator. A & B represent the 120 volt output legs of this generator. Up to 5,880 watts at 120 volts (58 Amps) can be drawn from the receptacles attached to either A or B output legs.
-
Page 15: Engine Care
Outdoor temperatures determine the proper oil viscosity for air filter on a hard surface. the engines. Winco recommends our 5W-30 fully synthetic If the air filter is excessively dirty oil to give you excellent protection in cold temperatures replace with a new filter. You... -
Page 16: Spark Plug
Then allow it to thoroughly air dry. DO NOT oil the pre- cleaner. 7. Install the pre-cleaner to the air filter 8. Assemble the dry pre-cleaner to the air filter 9. Install the air filter 10. Install the cover and secure with the fasteners SPARK PLUG CAUTION: EQUIPMENT DAMAGE Incorrect spark plugs can damage the engine. -
Page 17: Generator Care
GENERATOR CARE Proper care and maintenance of the generator is necessary to ensure a long trouble free life. EXERCISING THE GENERATOR The generator should be operated every three to four weeks. It should be operated for a period of time sufficient to warm the unit up and to dry out any moisture that has accumulated in the windings. -
Page 18: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Fouled spark plug Out of fuel Start switch in OFF position Fuel Valve turned off Plugged fuel filter Blown fuse in key switch Weak or dead battery Voltage too low Engine speed is too low Generator overloaded Defective stator Defective rotor (field) -
Page 19: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM OPM-168/A... -
Page 20: Limited Warranty
Air cooled units purchased for stock have 1 year to be sold. The warranty to the original retail customer commences on the date of sale of the product to them. All liquid cooled units have 180 days from the Winco invoice to submit a start up date. - Page 21 Standby use is defined as an application where utility power is present -and- the generator set is used as emergency backup during utility power outages. WINCO reserves the right to change or improve it’s products without incurring any obligations to make such changes or improvements on products purchased previously.
- Page 22 22. Travel time or service calls unless specifically authorized by Winco, Inc. in writing. GENERAL INFORMATION The WINCO, Inc. Service Department is open from 7:30 AM to 4:30 PM Central Standard time. It is located at 225 South Cordova Ave., Le Center, MN, 56057-1805. Phone Numbers: Service Department - 507-357-6831 FAX Line - 507-357-4857.
-
Page 23: Ca Evap Emission Control
2020 generator. In California, new equipment that uses small off-road engines must be designed, built, and equipped to meet the State’s stringent anti-smog standards. WINCO must warrant the evaporative emission control system on your generator for the period listed below provided there has been no abuse, neglect or improper maintenance of your equipment leading to the failure of the evaporative emission control system. - Page 24 225 S. CORDOVA AVE • LE CENTER, MN 56057 Sales: 507-357-6821• sales@wincogen.com Service: 507-357-6831 • service@wincogen.com www.wincogen.com OPM-168/A...
