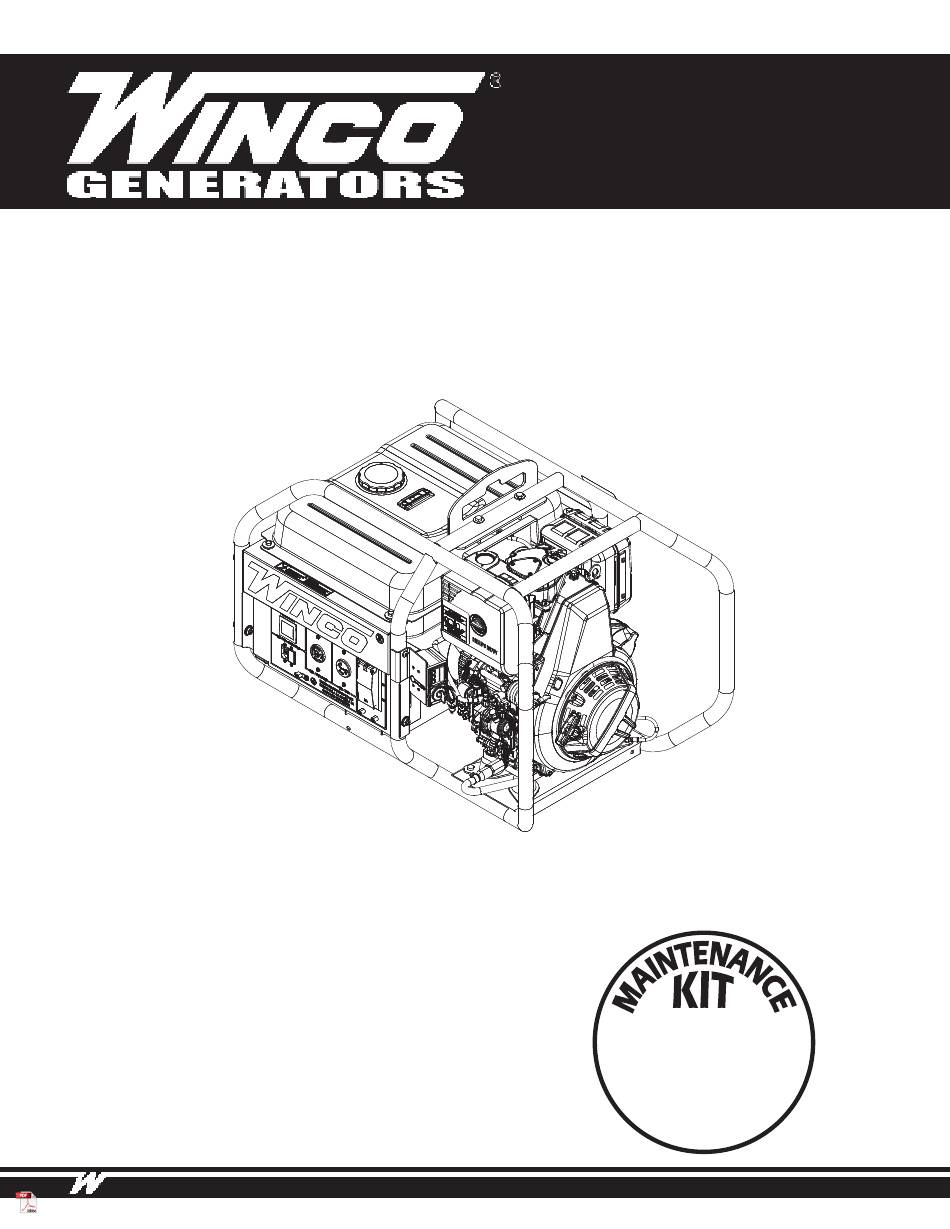

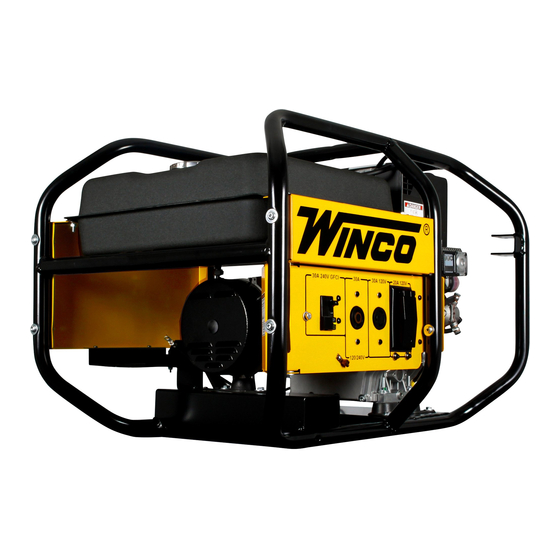

GENERATORS
INSTALLATION & OPERATORS
MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as yours.
If you should ever need to contact us concerning this unit, it will
help us to respond to your needs faster.
MODEL ________________________________________________
SERIAL NUMBER ________________________________________
16200-014
PURCHASE DATE _______________________________________
DEALER NAME _________________________________________
DEALER PHONE # ______________________________________
www.wincogen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W6010KE-03/A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winco W6010KE-03/A

Summary of Contents for Winco W6010KE-03/A

  • Page 1 MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster.

  • Page 2: Table Of Contents

    Should you experience a problem please follow the Load Types “Troubleshooting Tables” near the end of this manual. PREPARING THE UNIT The warranty listed in the manual describes what you can expect from WINCO should you need service assistance in UNPACKING the future. LUBRICATION OIL RECOMMENDATIONS...

  • Page 3: Safety

    SAFETY This engine generator set has been designed and D. Keep a fire extinguisher nearby and know its proper manufactured to allow safe, reliable performance. Poor use. Fire extinguishers rated ABC by NFPA are maintenance, improper or careless use can result in appropriate.

  • Page 4: Specifications

    SPECIFICATIONS Model W6010DE/I & /J W6010KE-03/A Starting Watts 6,010 Running Watts W6010DE/I & /J 5,160 W6010KE-03/A 5,000 Volts 120/240 Starting Amps 50/25 Running Amps W6010DE/I &/J 43/21.5 W6010KE-03/A 40/20 GENERATOR Generator Manufacturer Mecc Alte Spa Generator Model Number S16W-130/A Part Number...

  • Page 5: Introduction

    INTRODUCTION TESTING POLICY Before any generator is shipped from the factory, it is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current, and frequency are carefully checked. Rated output of generator is based on engineering tests of typical units, and is subject to, and limited by, the temperature, altitude, fuel, and other conditions specified by the manufacturer of applicable engines.

  • Page 6: Unit Capabilities

    UNIT CAPABILITIES Self-exciting generators respond to severe overloading GENERATOR CONNECTIONS differently than utility power. When overloaded, the engine is not able to supply enough power to bring the electric W6010: 120 Volt and 240 Volt receptacles are provided motor up to operating speed. The generator responds with for connection to various loads.

  • Page 7: Preparing The Unit

    1. As you receive your unit, it is critical to check it for any damage. If any damage is noted, it is always easiest to refuse the shipment and let WINCO take care of the freight claim. If you sign for the unit, the transfer of the ownership requires that you file the freight claim 2.

  • Page 8: Battery Installation

    BATTERY INSTALLATION CAUTION: Do NOT open or mutilate the battery. Released This engine generator set is shipped with a battery tie down electrolyte is known to be harmful to the skin and eyes for customer installation. and to be very toxic. A battery presents a risk of electrical shock and high short circuit current.

  • Page 9: Lifting Eye Installation

    Note: always make sure that a new battery is fully charged before installing it on a generator set. All connections must be clean and tight. Check the electrolyte (fluid) in the battery periodically to be sure it is above the plates. Never allow the battery to remain in a discharged condition.

  • Page 10: Initial Start Up

    INITIAL START UP The throttle control on these generators is preset and 5. Return key to 1st position when engine is running (Ref A). locked to operate at 3600 RPM (nominal) with no load speed set at 3690 RPM. Only a trained service technician should be allowed to adjust this speed setting.

  • Page 11: Connecting The Loads

    The NFPA 70 250:34-35 are good technical references. STANDARD PORTABLE GENERATOR Your WINCO portable generator ships with a bonded neutral. You can safely use this generator without external grounding as long as all loads are powered through the receptacle panel.
  • Page 12 1. These engine-generator sets are designed for portable heavy duty commercial use. Receptacles are provided on the control panel to permit 120 and 240 Volt portable appliances and tools to be plugged directly into them. Please note that the 3-wire 240 Volt receptacle(s) on these units are designed to power only 240 Volt tools.

  • Page 13: Yourgen

    YOURGEN The WINCO YourGen meter allows you to see useful The speed of the engine was carefully adjusted at the factory so that the generator produces the proper voltage information about your generator from the front panel by displaying RPMs, Voltage, frequency, load, hours, and and frequency.
  • Page 14 It is good practice to monitor the YourGen Meter when The battery has a 10 year lifetime, in the event you need to applying load. This will ensure the generator is balanced. change the battery, follow these instructions: The battery is located in the control box near potentially live AC terminals.

  • Page 15: Engine Care

    Be sure the oil level is maintained. Fill to the “FULL” mark on the dipstick. Outdoor temperatures determine the proper oil viscosity for the engines. Winco recommends our 5W-30 fully synthetic AIR FILTER oil to give you excellent protection in cold temperatures while maintaining excellent performance in warmer Clean the filtering element with air blast.
  • Page 16 B. Remove the wing nut. C. Remove the filter element. D. Check the rubber seal is undamaged. E. To loosen debris, gently tap the air filter on a hard surface. If the air filter is excessively dirty replace with a new filter.

  • Page 17: Generator Care

    GENERATOR CARE Proper care and maintenance of the generator is necessary to ensure a long trouble free life. EXERCISING THE GENERATOR The generator should be operated every three to four weeks. It should be operated for a period of time sufficient to warm the unit up and to dry out any moisture that has accumulated in the windings.

  • Page 18: Troubleshooting

    TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Out of fuel Start switch in OFF position Fuel Valve turned off Plugged fuel filter Blown fuse in key switch Battery required to open solenoid Voltage too low Engine speed is too low Generator overloaded Defective stator Defective rotor (field)

  • Page 20: Ca Evap Emission Control
