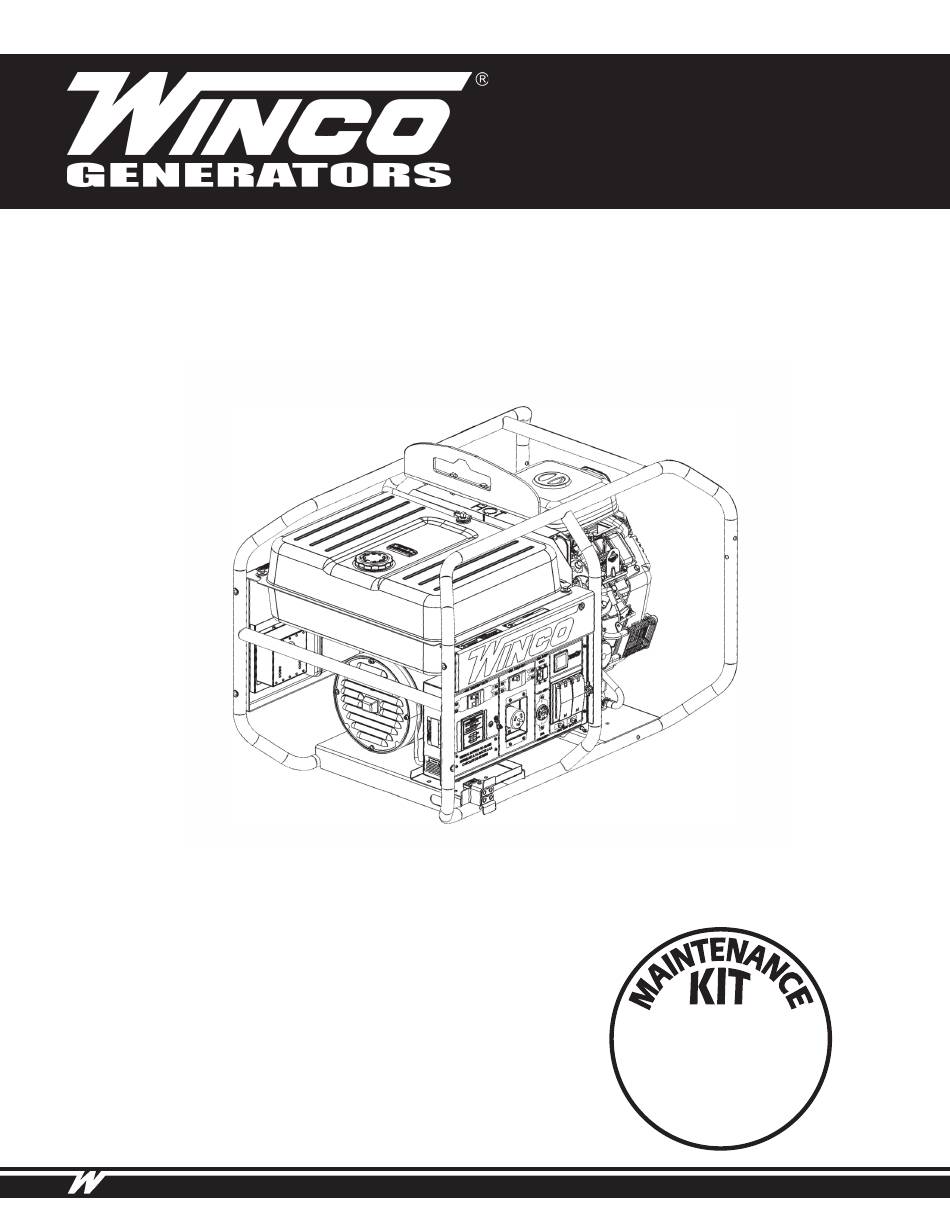

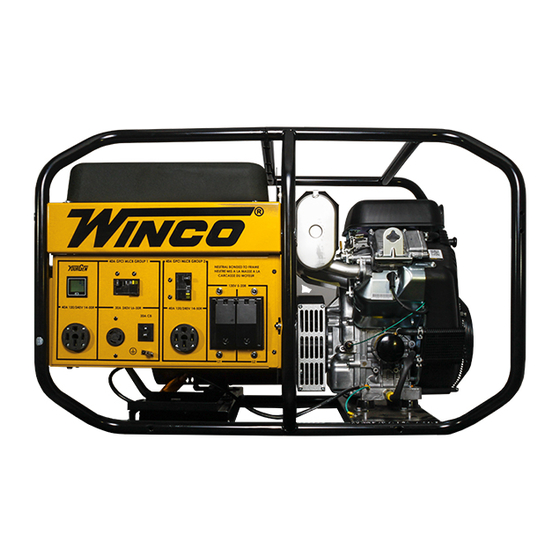

WL22000VE/B
WL22000VE/C
GENERATOR
INSTALLATION & OPERATORS
MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as yours.
If you should ever need to contact us concerning this unit, it will
help us to respond to your needs faster.
MODEL _________________________________________________
16200-011
SERIAL NUMBER _________________________________________
PURCHASE DATE _________________________________________
DEALER NAME ___________________________________________
DEALER PHONE # ________________________________________
www.wincogen.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winco WL22000VE/B
Summary of Contents for Winco WL22000VE/B
- Page 1 MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster.
-
Page 2: Table Of Contents
Should you experience a problem please follow the PREPARING THE UNIT “Troubleshooting Tables” near the end of this manual. The warranty listed in the manual describes what you can UNPACKING expect from WINCO should you need service assistance in LUBRICATION the future. OIL RECOMMENDATIONS OIL ALERT SYSTEM... -
Page 3: Safety Information
SAFETY INFORMATION This engine generator set has been designed and WARNING: FIRE HAZARD manufactured to allow safe, reliable performance. Poor maintenance, improper or careless use can result in Gasoline and other fuels present a hazard of possible potentially deadly hazards; from electrical shock, exhaust explosion and/or fire. -
Page 4: Specifications
SPECIFICATIONS GENERATOR Model WL22000VE/B WL22000VE/C Surge Watts 22,000 Continuous Watts 19,000 Volts 120/240 Amps 166.6/83.3 Generator Manufacturer Mecc Alte Generator Model Number AME3 Part Number 16346-031 Rotor Resistance 9.743 Ohms @ 20°C Stator Resistance 0.366 Ohms @ 20°C Exciter Rotor Resistance 1.453 Ohms @ 20°C... -
Page 5: Introduction
INTRODUCTION TESTING POLICY Before any generator is shipped from the factory, it is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current, and frequency are carefully checked. Rated output of generator is based on engineering tests of typical units, and is subject to, and limited by, the temperature, altitude, fuel, and other conditions specified by the manufacturer of applicable engines. -
Page 6: Unit Capabilities
UNIT CAPABILITIES motors, turn all other electrical loads off and if possible GENERATOR CONNECTIONS reduce the load on the electric motor. WL22000VE: 120 Volt and 240 Volt receptacles are provided for connection to various loads. The following diagram represents this 19,000 watt (rated output) generator. -
Page 7: Preparing The Unit
1. As you receive your unit, it is critical to check it for any damage. If any damage is noted, it is always easiest to refuse the shipment and let WINCO take care of the freight claim. If you sign for the unit, the transfer of the ownership requires that you file the freight claim 2. -
Page 8: Battery Installation
BATTERY CHARGING Never use gasoline that has been stored for an extended period of time as the fuel will lose its volatile properties and you will be left with varnish residue. The varnish Units have a small flywheel charger built into the engine like substance will clog the carburetor and will not burn flywheel assembly for recharging the starting battery. -
Page 9: Initial Start Up
INITIAL START UP B. Use only summer blended gasoline. Using gasoline left The throttle control on these generators is preset and over from winter may cause the unit to vapor lock. locked to operate at 3600 RPM (nominal) with no load speed set at 3690 RPM. -
Page 10: Connecting The Loads
STANDARD PORTABLE GENERATOR Your WINCO portable generator ships with a bonded neutral. You can safely use this generator without external grounding as long as all loads are powered through the receptacle panel. - Page 11 2. If the generator set is connected to an existing distribution system, a fully isolated manual transfer switch must be installed. The transfer switch must be compatible with GFCI protected generators. WINCO recommends Reliance manual transfer switches. The transfer switch prevents damage to the generator and the other circuit components if main line power is restored while the generator is connected.
-
Page 12: Yourgen
YOURGEN The speed of the engine was carefully adjusted at the The WINCO YourGen meter allows you to see useful factory so that the generator produces the proper voltage information about your generator from the front panel and frequency. For normal usage, the speed setting should by displaying RPMs, Voltage, frequency, load, hours, and not be changed. - Page 13 120 Volt and 120/240 Volt receptacles are provided for spark plug wire and then open the receptacle panel. Locate connection to various loads. the backside of the YourGen meter. Gently pry the back plate off using the slot located on top. The following diagram represents this 19,000 watt (rated output) generator.
-
Page 14: Engine Care
Outdoor temperatures determine the proper oil viscosity for (not to exceed 30 psi) the engines. Winco recommends our 5W-30 fully synthetic to clean the filter. Always blow the compressed air from oil to give you excellent protection in cold temperatures inside to the outside. -
Page 15: Carbon Canister
CARBON CANISTER Designed to collect, store, and dispose of fuel vapors created in the fuel tank/fuel system. The canister should last the life of the unit as long as it stays dry. OPM-140/E... -
Page 16: Generator Care
GENERATOR CARE AVR WIRING Proper care and maintenance of the generator is necessary to ensure a long trouble free life. Automatic Voltage Regulator EXERCISING THE GENERATOR The following is a list of connections on the AVR. These have been factory set and other than voltage adjustment, should never be changed. -
Page 17: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Fouled spark plug Out of fuel Start switch in OFF position Fuel Valve turned off Plugged fuel filter Blown fuse in key switch Voltage too low Engine speed is too low Generator overloaded Defective stator Defective rotor (field) -
Page 18: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM WL22000VE/B OPM-140/E... -
Page 19: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM WL22000VE/C OPM-140/E... -
Page 20: Ca Evap Emission Control
WINCO written instructions and applicable codes. WINCO’s sole liability, and Purchaser’s sole remedy for a failure under this warranty, shall be limited to the repair of the product. At WINCO’s option, material found to be defective in material or workmanship under normal use and service will be repaired or replaced.
