KIT COMPONENTS

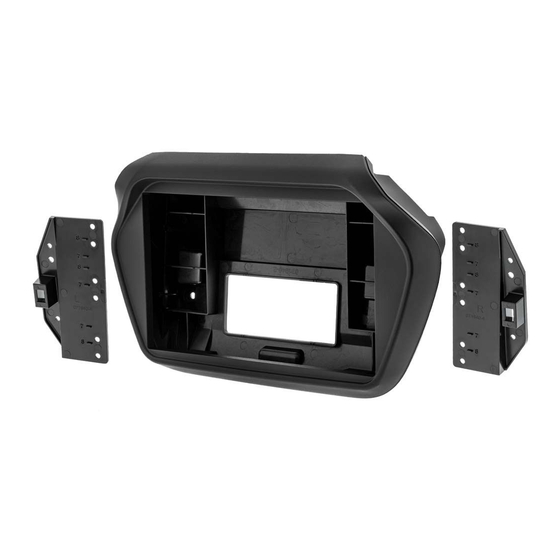

•A) Display screen housing • B) Display screen trim bezel • C) Display screen brackets • D) Panel clips (6) • E) Phillips screws (4)
A
B
Metra. The World's Best Kits.
®
Chevrolet Camaro
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Painted scratch resistant matte black to match the factory finish
C
MetraOnline.com
2016-Up
D
E
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
108-GM3B
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly ................................................... 2
Kit Assembly .............................................................3
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Refer to axxessinterfaces.com for
wiring harness options
Antenna Adapter: 40-EU55 (sold separately)
Steering Wheel Control Interface: ASWC-1
(sold separately)
RGB Extension Cable: Pioneer part # CD-RGB150E
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 1/21/20 INST108-GM3B
