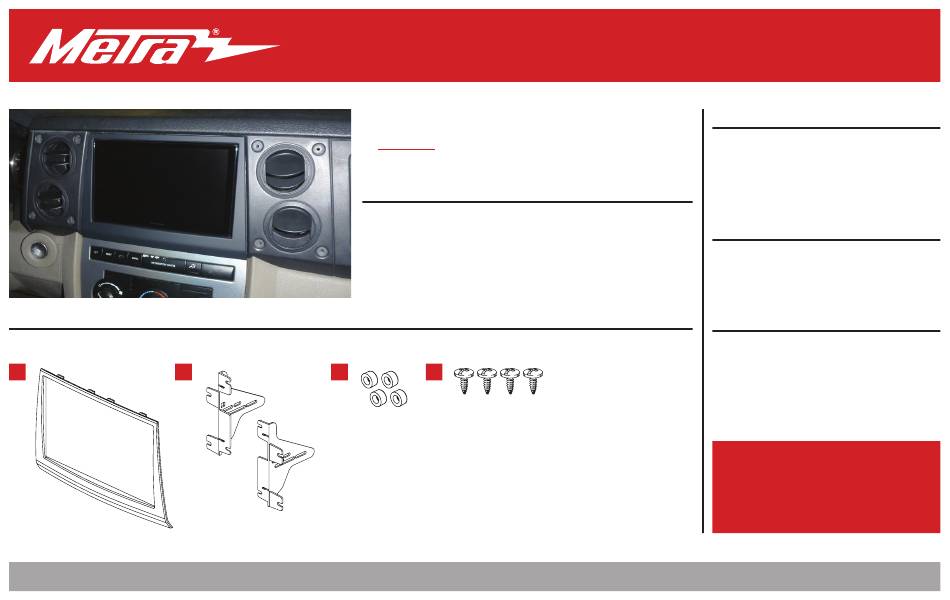

Metra Electronics 108-CH4 Installation Instructions

Download this manual

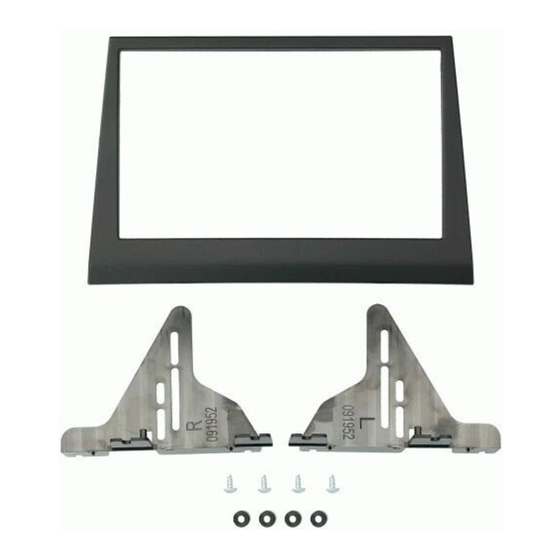

KIT COMPONENTS

• A) Radio bezel • B) Radio brackets • C) Retaining caps • D) Philips screws (4)

Metra. The World's Best Kits.

Jeep Commander

Visit

MetraOnline.com

for more detailed information about the product and up-to-date vehicle

specific applications

KIT FEATURES

• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio

• Painted to match the factory finish:

• 108-CH4G - Gray

• 108-CH4DK - Dark Khaki

MetraOnline.com

2006-2007

(without NAV)

108-CH4

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: CHTO-01

Antenna Adapter: 40-CR10

TOOLS REQUIRED

• 9/32" Socket wrench • 5mm Allen screwdriver

• Cutting tool • Panel removal tool

• Phillips screwdriver • Solder gun

Attention!

Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

REV. 4/14/20 INST108-CH4

Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 4/14/20 INST108-CH4...
Page 2 DASH DISASSEMBLY 1. Remove (16) 5mm Allen screws securing (4) screws (4) screws (4) screws (4) screws the dashboard trim panel. (Figure A) 2. Unclip and remove the dashboard trim panel. (Figure B) 3. Remove (4) 9/32” screws securing the radio.
Page 3 KIT PREPARATION KIT ASSEMBLY From the factory dashboard trim panel: Attention! For steps 1 and 2, reference the installation manual provided with the radio 1. Using either a solder gun or cutting tool, for which hardware to use. The display remove the plastic welds holding the screen and radio chassis use two different factory radio bezel in place.
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 4/14/20 INST108-CH4...
