Metra Electronics 108-GM2B Installation Instructions

Advertisement

Quick Links

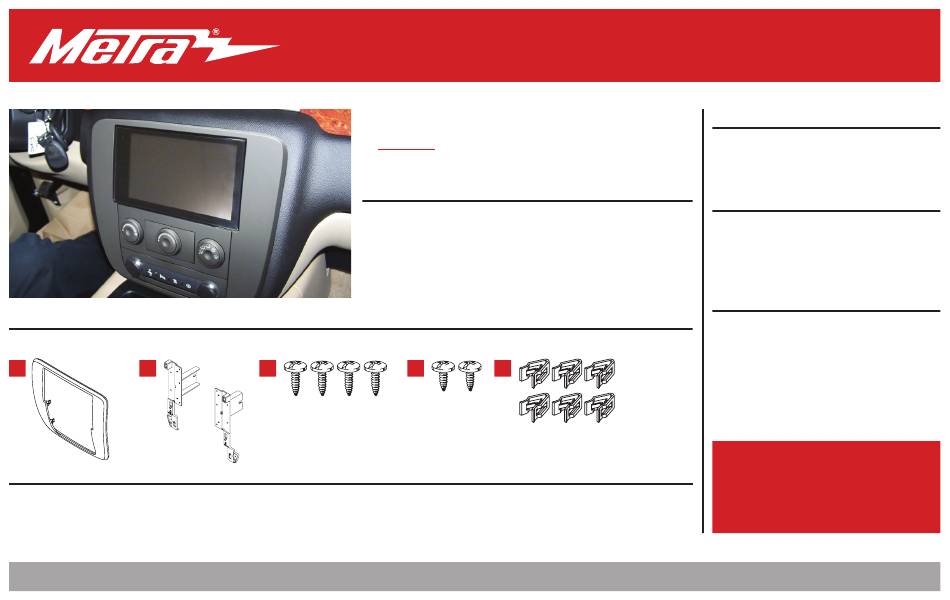

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) #8 x 1/2" Phillips screws (4) • #8 x 3/8" Phillips screws (2) • E) Panel clips (6)
A
B
APPLICATIONS
Chevrolet
Silverado 2500/3500
Avalanche .......................2007-2013
Suburban ........................2007-2014
Silverado
(1) (2)
...................2007-2013
Tahoe .............................2007-2014
Metra. The World's Best Kits.
®
GM SUV/Truck
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Painted matte black
C
D
........... 2014
GMC
(2)
Sierra
.........................2007-2013
(1) (2)
Sierra 2500/3500
(2)
MetraOnline.com
2007-2014
E
Yukon/YukonXL ..............2007-2014
(1) Excluding Classic trim models
................. 2014
(2) With full center console
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
108-GM2B
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly ................................................... 2
Kit Assembly .............................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Please visit metraonline.com
for wiring harness options
Antenna Adapter: • 40-CR10 • 40-EU10 (w/ nav 12-14)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 6/4/20 INST108-GM2B

Advertisement

loading
Need help?

Need help?

Do you have a question about the 108-GM2B and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 108-GM2B

  • Page 1 (1) (2) (1) Excluding Classic trim models key to ignition. Silverado (1) (2) ....2007-2013 Tahoe ......2007-2014 Sierra 2500/3500 ....2014 (2) With full center console Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 6/4/20 INST108-GM2B...
  • Page 2 DASH DISASSEMBLY 1. Unclip and remove the radio trim panel. 3. Remove (4) 9/32” screws securing the (Figure A) radio. Slide the radio out, then unplug and remove the radio. (Figure C) 2. Remove (4) 9/32” screws securing the 4. Enlarge the mounting holes from the switch panel and climate controls.
  • Page 3 (Figure B) (Figure A) 8. Reassemble the dash in reverse order of 3. Locate the factory wiring harness and disassembly using the 108-GM2B radio antenna connector in the dash. Metra trim panel to complete the installation recommends using the proper mating (Figure E) adapter from Metra or AXXESS.
  • Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 6/4/20 INST108-GM2B...
